Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE  in Battery.
  2. Remove the throttle body air inlet duct. Refer to ENGINE CONTROLS - REMOVAL & INSTALLATION & OVERHAUL  in Removal and Installation in Engine Performance.
  3. Remove the cruise control cable from the engine and reposition the cable away from the engine. Refer to CRUISE CONTROL CABLE REPLACEMENT  in Cruise Control.
    CAUTION: In order to avoid possible injury or vehicle damage, always replace the accelerator control cable with a NEW cable whenever you remove the engine from the vehicle.
    CAUTION: In order to avoid cruise control cable damage, position the cable out of the way while you remove or install the engine. Do not pry or lean against the cruise control cable and do not kink the cable. You must replace a damaged cable.
  4. Remove and discard the accelerator control cable from the engine and reposition the cable away from the engine. Refer to ENGINE CONTROLS - REMOVAL & INSTALLATION & OVERHAUL  in Removal and Installation in Engine Performance.
  5. Drain the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM  in Engine Cooling.
  6. Disconnect the radiator hoses from the engine. Refer to RADIATOR HOSE REPLACEMENT - INLET  and RADIATOR HOSE REPLACEMENT - OUTLET  in Engine Cooling.
  7. Disconnect the heater hoses from the engine. Refer to HEATING, VENTILATION AND AIR CONDITIONING  or HEATING, VENTILATION AND AIR CONDITIONING  and HEATING, VENTILATION AND AIR CONDITIONING  or HEATING, VENTILATION AND AIR CONDITIONING  in HVAC Systems - Manual.
  8. Remove the engine mount struts. Refer to ENGINE MOUNT STRUT REPLACEMENT - LEFT   and ENGINE MOUNT STRUT REPLACEMENT - RIGHT   .

    Important:  Relieve the fuel pressure. Refer to ENGINE CONTROLS - REMOVAL & INSTALLATION & OVERHAUL  in Basic Diagnostic Procedures in Engine Performance.

  9. Disconnect the fuel lines at quick connects. Refer to ENGINE CONTROLS - REMOVAL & INSTALLATION & OVERHAUL  in Removal and Installation in Engine Performance.
  10. Remove the upper engine wiring harness from engine and transmission.
  11. Remove the vacuum hoses from the engine. Refer to VACUUM DIAGRAMS  in Vacuum Diagrams in Engine Performance.
  12. Remove the vacuum brake booster hose.
  13. Remove the automatic transaxle range selector cable. Refer to AUTOMATIC TRANSMISSION RANGE SELECTOR CABLE REPLACEMENT  in Automatic Transaxle - 4T65-E.
  14. Raise and support the vehicle. Refer to JACKING AND LIFTING in General Information.
  15. Drain the engine oil. Refer to ENGINE OIL AND OIL FILTER REPLACEMENT   .
  16. Remove the lower engine wiring harness from engine and transmission.
  17. Remove the three-way catalytic converter. Refer to CATALYTIC CONVERTER REPLACEMENT  in Engine Exhaust.
  18. Remove rear propshaft. Refer to PROPELLER SHAFT REPLACEMENT  in Driveline/Axle-Propeller Shaft. (AWD Only)
  19. Remove the front tires and wheels. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION  in Tires and Wheels.
  20. Remove lower radiator baffle assembly.
  21. Remove the engine splash shields. Refer to SPLASH SHIELD REPLACEMENT - ENGINE  in Body Front End.
  22. Remove the stabilizer shaft links from the lower control arms. Refer to FRONT SUSPENSION SYSTEM  in Front Suspension.
  23. Remove the tie rod ends from the steering knuckles. Refer to STEERING KNUCKLE REPLACEMENT  in Front Suspension.
  24. Remove the lower ball joints from the knuckles. Refer to LOWER BALL JOINT REPLACEMENT  in Front Suspension.
  25. Remove the transaxle cooler lines and bracket from the transaxle. Refer to AUTOMATIC TRANSMISSION OIL COOLER HOSE REPLACEMENT  in Automatic Transaxle - 4T65-E.
  26. Remove A/C compressor bolts and position compressor aside.
  27. Disconnect the drive axles from the transaxle. Refer to AXLE SHAFT  in Drive Axle.
  28. Secure the drive axles to the steering knuckle/struts.
    CAUTION: Failure to disconnect the intermediate shaft from the rack and pinion steering gear stub shaft can result in damage to the steering gear and/or intermediate shaft. This damage may cause loss of steering control which could result in an accident and possible personal injury
  29. Remove the intermediate shaft pinch bolt from the steering gear. Refer to INTERMEDIATE STEERING SHAFT REPLACEMENT  in Steering Wheel and Column.
  30. Lower the vehicle until the frame contacts the transaxle table.
  31. Remove the frame bolts.
  32. Raise the vehicle in order to separate the powertrain/frame assembly from the vehicle.
  33. Remove starter. Refer to STARTER  in Starter.
  34. Remove the engine flywheel to torque converter bolts.

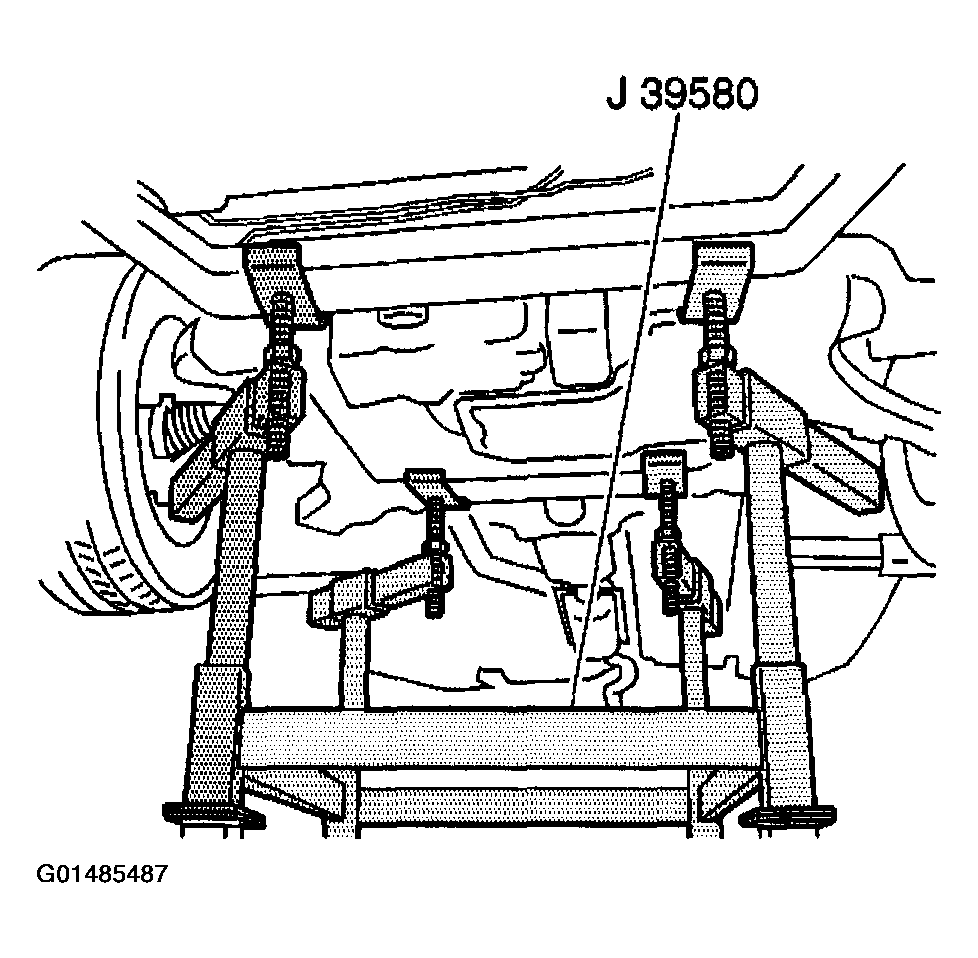

    Fig 1: Installing Engine Hoist To Engine
    G01485487Courtesy of GENERAL MOTORS CORP.
  35. Install engine hoist to engine.
  36. Remove engine mount to frame nuts.
  37. Remove the engine-to-transaxle bolts (3, 4, 5, 6) and studs (1, 2).
  38. Separate and remove the engine from the transaxle/frame and install to the engine stand.

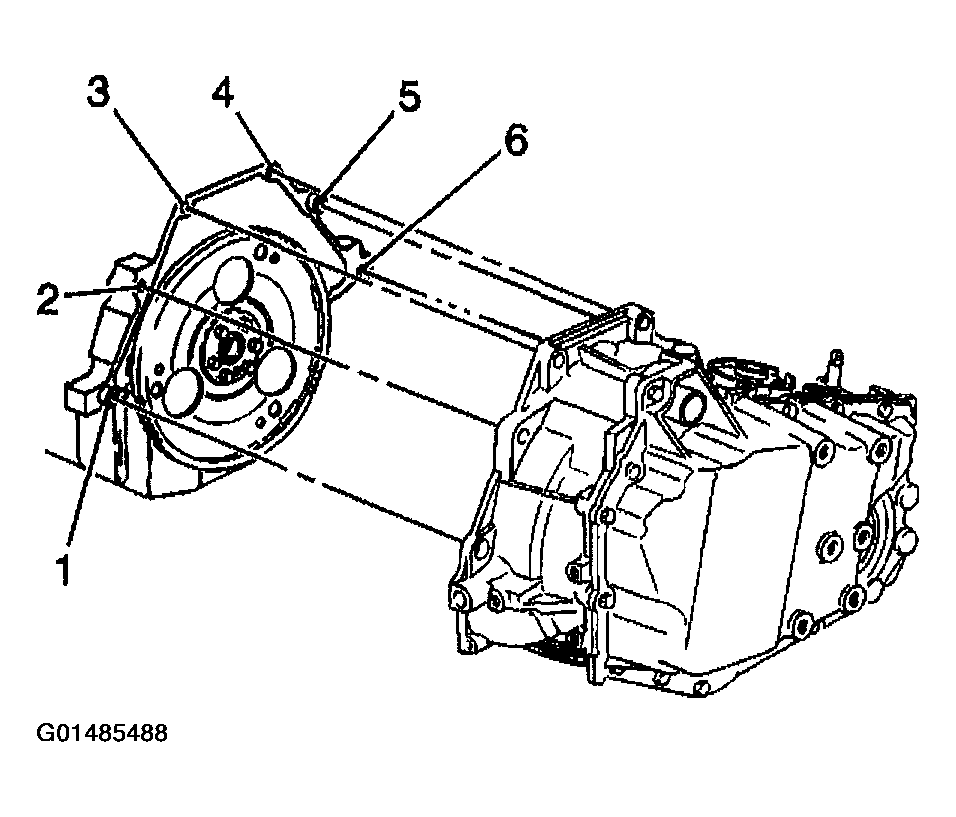

    Fig 2: Removing Engine-To-Transaxle Bolts And Studs
    G01485488Courtesy of GENERAL MOTORS CORP.
