Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery negative cable from the battery. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE  in Battery.
  2. Raise and suitably support the vehicle. Refer to JACKING AND LIFTING in General Information.
  3. Remove the electrical connector from the engine oil pressure sensor.
  4. Remove the engine oil pressure switch.

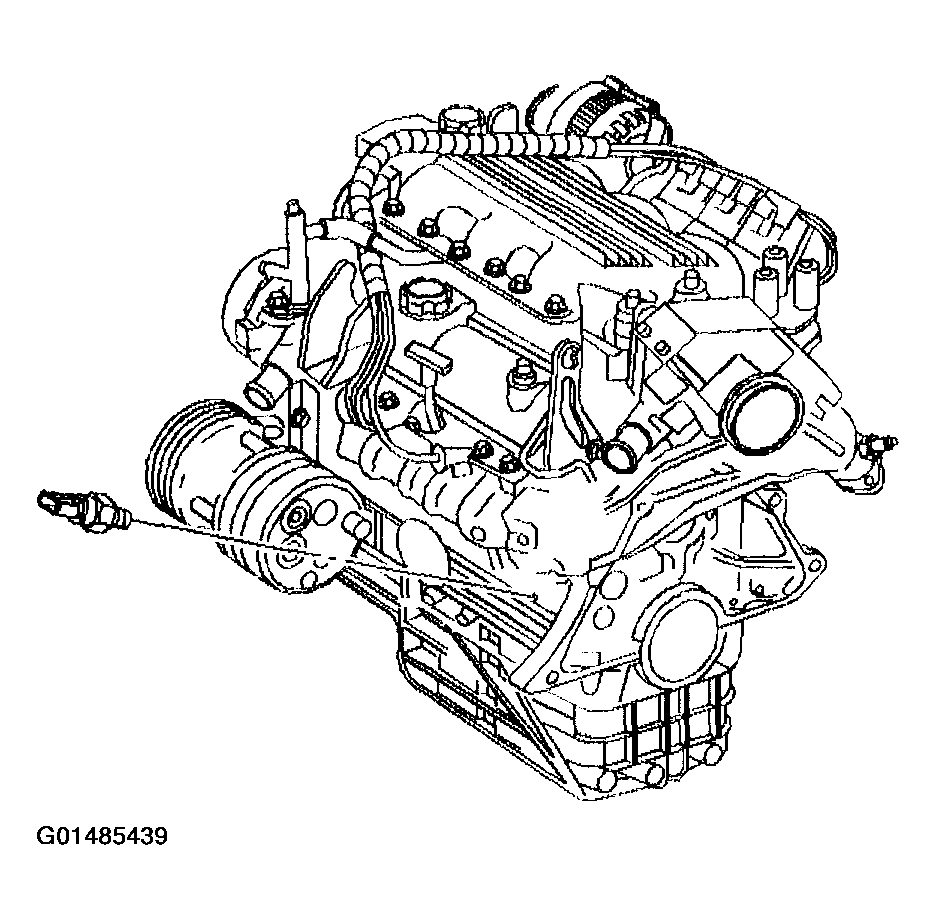

    Fig 1: Removing Engine Oil Pressure Switch
    G01485439Courtesy of GENERAL MOTORS CORP.
