Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bolt and the nut from the engine mount strut at the right engine mount strut bracket on the engine.

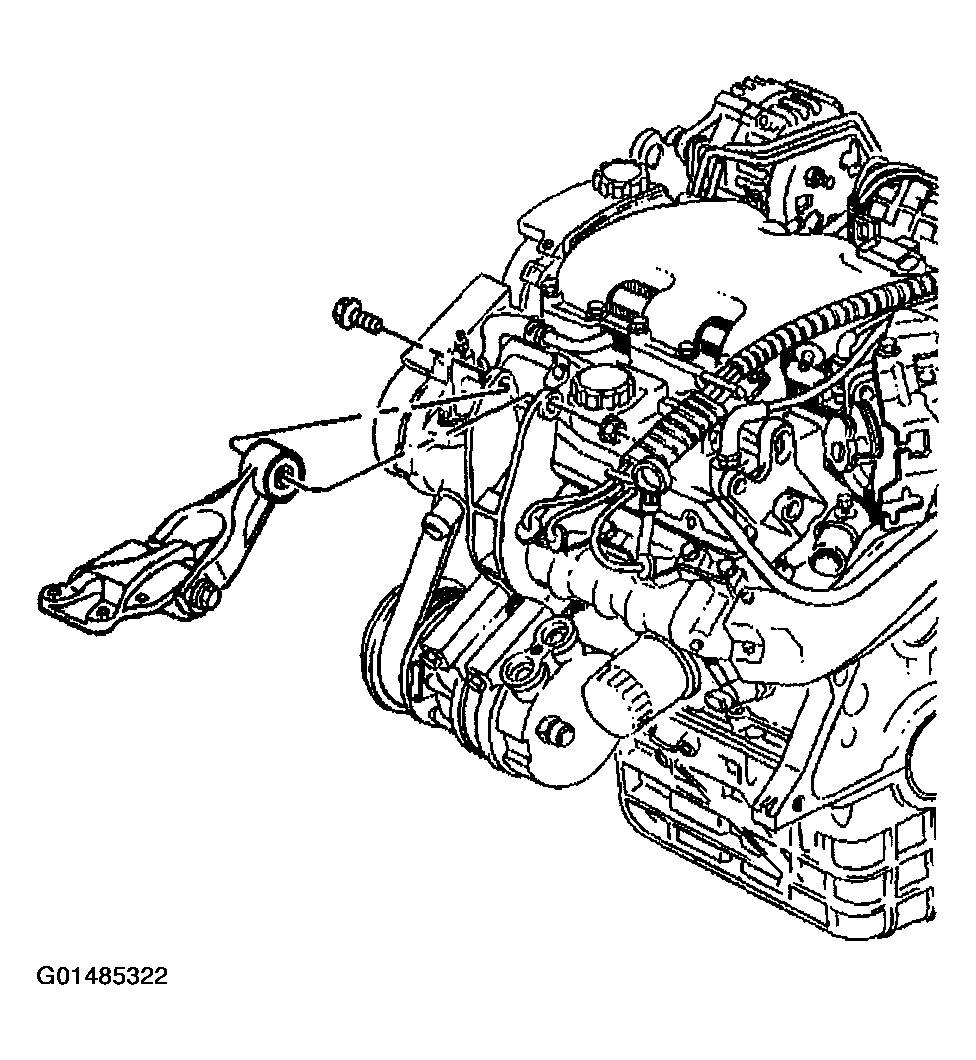

    Fig 1: Removing Engine Mount Strut - Right
    G01485322Courtesy of GENERAL MOTORS CORP.
  2. Remove the bolt and the nut from the engine mount strut at the engine mount strut bracket on the upper radiator support.
  3. Remove the engine mount strut.
  4. Inspect the rubber in the engine mount strut for the following conditions:
    • Hardness
    • Splitting
    • Cracking

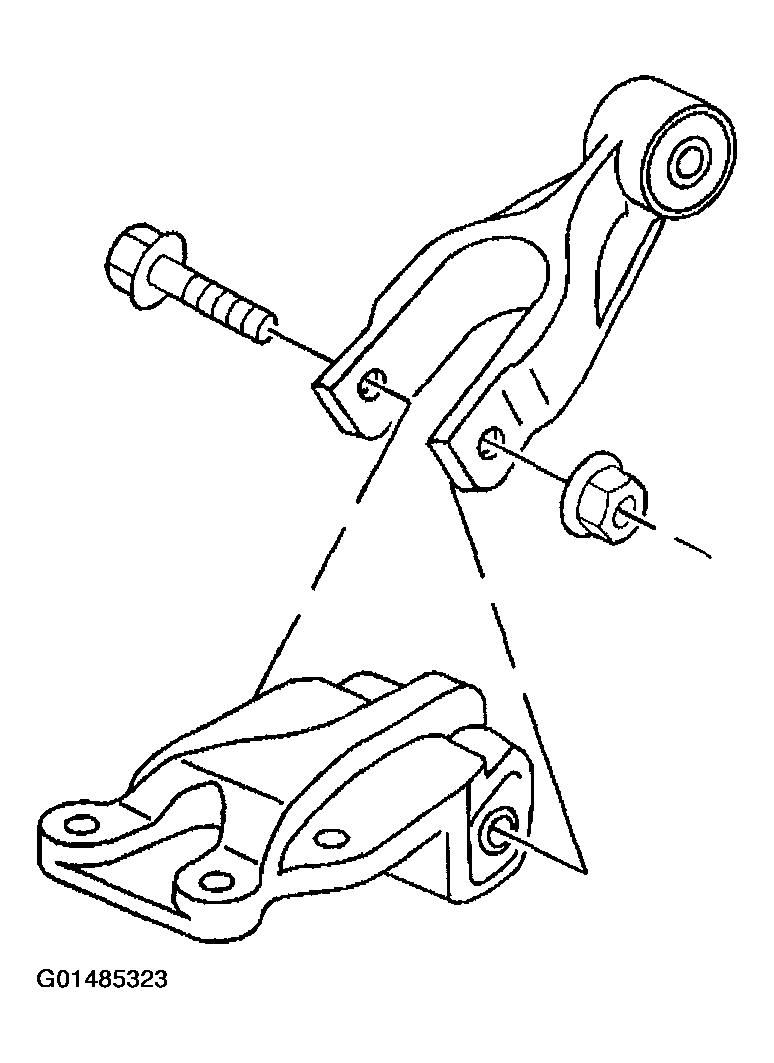

    Fig 2: Removing Bolt And Nut From Engine Mount Strut - Right
    G01485323Courtesy of GENERAL MOTORS CORP.
