Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bolt and the nut from the engine mount strut at the left engine mount strut bracket on the engine.

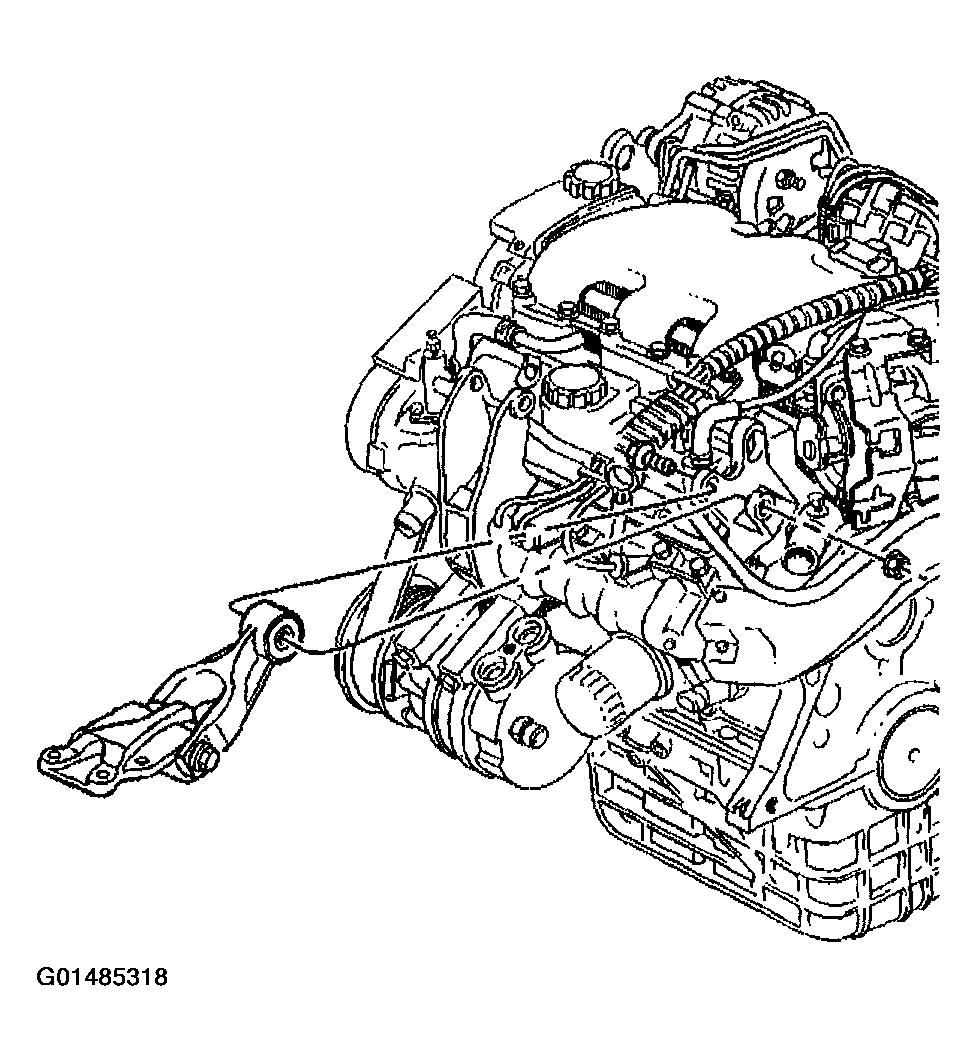

    Fig 1: Removing Engine Mounting Strut
    G01485318Courtesy of GENERAL MOTORS CORP.
  2. Remove the bolt and the nut from the engine mount strut at the engine mount strut bracket on the upper radiator support.
  3. Remove the engine mount strut.
  4. Inspect the rubber in the engine mount strut for the following conditions:
    • Hardness
    • Splitting
    • Cracking

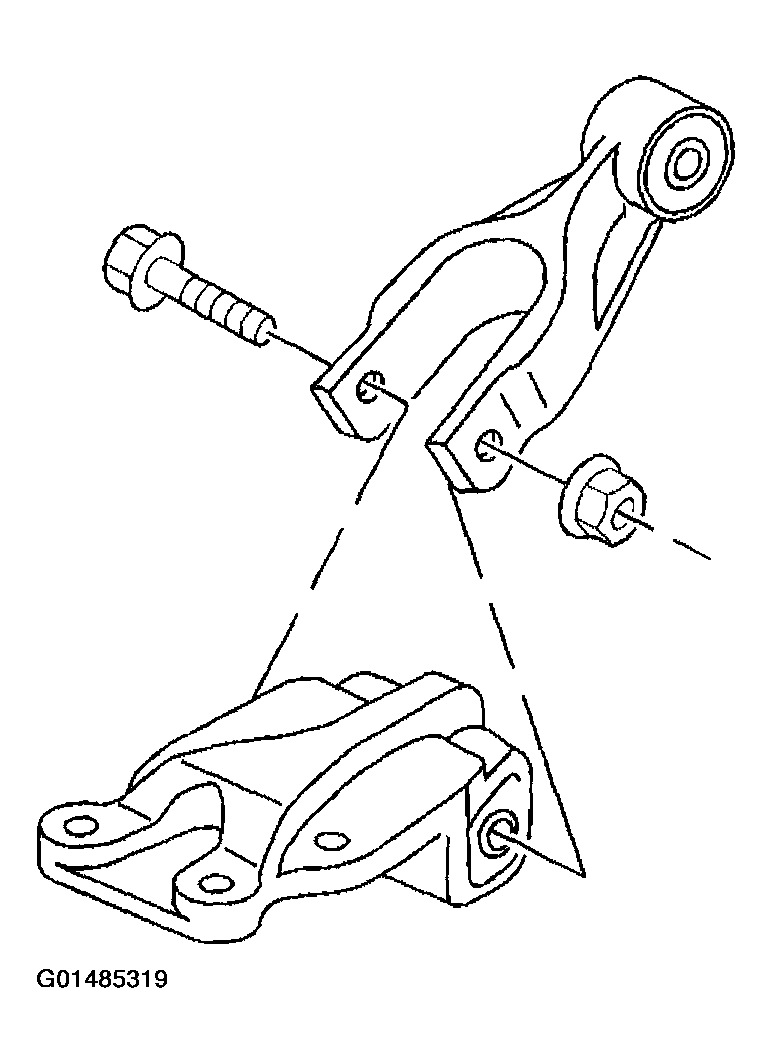

    Fig 2: Removing Nut And Bolt From Engine Mount
    G01485319Courtesy of GENERAL MOTORS CORP.
