Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine mount strut.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bolt and the nut to the engine mount strut at the engine mount strut bracket on the upper radiator support.

    Tighten

    Tighten the engine mount strut bolt to 48 N.m (35 lb ft).

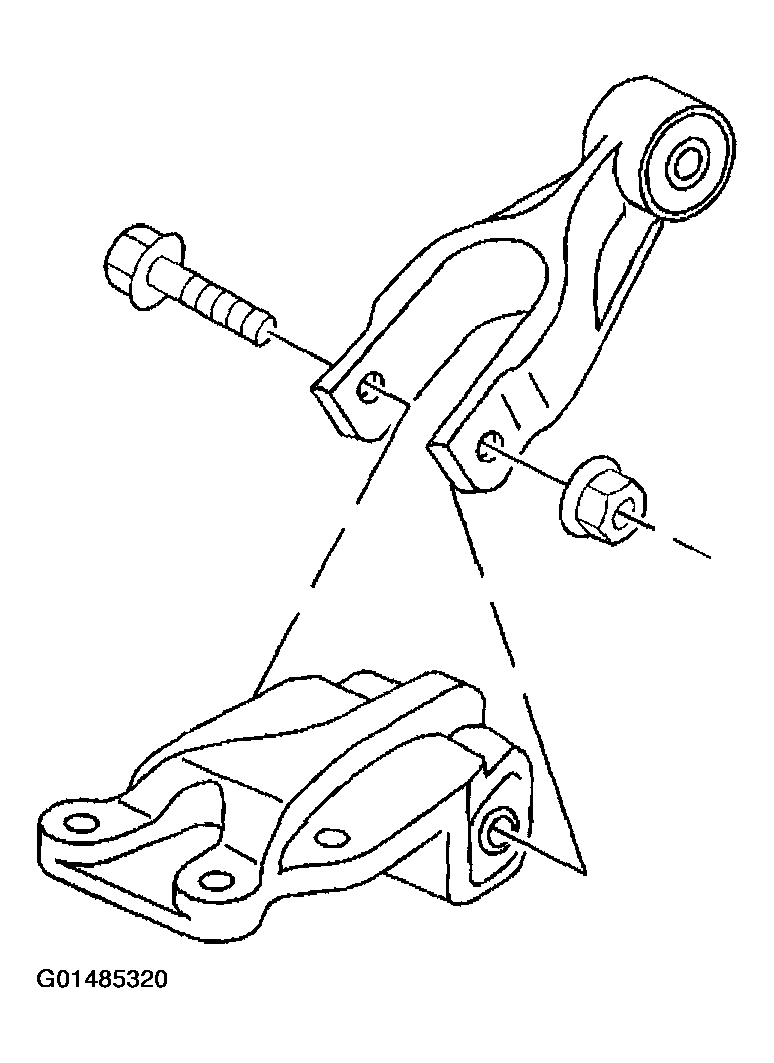

    Fig 1: Installing Nut And Bolt To Engine Mount
    G01485320Courtesy of GENERAL MOTORS CORP.
  3. Install the bolt and the nut to the engine mount strut at the left engine mount strut bracket on the engine.

    Tighten

    Tighten the engine mount strut nut to 48 N.m (35 lb ft).

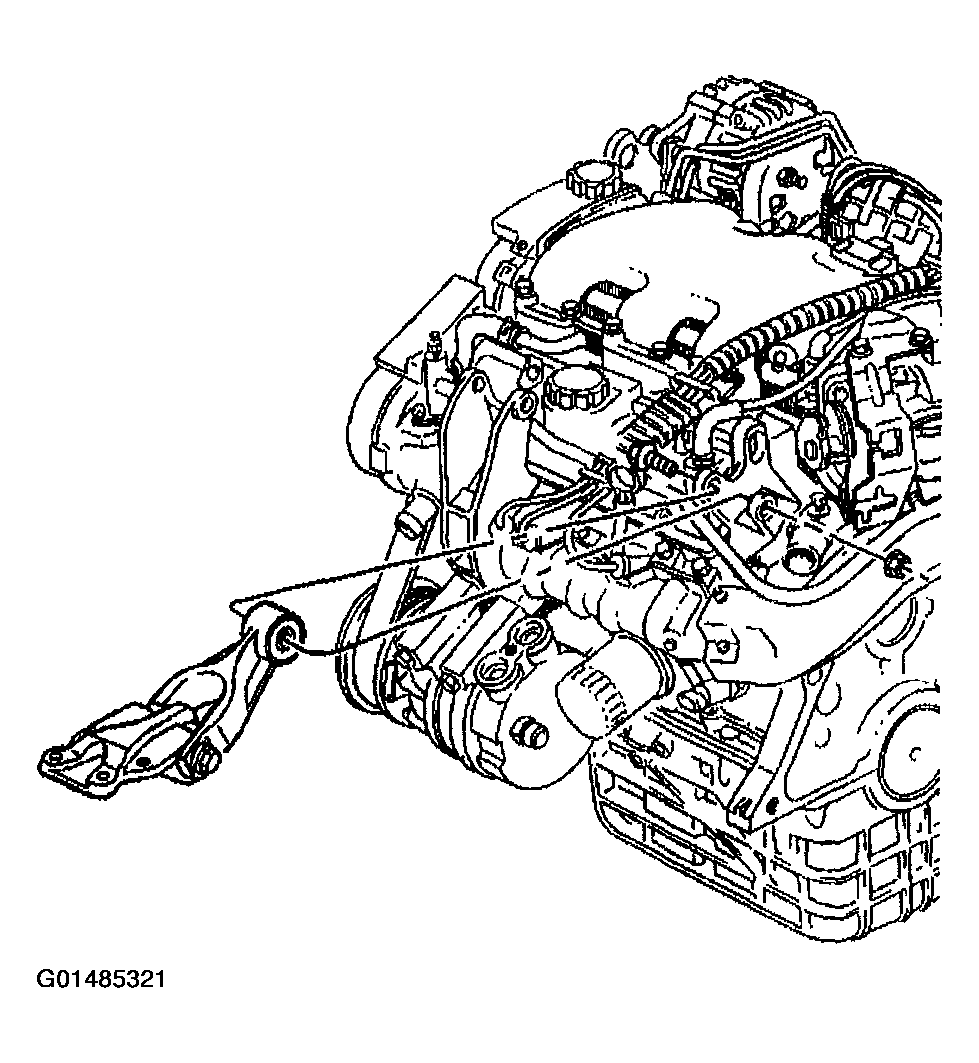

    Fig 2: Installing Engine Mounting Strut
    G01485321Courtesy of GENERAL MOTORS CORP.
