Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine mount strut from the engine mount strut bracket at the upper radiator support. Refer to ENGINE MOUNT STRUT REPLACEMENT - LEFT   and/or ENGINE MOUNT STRUT REPLACEMENT - RIGHT   .

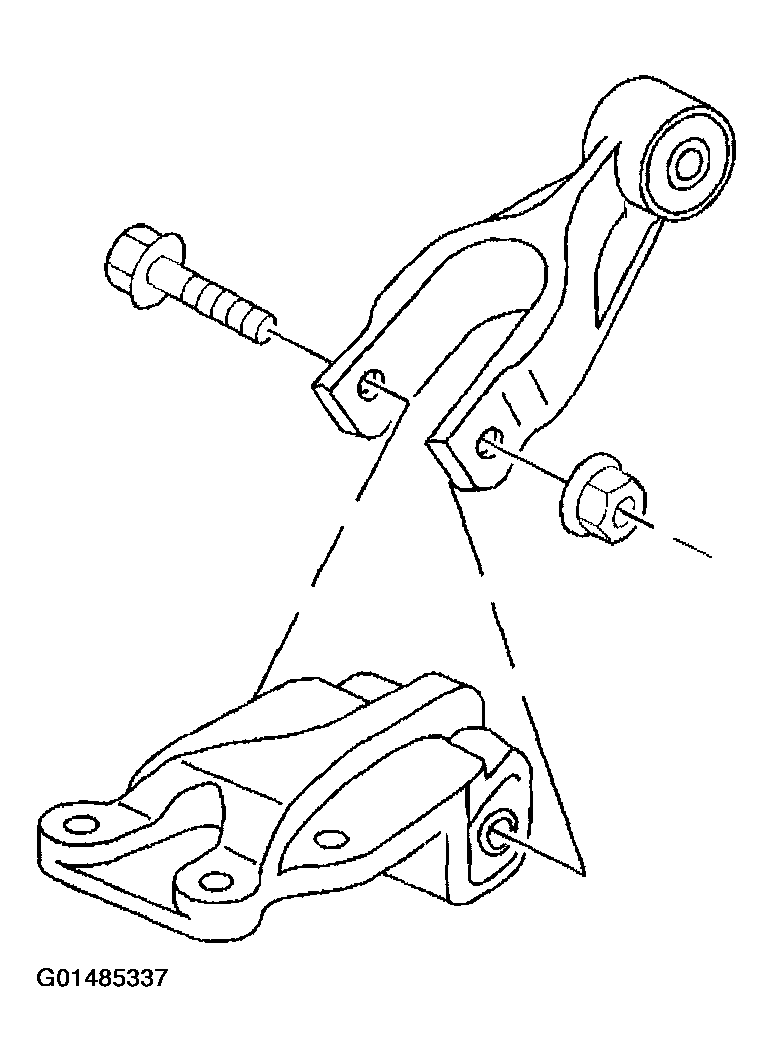

    Fig 1: Removing Engine Mount Strut From Engine Mount Strut Bracket At Upper
    G01485337Courtesy of GENERAL MOTORS CORP.
  2. Remove the engine mount strut bracket bolts from the engine mount strut bracket.
  3. Remove the engine mount strut bracket from the upper radiator support.

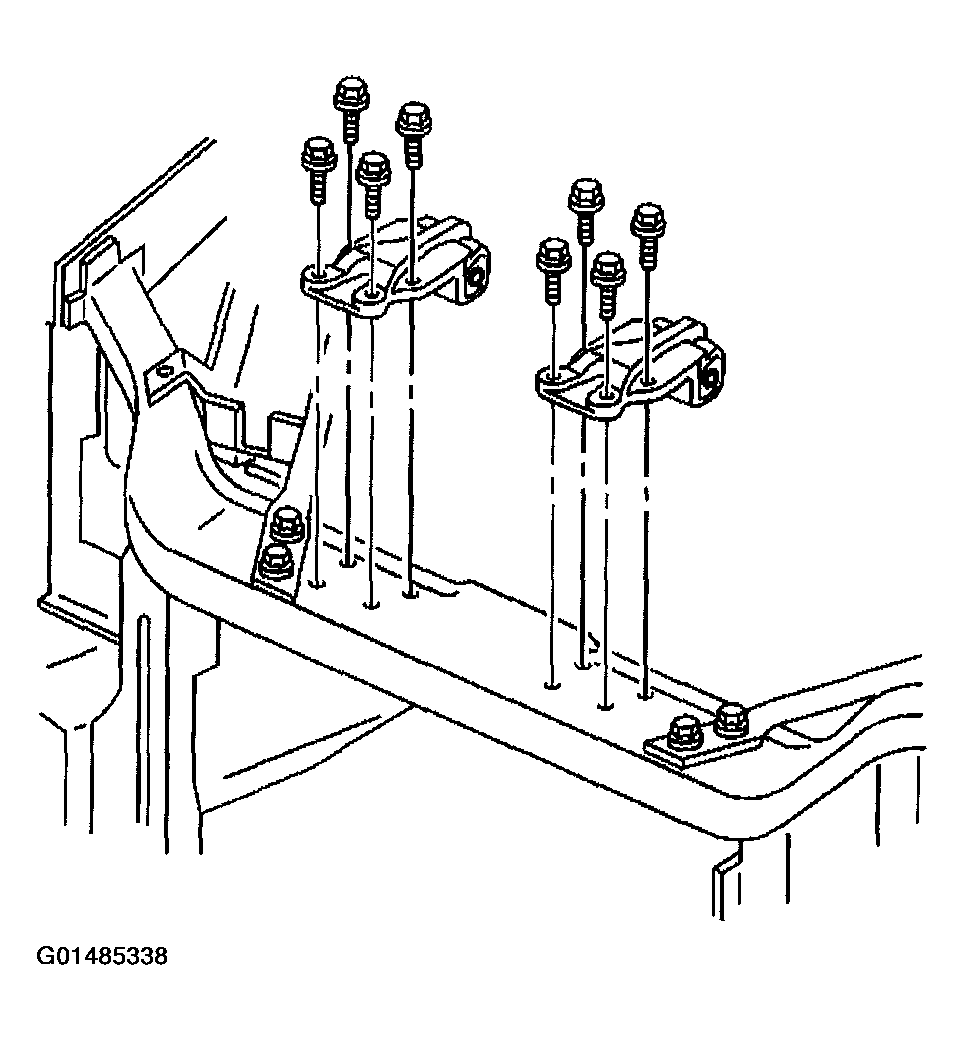

    Fig 2: Removing Engine Mount Strut Bracket From Upper Radiator Support
    G01485338Courtesy of GENERAL MOTORS CORP.
