Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the engine mount strut bracket over the upper radiator support. Ensure that the engine mount strut bracket and the engine mount strut are aligned to the proper holes of the upper radiator support.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the engine mount strut bracket bolts to the engine mount strut bracket.

    Tighten

    Tighten the engine mount strut bracket bolts to 28 N.m (21 lb ft).

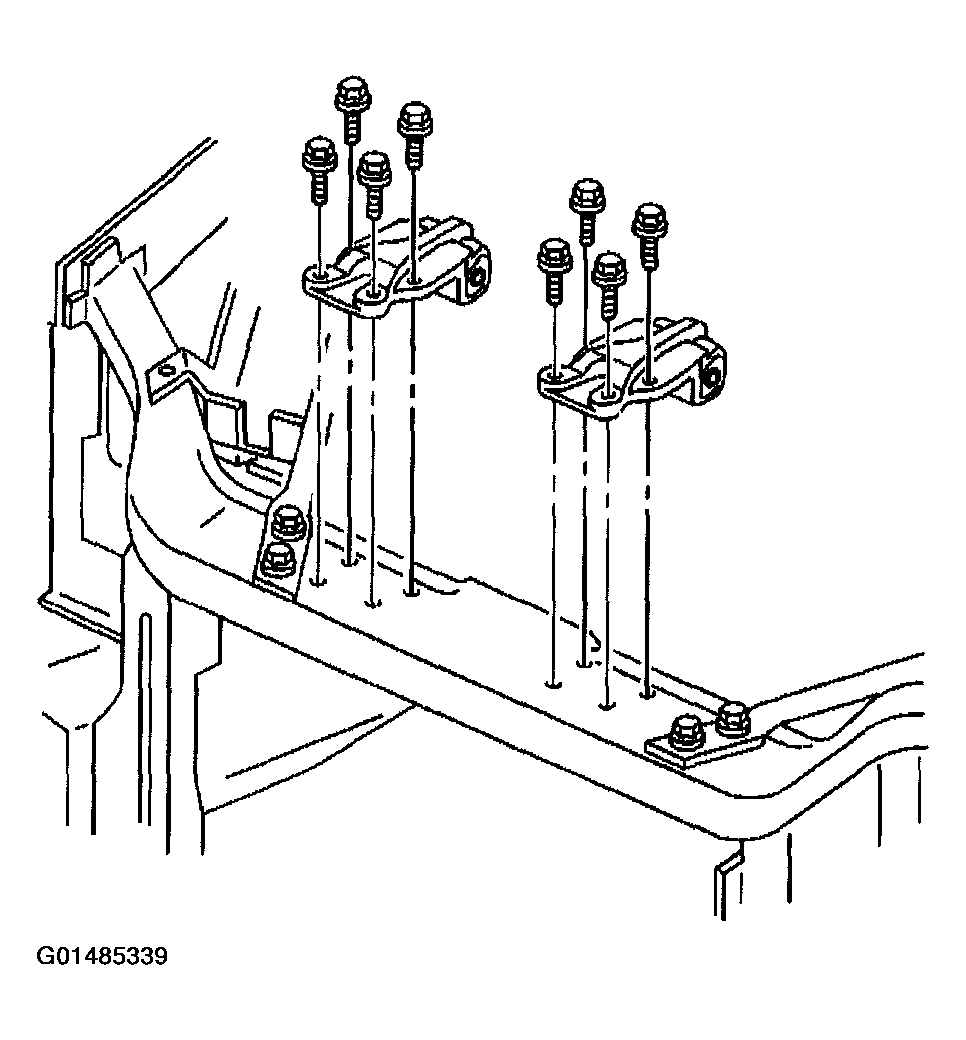

    Fig 1: Installing Engine Mount Strut Bracket From Upper Radiator Support
    G01485339Courtesy of GENERAL MOTORS CORP.
  3. Install the engine mount strut to the engine mount strut bracket at the upper radiator support. Refer to ENGINE MOUNT STRUT REPLACEMENT - LEFT  and/or ENGINE MOUNT STRUT REPLACEMENT - RIGHT  .

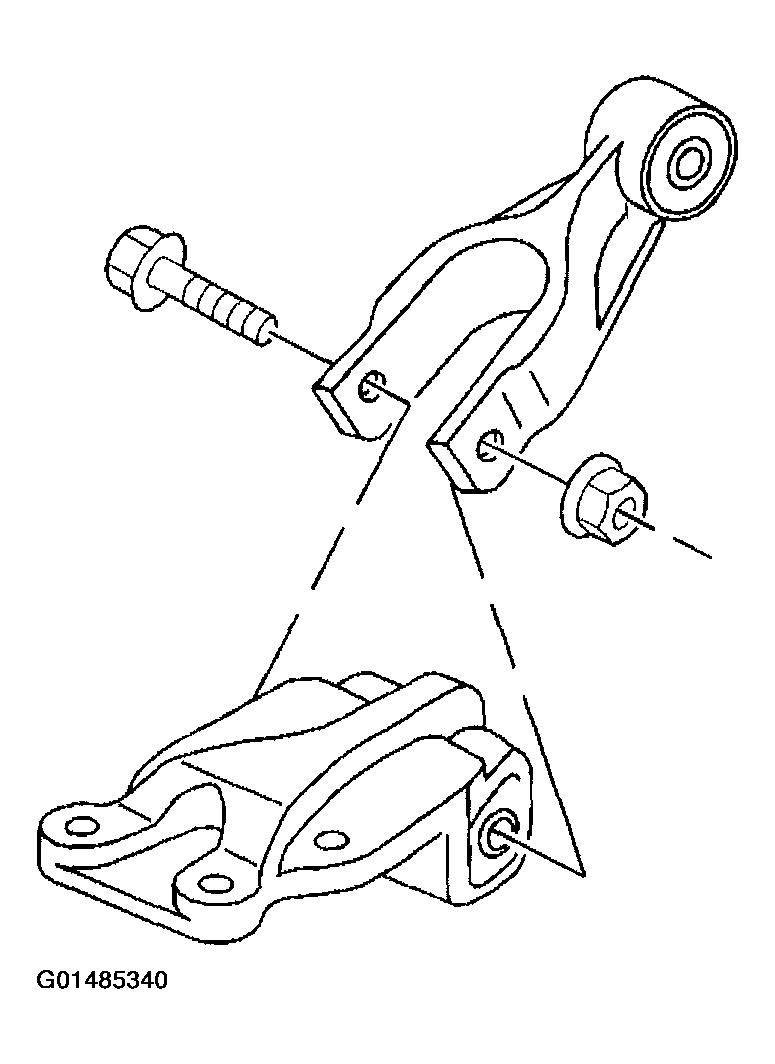

    Fig 2: Installing Engine Mount Strut To Engine Mount Strut Bracket
    G01485340Courtesy of GENERAL MOTORS CORP.
