Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right engine mount strut from the right engine mount strut bracket. Refer to ENGINE MOUNT STRUT REPLACEMENT - RIGHT   .

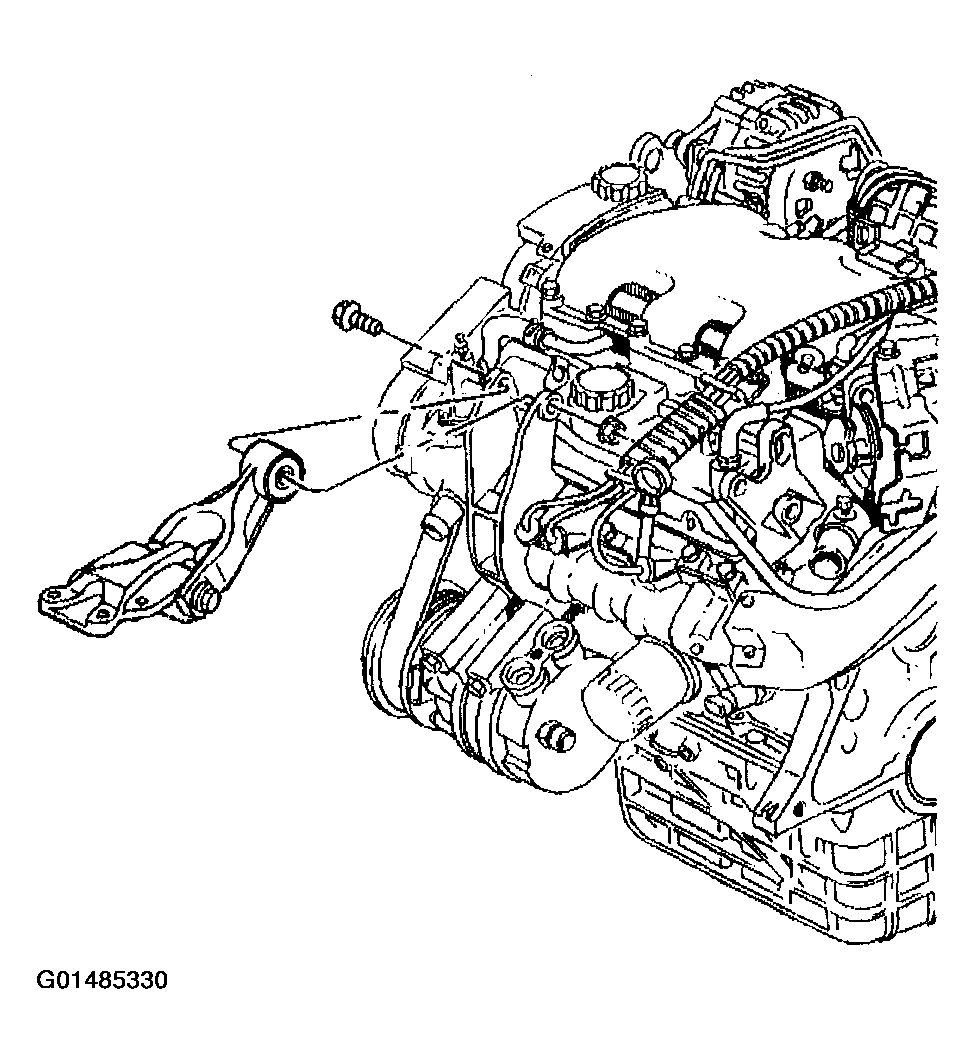

    Fig 1: Removing Right Engine Mount Strut From Right Engine Mount Strut Bracket
    G01485330Courtesy of GENERAL MOTORS CORP.
  2. Remove the engine oil cooler coolant line bracket bolt, if equipped.
  3. Remove the engine wiring harness bracket bolt.

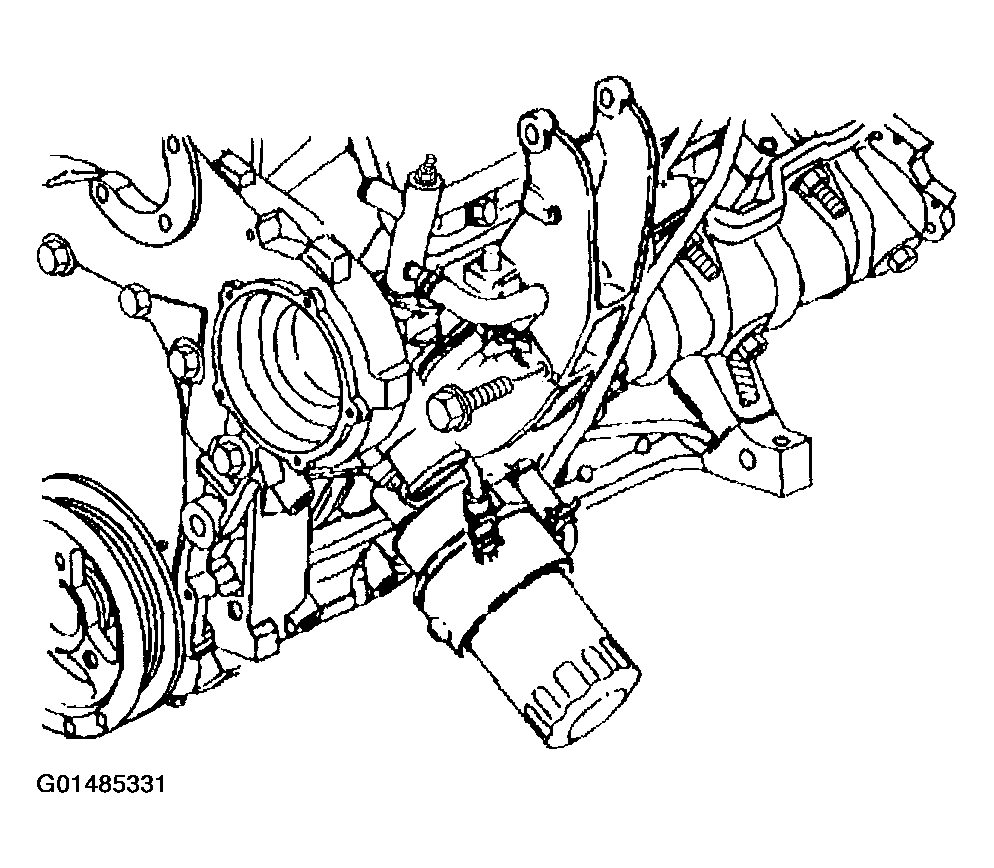

    Fig 2: Removing Engine Wiring Harness Bracket Bolt
    G01485331Courtesy of GENERAL MOTORS CORP.
  4. Remove the air conditioning compressor mounting bolts.
  5. Remove and set the air conditioning compressor aside.

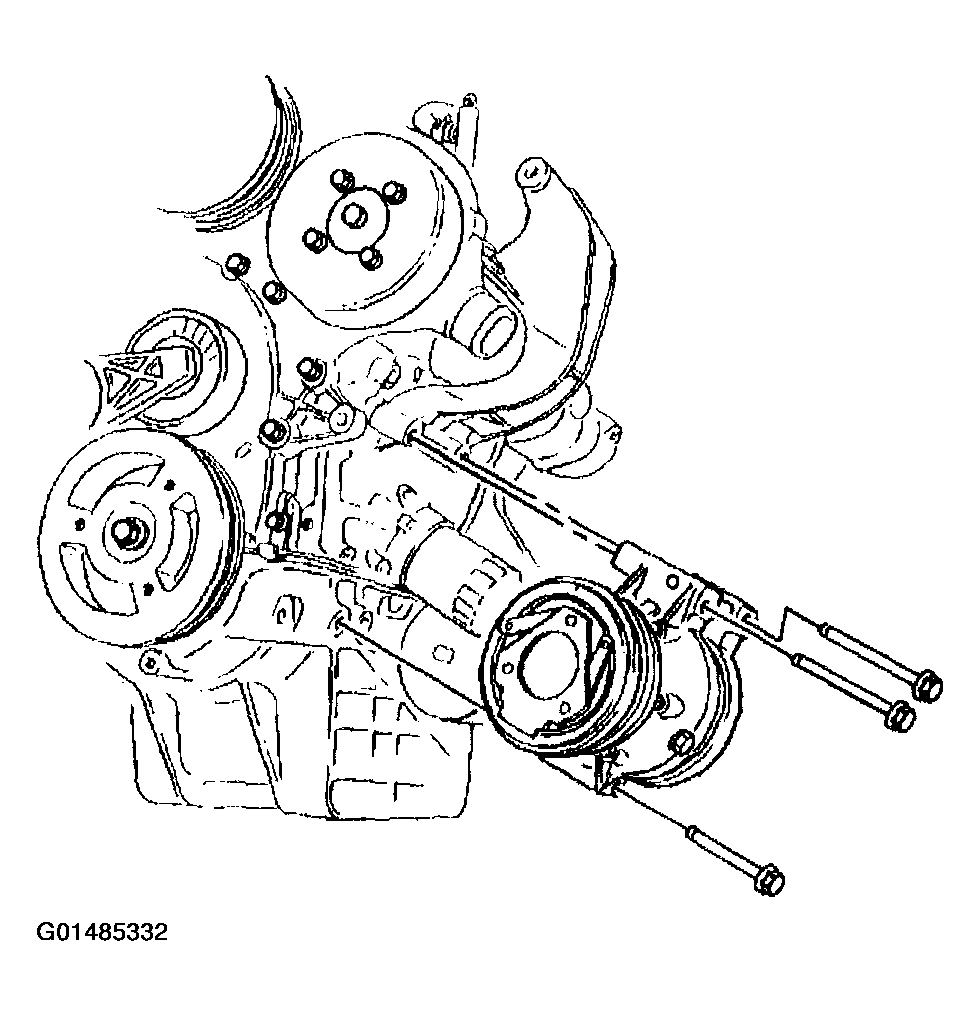

    Fig 3: Removing Air Conditioning Compressor And Mounting Bolts
    G01485332Courtesy of GENERAL MOTORS CORP.
  6. Remove the vertical engine mount strut bracket bolt from the right engine mount strut bracket.
  7. Remove the lower engine mount strut bracket bolt from the right engine mount strut bracket.
  8. Remove the right engine mount strut bracket.

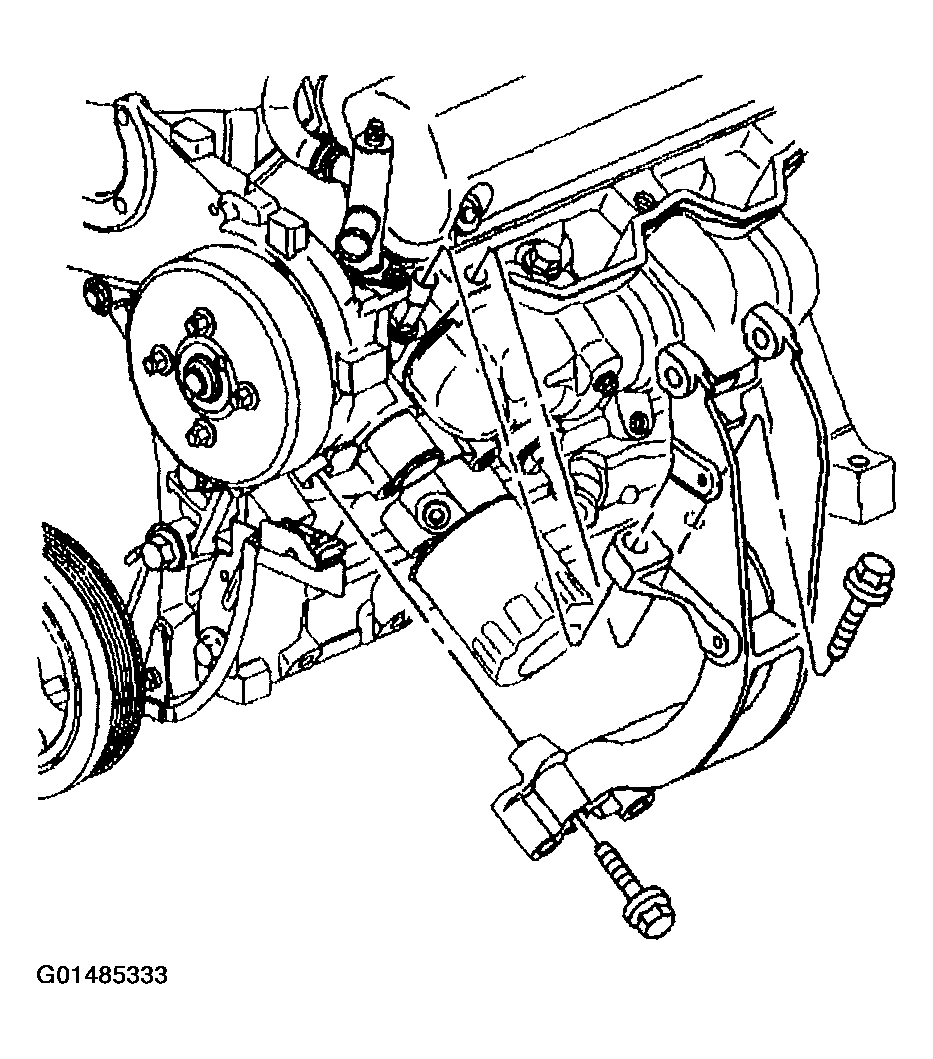

    Fig 4: Removing Right Engine Mount Strut Bracket
    G01485333Courtesy of GENERAL MOTORS CORP.
