Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the right engine mount strut bracket over the pin locator.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the lower engine mount strut bracket bolt through the right engine mount strut bracket into the cylinder block.

    Tighten

    Tighten the engine mount strut bracket bolt to 50 N.m (37 lb ft).

  3. Install the vertical engine mount strut bracket bolt through the right engine mount strut bracket to the cylinder head.

    Tighten

    Tighten the engine mount strut bracket bolt to 50 N.m (37 lb ft).

  4. Install the air conditioning compressor. Refer to COMPRESSOR REPLACEMENT  in HVAC Systems with A/C - Manual.
  5. Install the engine wiring harness bracket bolt.

    Tighten

    Tighten the engine wiring harness bracket bolt to 13 N.m (110 lb in).

    Fig 1: Installing Right Engine Mount Strut Bracket
    G01485334Courtesy of GENERAL MOTORS CORP.
  6. Install the engine oil cooler coolant line bracket bolt, if equipped.

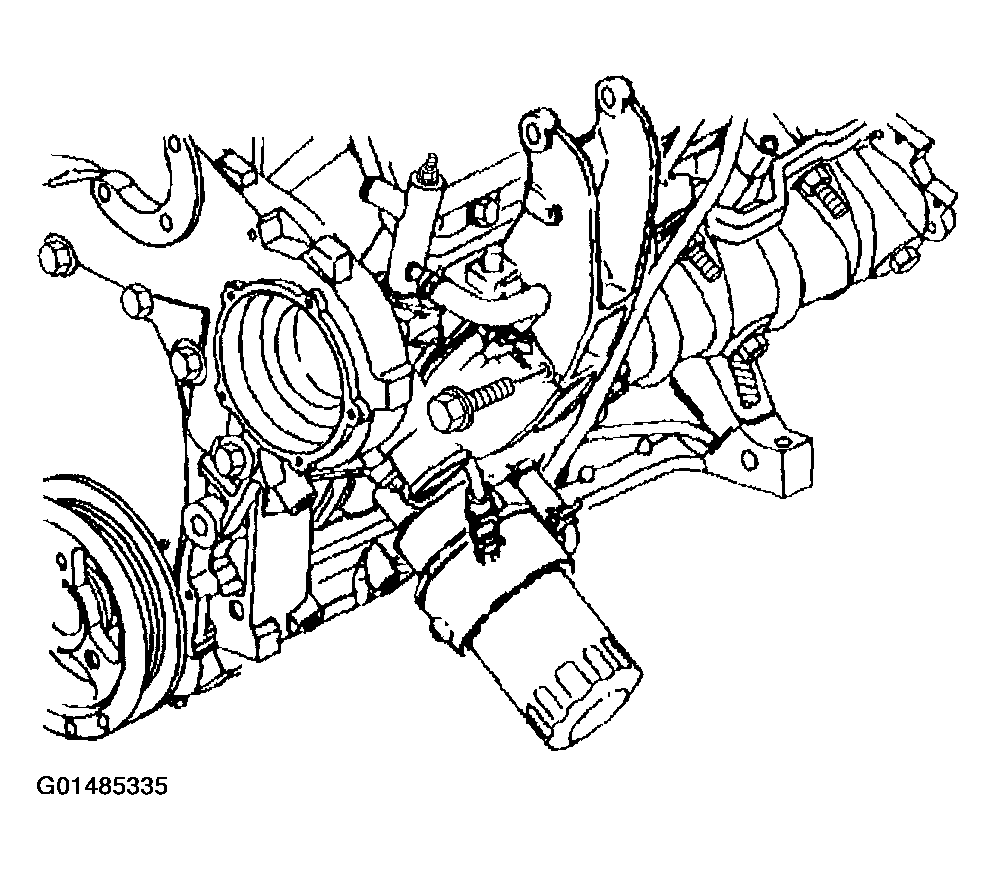

    Fig 2: Removing Bolt
    G01485335Courtesy of GENERAL MOTORS CORP.
  7. Install the right engine mount strut to the right engine mount strut bracket. Refer to ENGINE MOUNT STRUT REPLACEMENT - RIGHT   .

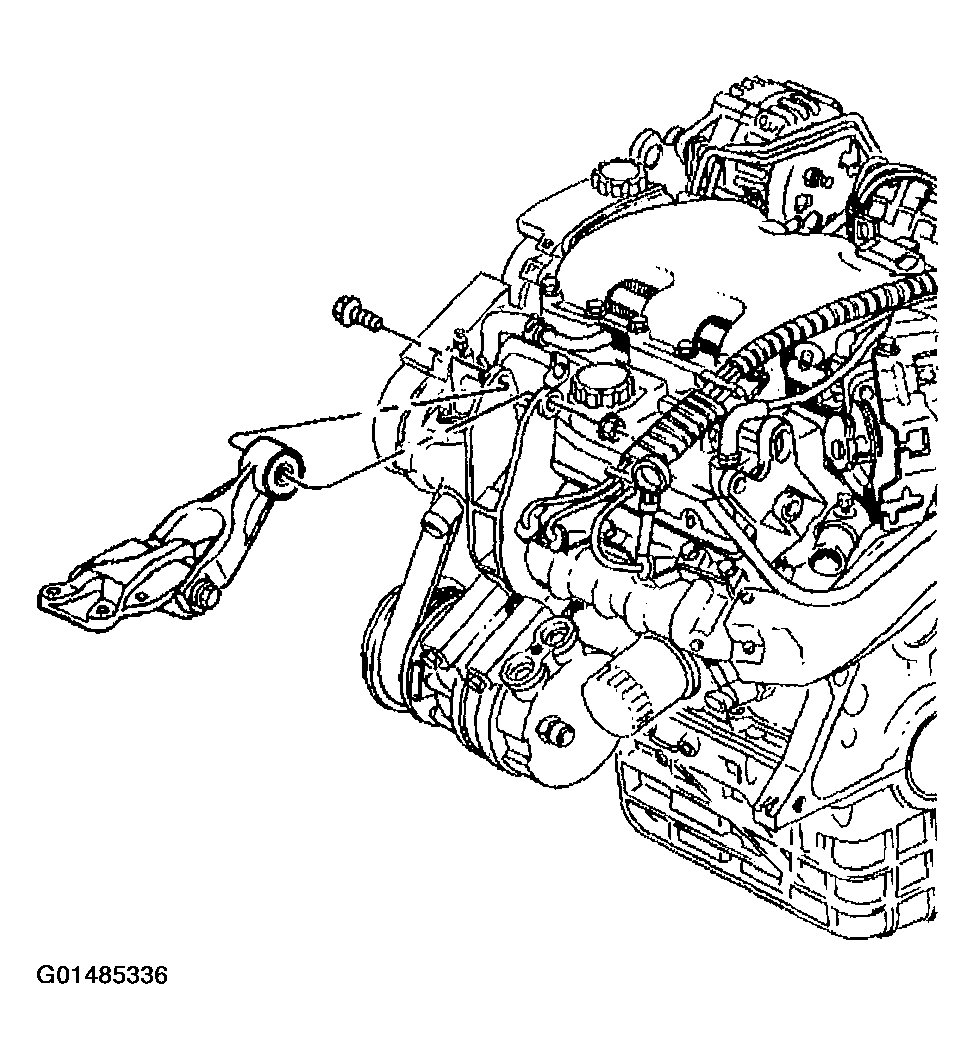

    Fig 3: Installing Right Engine Mount Strut To Right Engine Mount Strut Bracket
    G01485336Courtesy of GENERAL MOTORS CORP.
