Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left engine mount strut from the left engine mount strut bracket. Refer to ENGINE MOUNT STRUT REPLACEMENT - LEFT   .
  2. Remove the thermostat housing. Refer to THERMOSTAT REPLACEMENT  in Engine Cooling.

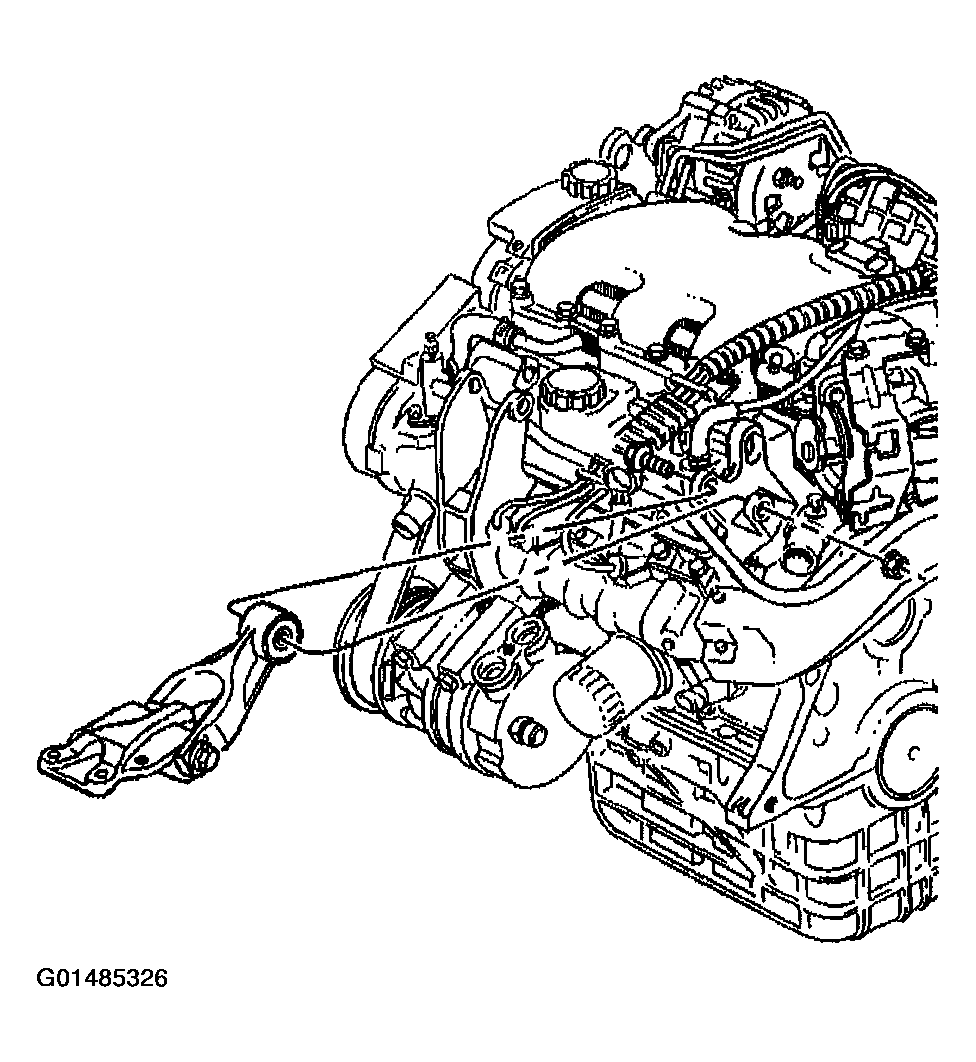

    Fig 1: Removing Engine Mount Strut Bracket - Left
    G01485326Courtesy of GENERAL MOTORS CORP.
  3. Remove the engine mount strut bracket bolts from the left engine mount strut bracket to the cylinder head.
  4. Remove the left engine mount strut bracket.

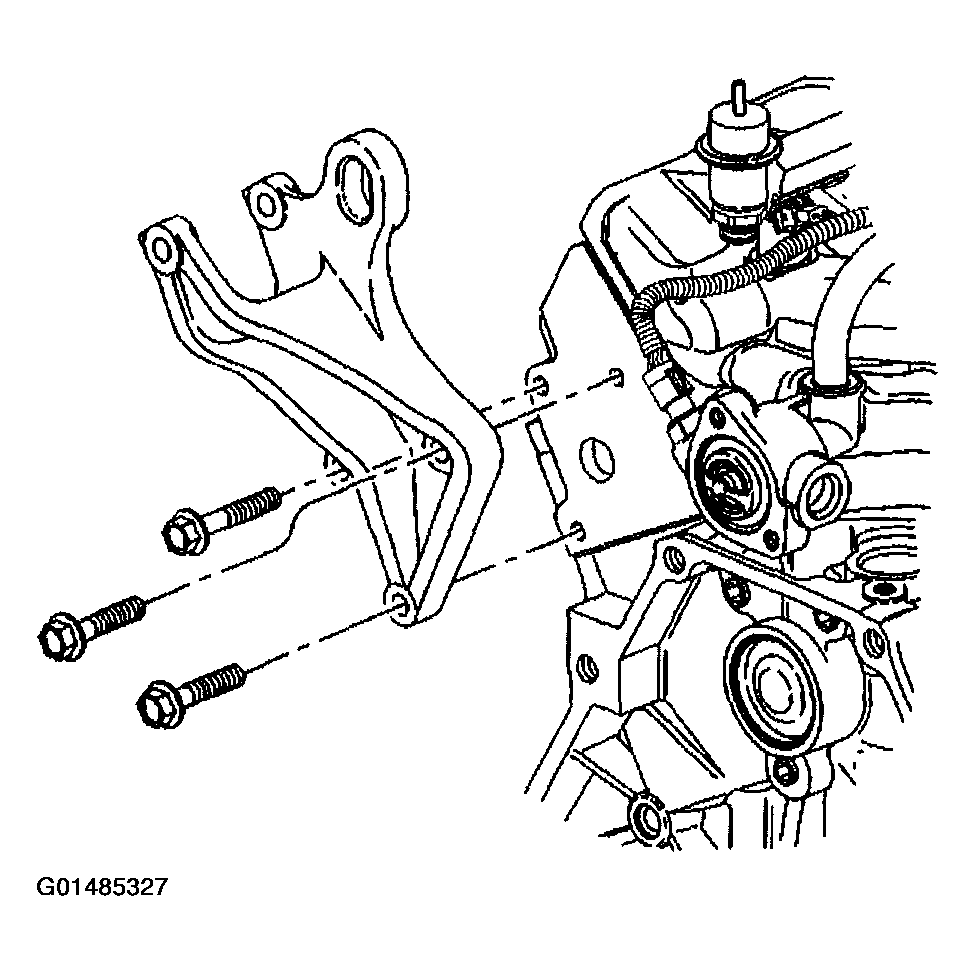

    Fig 2: Removing Engine Mount Strut Bracket Bolts From Left Engine Mount Strut Bracket
    G01485327Courtesy of GENERAL MOTORS CORP.
