Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the left engine mount strut bracket.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the engine mount strut bracket bolts through the engine mount strut bracket to the cylinder head.

    Tighten

    Tighten the engine mount strut bracket bolts to 70 N.m (52 lb ft).

  3. Install the thermostat housing. Refer to THERMOSTAT REPLACEMENT  in Engine Cooling.

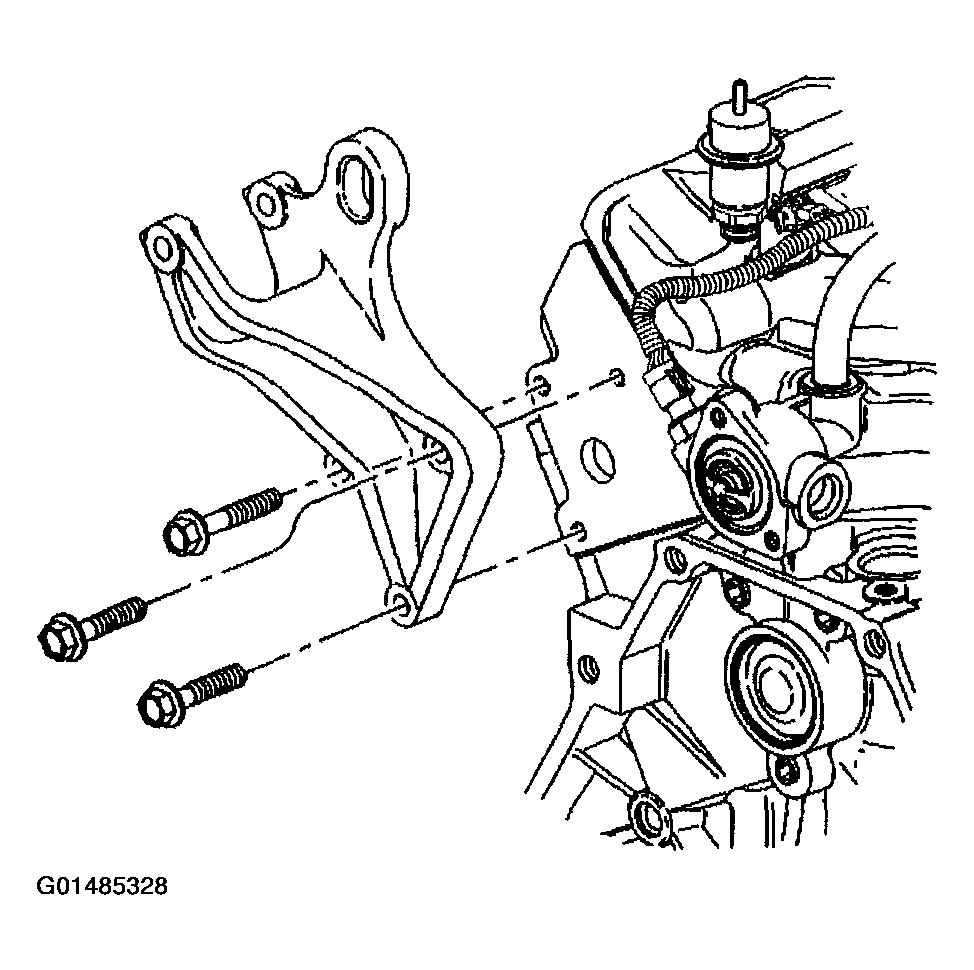

    Fig 1: Installing Engine Mount Strut Bracket Bolts To Left Engine Mount Strut Bracket
    G01485328Courtesy of GENERAL MOTORS CORP.
  4. Install the left engine mount strut to the left engine mount strut bracket. Refer to ENGINE MOUNT STRUT REPLACEMENT - LEFT   .

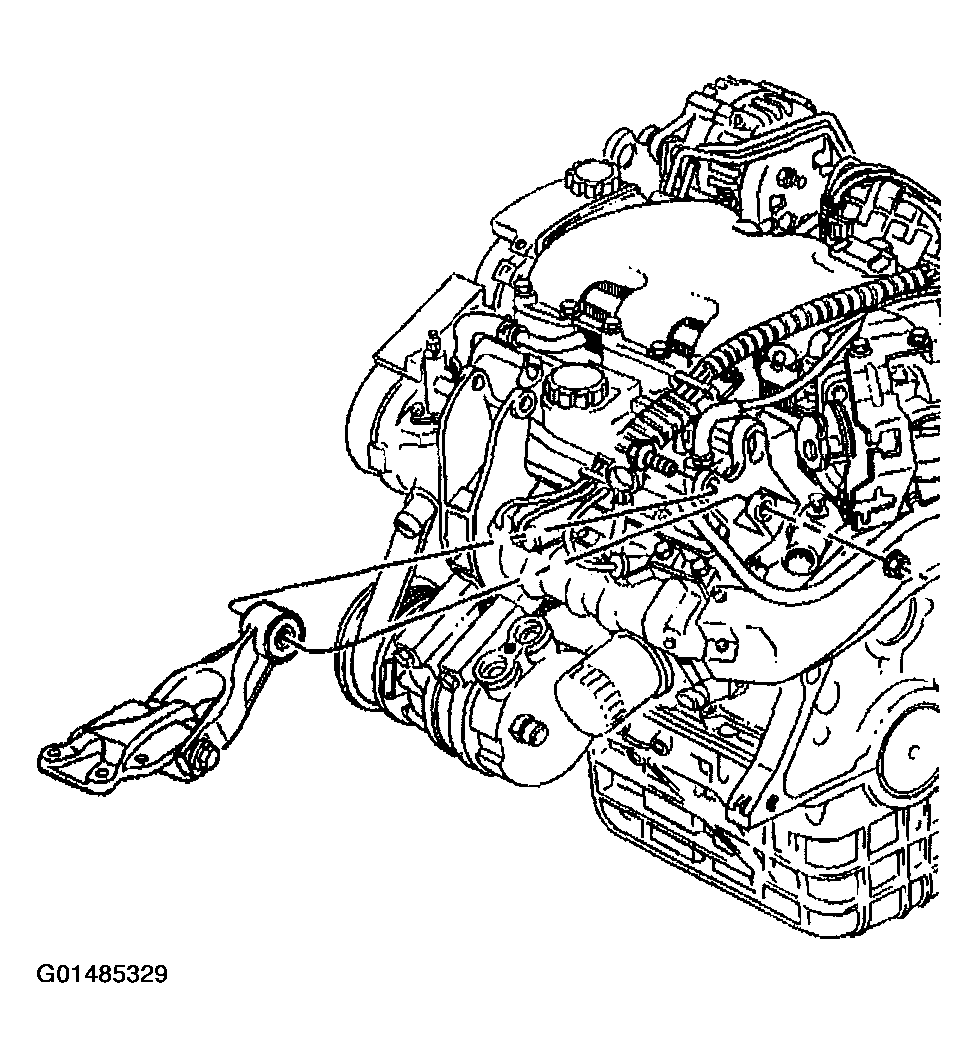

    Fig 2: Installing Left Engine Mount Strut - Left
    G01485329Courtesy of GENERAL MOTORS CORP.
