Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine mount to the engine mount bracket. Refer to ENGINE MOUNT BRACKET REPLACEMENT   .
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the engine mount upper nuts.

    Tighten

    Tighten the nuts to 53 N.m (39 lb ft).

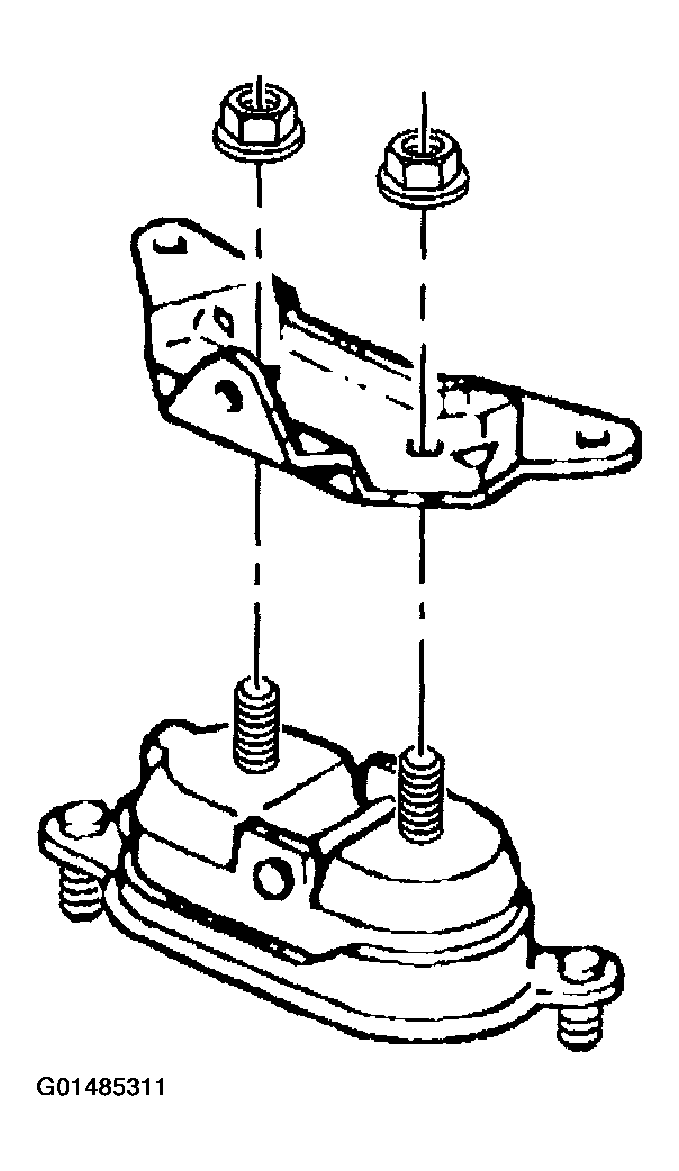

    Fig 1: Installing Engine Mount Upper Nuts
    G01485311Courtesy of GENERAL MOTORS CORP.
  3. Install the engine mount bracket with the engine mount to the oil pan.
  4. Install the engine mount bracket-to-oil pan bolts.

    Tighten

    Tighten the bolts to 58 N.m (43 lb ft).

  5. Use the utility stand in order to lower the engine.

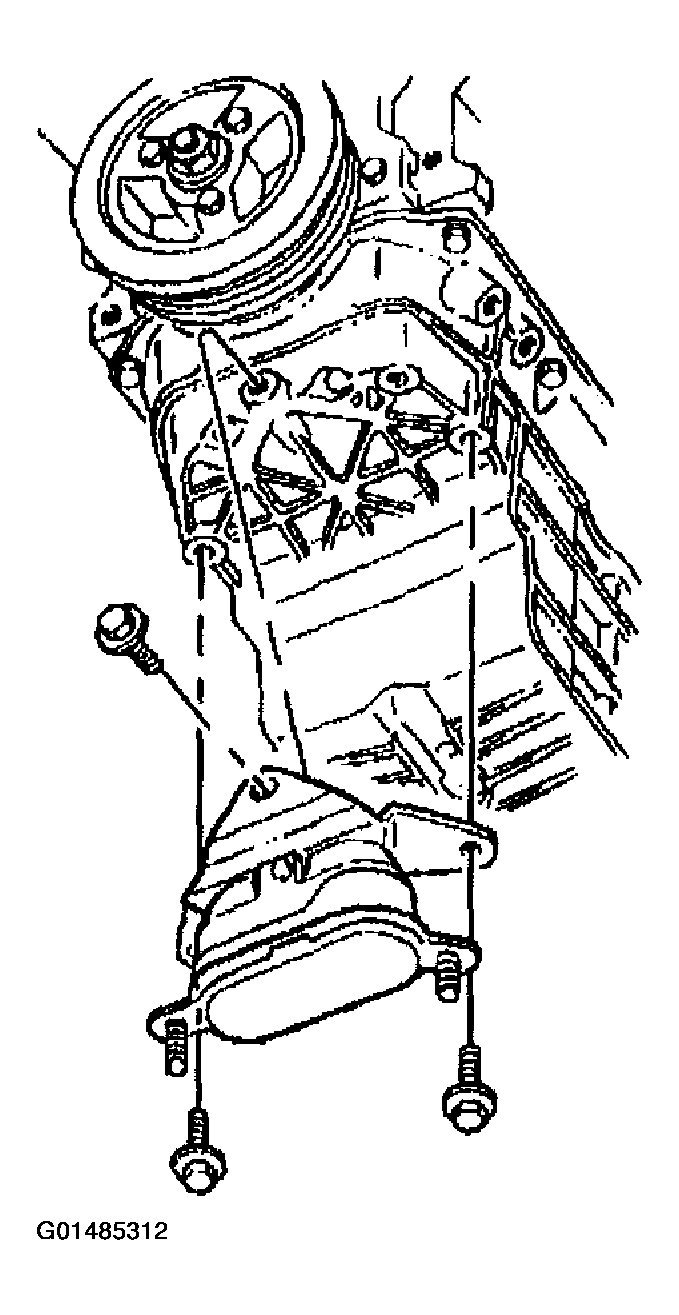

    Fig 2: Installing Engine Mount Lower Nuts
    G01485312Courtesy of GENERAL MOTORS CORP.
  6. Install the engine mount lower nuts.

    Tighten

    Tighten the nuts to 47 N.m (35 lb ft).

  7. Install the right engine splash shield. Refer to SPLASH SHIELD REPLACEMENT - ENGINE  in Body Front End.
  8. Install the right front wheel and tire. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION  .
  9. Connect the three-way catalytic converter pipe to the engine right side exhaust manifold. Refer to CATALYTIC CONVERTER REPLACEMENT  in Engine Exhaust.
  10. Lower the vehicle.

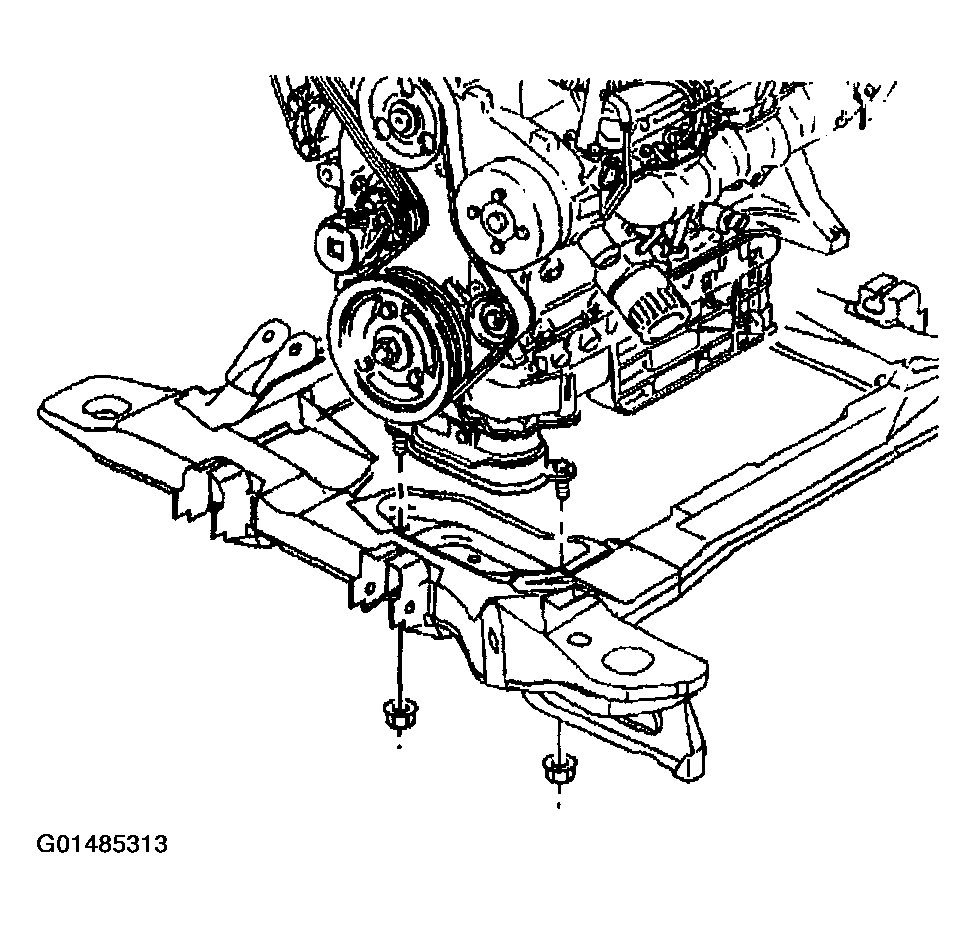

    Fig 3: Installing Engine Mounting Nuts
    G01485313Courtesy of GENERAL MOTORS CORP.
  11. Install the engine mount struts. Refer to ENGINE MOUNT STRUT REPLACEMENT - LEFT   or ENGINE MOUNT STRUT REPLACEMENT - RIGHT   .
  12. Install the throttle body air inlet duct. Refer to ENGINE CONTROLS - REMOVAL & INSTALLATION & OVERHAUL  in Removal and Installation in Engine Performance.
