Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the automatic transaxle. Refer to TRANSMISSION REPLACEMENT (M15)  or TRANSMISSION REPLACEMENT (M76)  in Automatic Transaxle - 4T65-E.
  2. Remove the engine flywheel bolts and flywheel.
  3. Clean the engine flywheel bolt threads and bolt holes.
  4. Clean and inspect the engine flywheel. Refer to ENGINE FLYWHEEL CLEANING AND INSPECTION   .

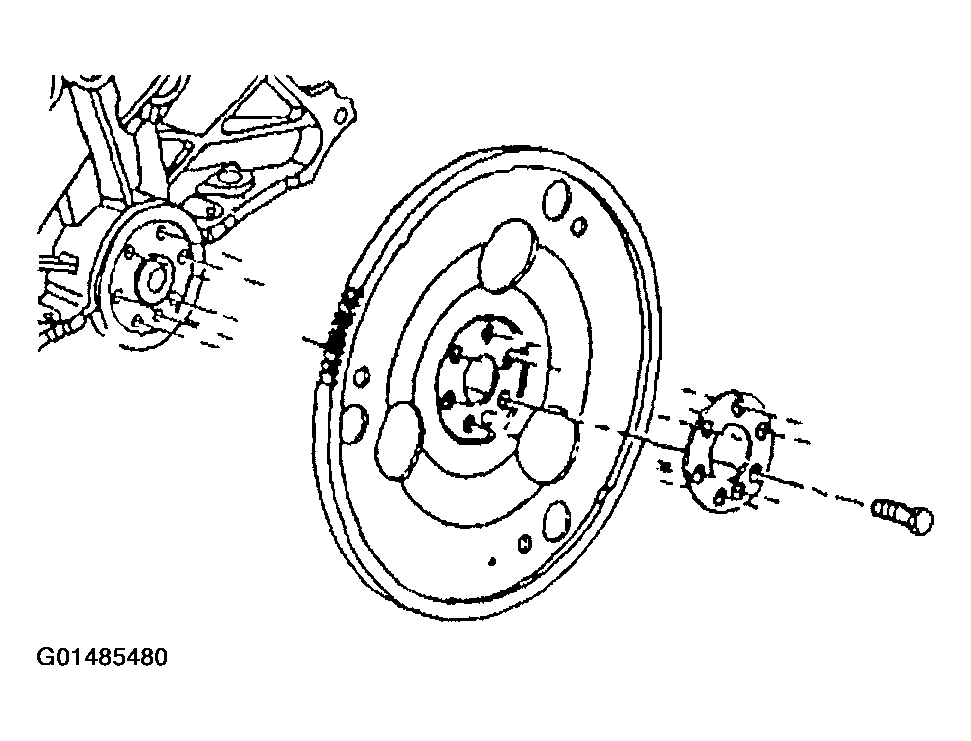

    Fig 1: Removing Engine Flywheel Bolts And Flywheel
    G01485480Courtesy of GENERAL MOTORS CORP.
