Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the engine flywheel and bolts

    Tighten

    Tighten bolts to 71 N.m (52 lb ft).

  2. Install the automatic transaxle. Refer to TRANSMISSION REPLACEMENT (M15)  or TRANSMISSION REPLACEMENT (M76)  in Automatic Transaxle - 4T65-E.

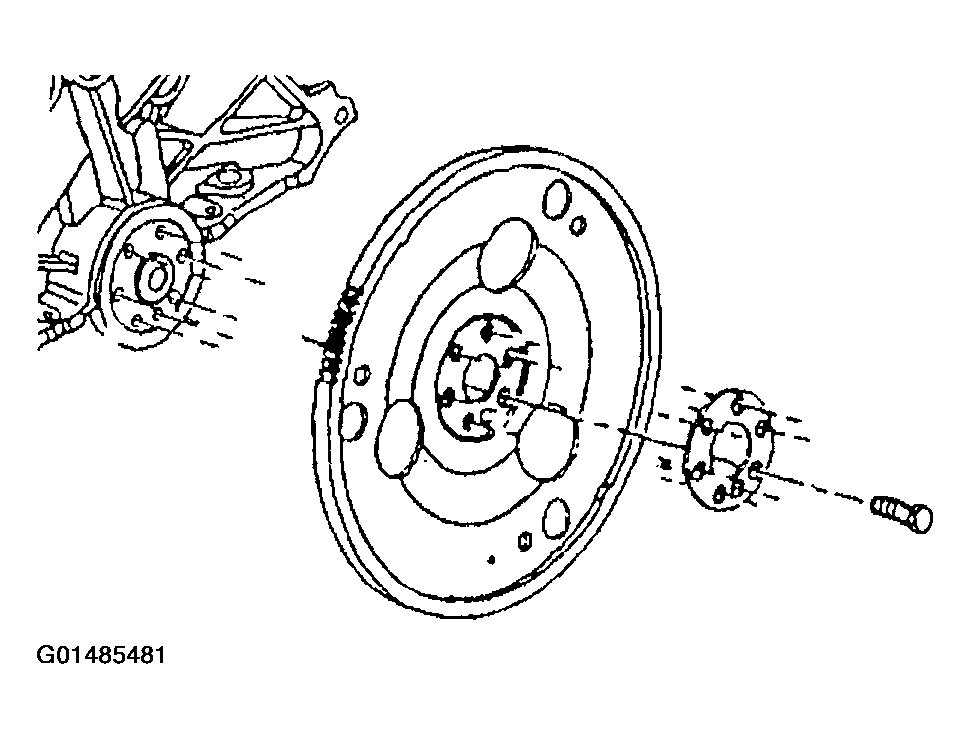

    Fig 1: Installing Engine Flywheel And Flywheel Bolts
    G01485481Courtesy of GENERAL MOTORS CORP.
