Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the drive belt tensioner.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the drive belt tensioner bolt.

    Tighten

    Tighten the bolt to 50 N.m (37 lb ft).

  3. Install the drive belt. Refer to DRIVE BELT REPLACEMENT   .

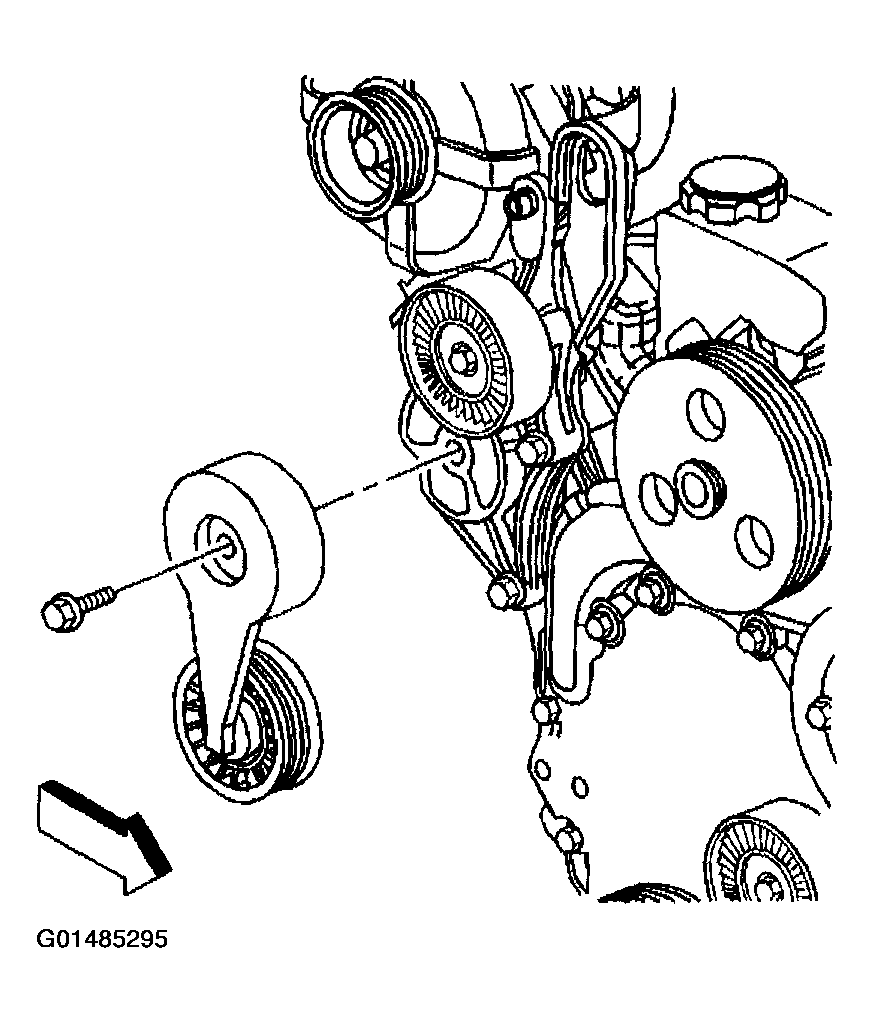

    Fig 1: Installing Drive Belt Tensioner And Bolt
    G01485295Courtesy of GENERAL MOTORS CORP.
