Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the drive belt to all of the pulleys except the generator pulley.
  2. Rotate the drive belt tensioner in order to install the drive belt over the generator pulley.

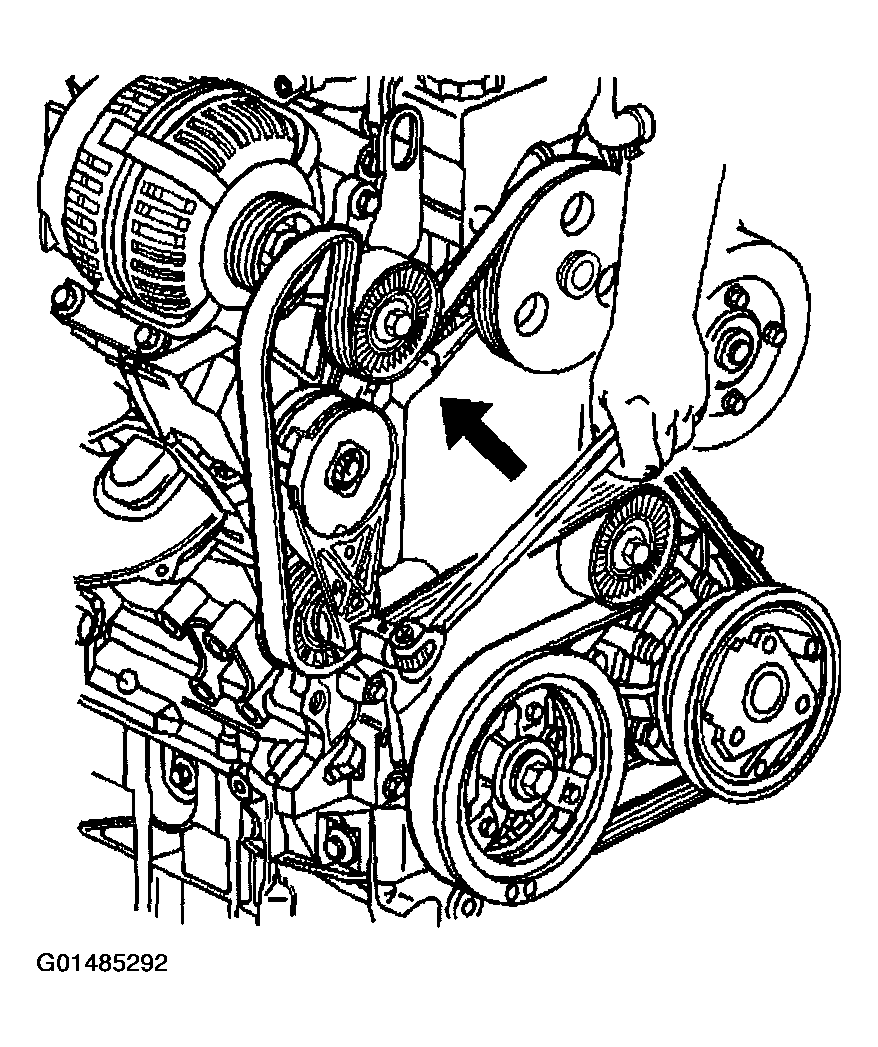

    Fig 1: Installing Drive Belt Over Generator Pulley By Rotating Drive Belt Tensioner
    G01485292Courtesy of GENERAL MOTORS CORP.

    Important:  Ensure that the drive belt is aligned into the proper grooves of the accessory drive belt pulleys.

  3. Ensure that the drive belt is properly routed.

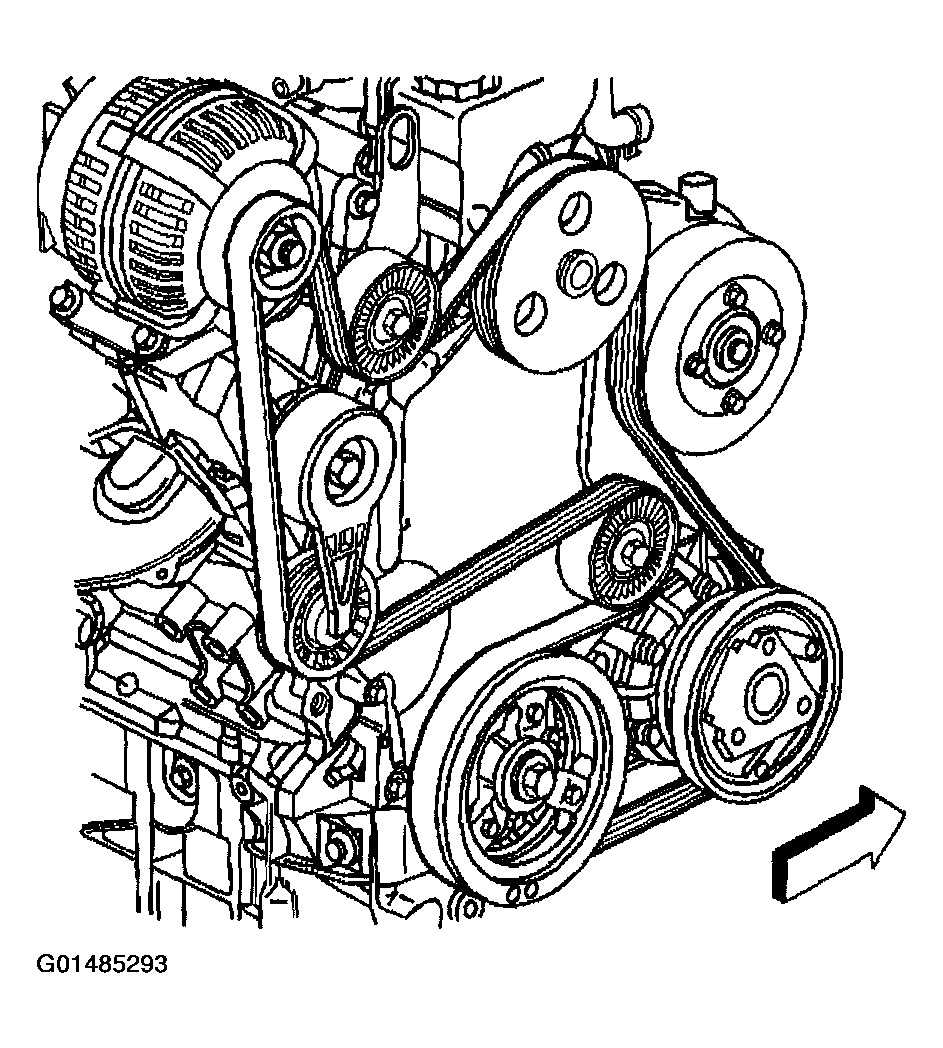

    Fig 2: View Of Drive Belt Routing
    G01485293Courtesy of GENERAL MOTORS CORP.
