Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the lower drive belt idler pulley.

    Tighten

    Tighten the pulley to 50 N.m (37 lb ft).

  2. Install the drive belt. Refer to DRIVE BELT REPLACEMENT   .

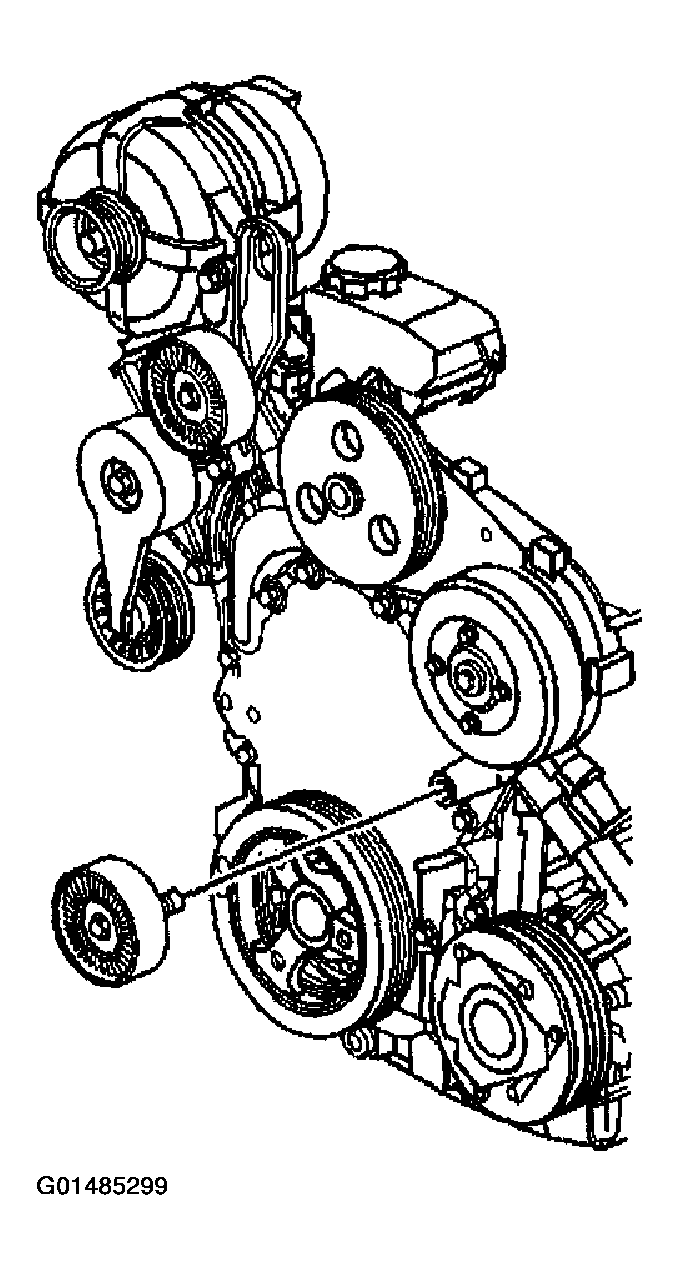

    Fig 1: Installing Lower Drive Belt Idler Pulley
    G01485299Courtesy of GENERAL MOTORS CORP.
