Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to JACKING AND LIFTING in General Information.
  2. Drain the engine coolant from the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM  in Engine Cooling.
  3. Drain the engine oil. Refer to ENGINE OIL AND OIL FILTER REPLACEMENT   .
  4. Lower the vehicle.
  5. Remove the lower intake manifold. Refer to INTAKE MANIFOLD REPLACEMENT - LOWER   .
  6. Remove the exhaust crossover pipe. Refer to EXHAUST CROSSOVER PIPE REPLACEMENT  in Engine Exhaust.
  7. Remove the thermostat bypass pipe. Refer to THERMOSTAT BYPASS PIPES REPLACEMENT  in Engine Cooling.
  8. Remove the right engine mount strut bracket. Refer to ENGINE MOUNT STRUT BRACKET REPLACEMENT - RIGHT   .
  9. Remove the oil level indicator tube. Refer to OIL LEVEL INDICATOR AND TUBE REPLACEMENT   .
  10. Remove the engine left side spark plug wires from the spark plugs. Refer to ENGINE CONTROLS - REMOVAL & INSTALLATION & OVERHAUL  in Removal and Installation in Engine Performance.
  11. Remove the engine left side spark plugs. Refer to ENGINE CONTROLS - REMOVAL & INSTALLATION & OVERHAUL  in Removal and Installation in Engine Performance.
  12. Remove the engine left side exhaust manifold. Refer to EXHAUST MANIFOLD REPLACEMENT - LEFT  .
  13. Remove the cylinder head bolts.
  14. Remove the cylinder head.

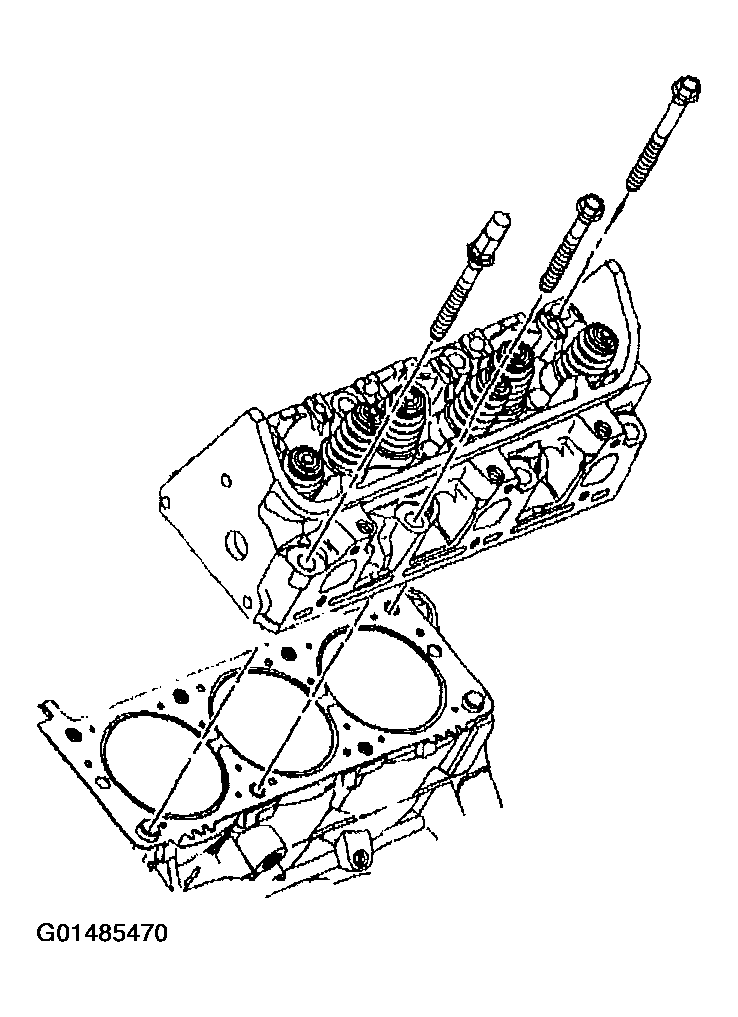

    Fig 1: Removing Cylinder Head
    G01485470Courtesy of GENERAL MOTORS CORP.
  15. Remove the cylinder head gasket.
  16. Clean the following areas:
    • The gasket sealing surfaces on the cylinder head, cylinder block, and intake manifolds
    • The cylinder block bolt threads
    • The cylinder head bolts

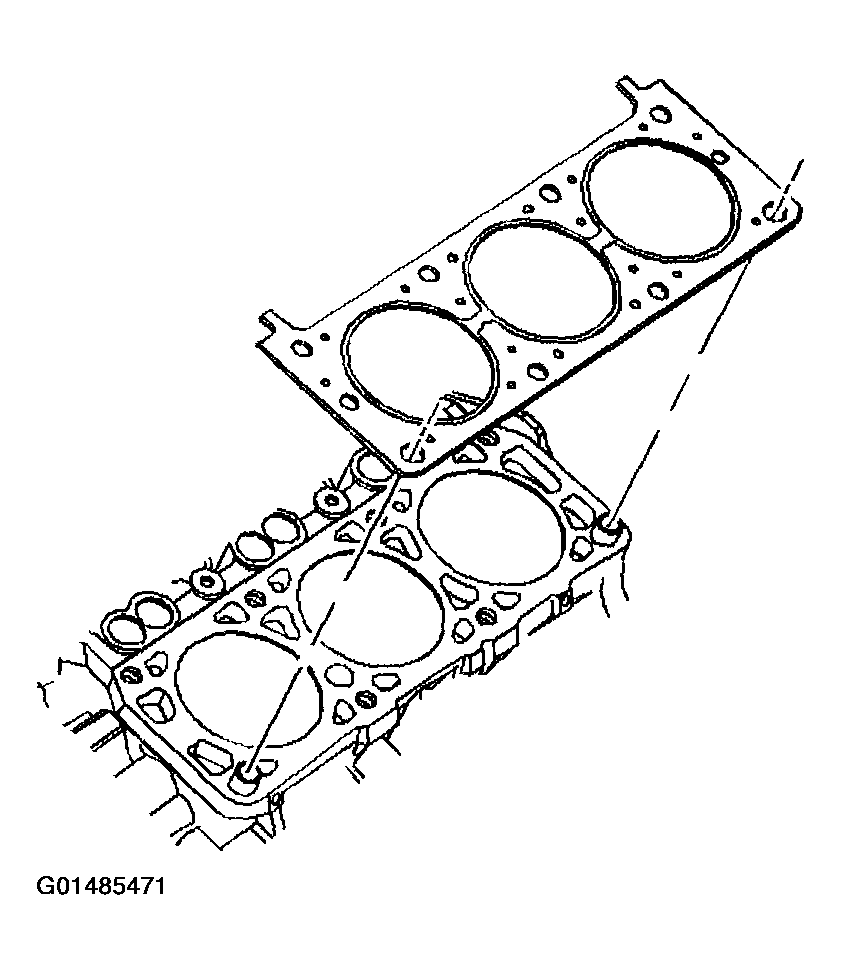

    Fig 2: Removing Cylinder Head Gasket
    G01485471Courtesy of GENERAL MOTORS CORP.
