Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine flywheel. Refer to ENGINE FLYWHEEL REPLACEMENT   .

    Important:  Do not damage the crankshaft or seal bore.

  2. Remove the crankshaft rear oil seal. Pry the crankshaft rear oil seal out using a suitable tool.

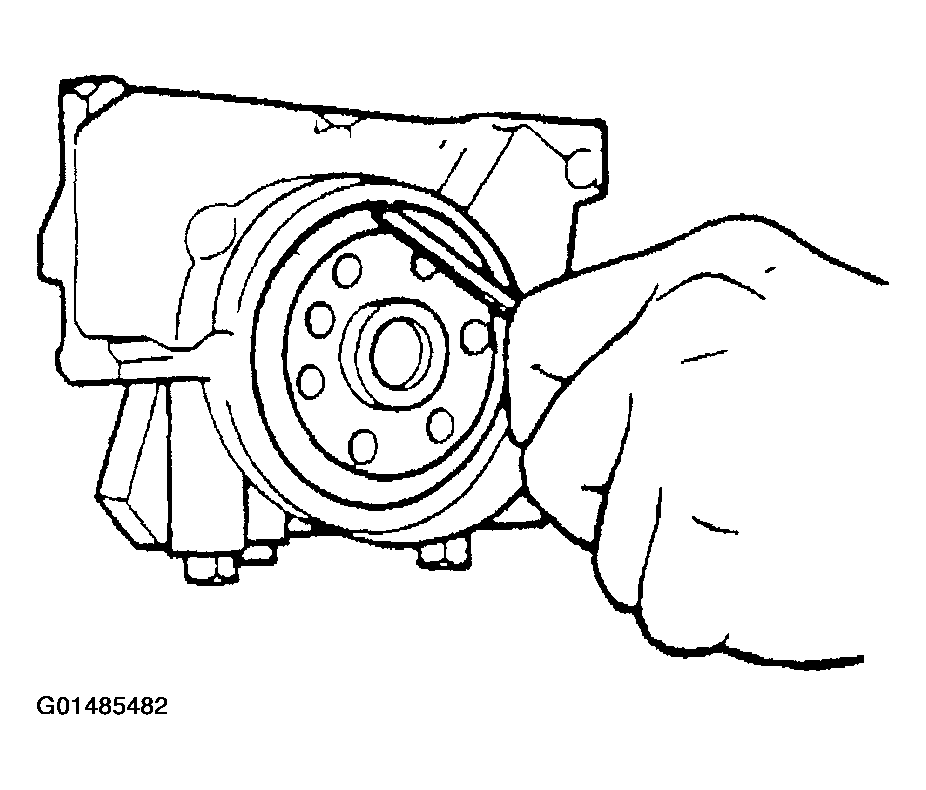

    Fig 1: Prying Crankshaft Rear Oil Seal Out Using Suitable Tool
    G01485482Courtesy of GENERAL MOTORS CORP.
