Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crankshaft balancer. Refer to CRANKSHAFT BALANCER REPLACEMENT   .
  2. Pry out the crankshaft front oil seal using a suitable tool. Use care not to damage the engine front cover or the crankshaft.
  3. Inspect the crankshaft, the crankshaft balancer and the engine front cover for wear and/or damage. Replace the components as necessary.

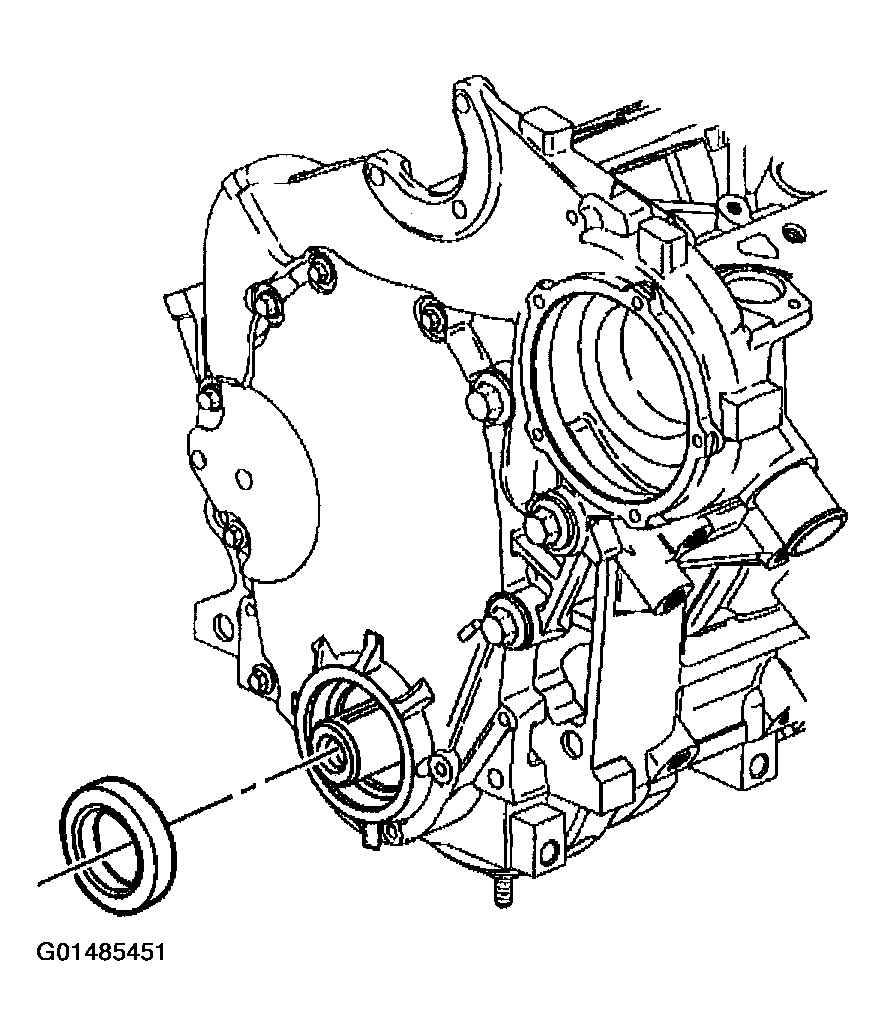

    Fig 1: Prying Out Crankshaft Front Oil Seal
    G01485451Courtesy of GENERAL MOTORS CORP.
