Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the J 35468  and the crankshaft front oil seal with the engine front cover and crankshaft.
  2. Install the crankshaft front oil seal using the J 35468  and a suitable tool.
  3. Install the crankshaft balancer. Refer to CRANKSHAFT BALANCER REPLACEMENT   .

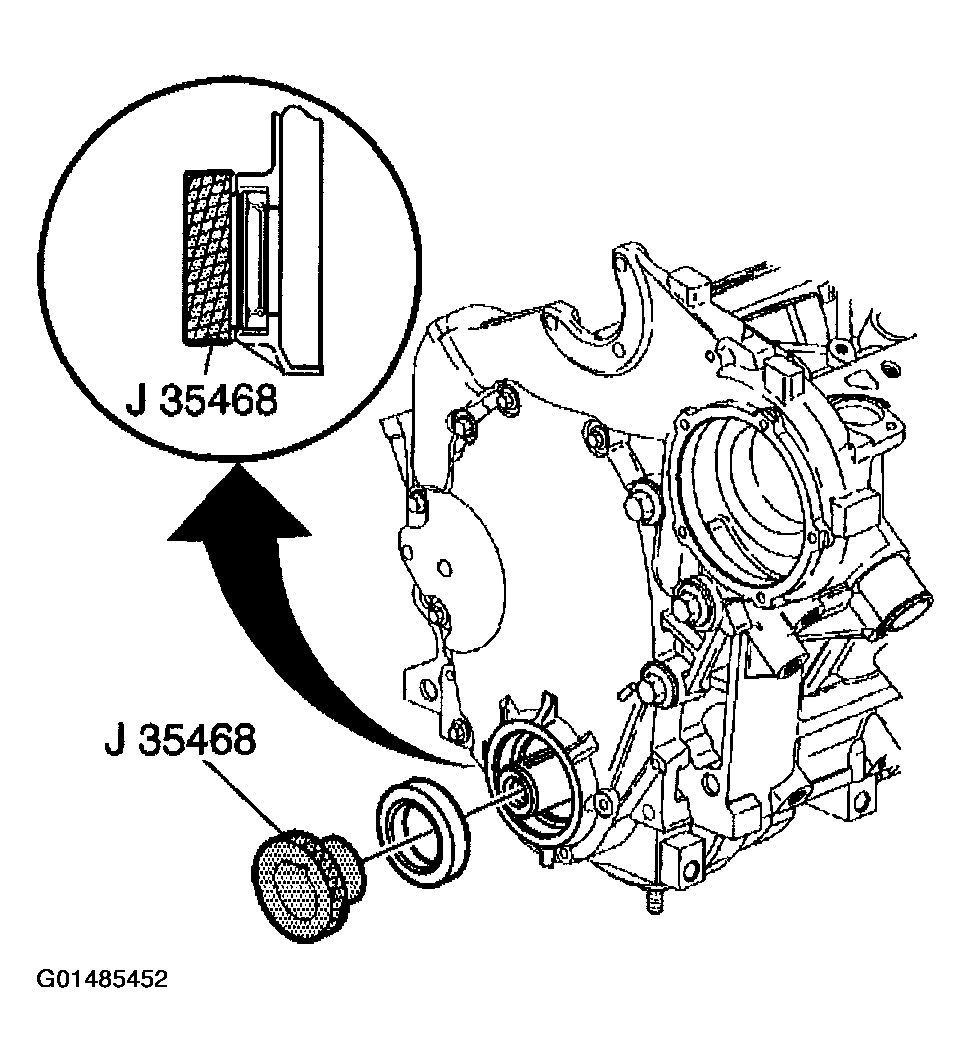

    Fig 1: Aligning Crankshaft Front Oil Seal With Engine Front Cover And Crankshaft
    G01485452Courtesy of GENERAL MOTORS CORP.
