Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Coat the camshaft rear bearing hole plug with sealer. Use sealer GM P/N 12345493 or equivalent.
  2. Use the appropriate tool in order to install the camshaft rear bearing hole plug.

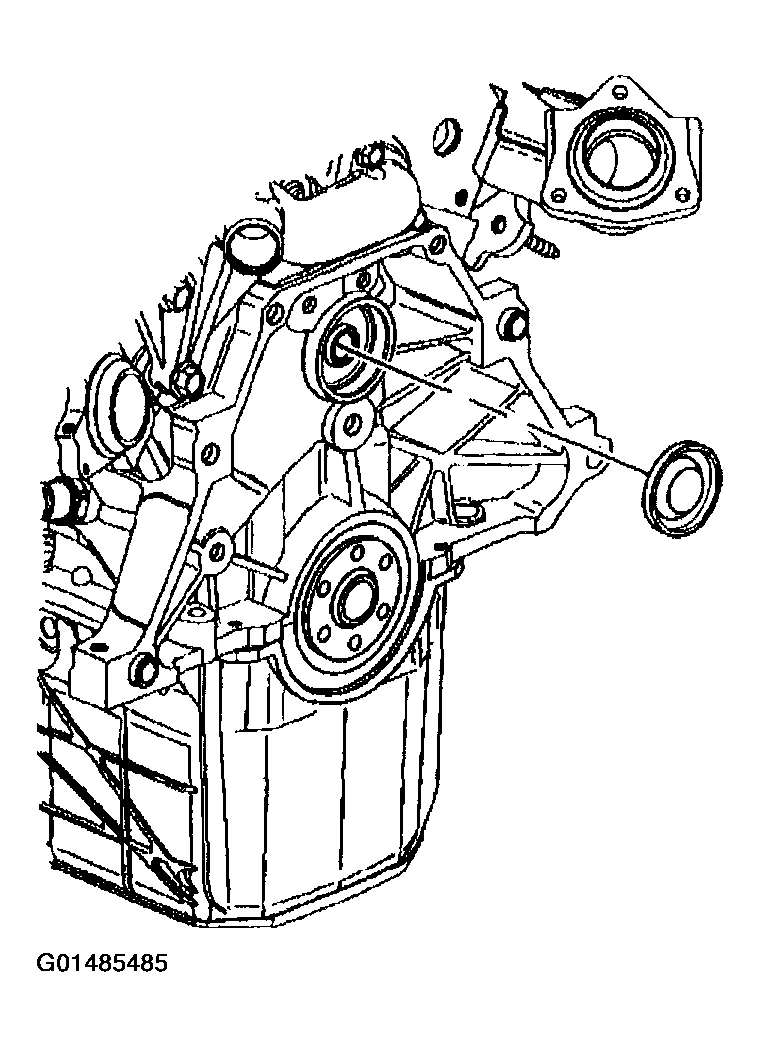

    Fig 1: Installing Camshaft Rear Bearing Hole Plug
    G01485485Courtesy of GENERAL MOTORS CORP.
  3. Ensure that the camshaft rear bearing plug is installed to specifications.
  4. Install the engine flywheel. Refer to ENGINE FLYWHEEL REPLACEMENT   .
    Fig 2: Identifying Installation Specifications of Camshaft Rear Bearing Plug
    G01485486Courtesy of GENERAL MOTORS CORP.
