Water Pump Cleaning and Inspection

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove all gasket material from the sealing surface.
  2. Inspect the water pump impeller for damage.
  3. Inspect the water pump shaft for looseness.
  4. Replace the water pump if necessary.

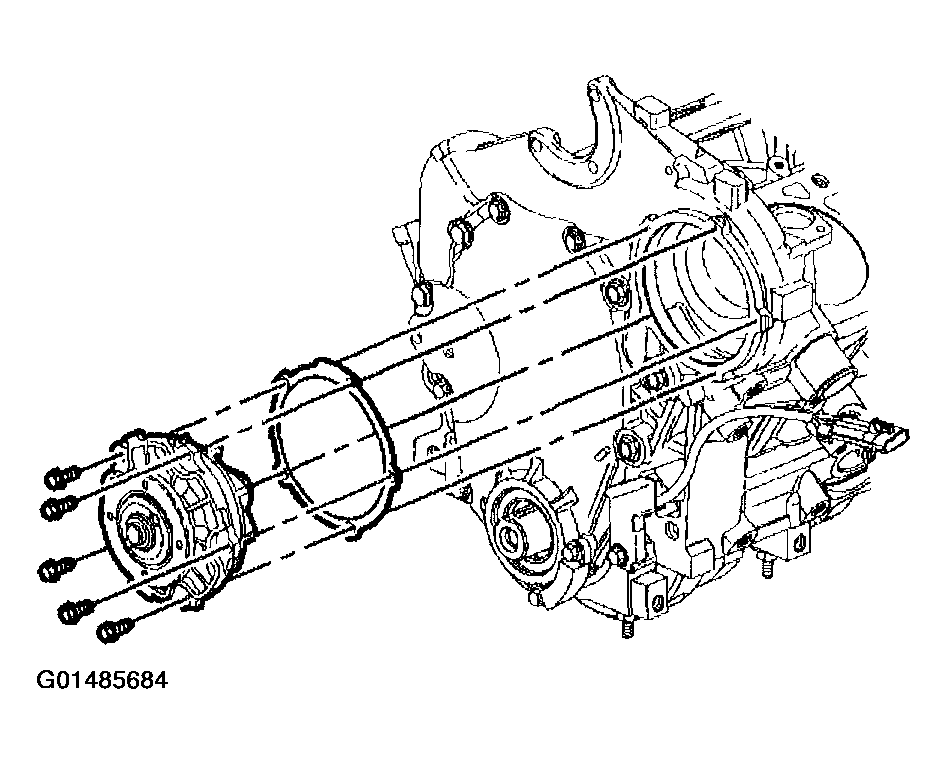

    Fig 1: Removing Water Pump And Gasket
    G01485684Courtesy of GENERAL MOTORS CORP.
