Water Outlet and Thermostat Removal

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the water outlet bolts.
  2. Remove the water outlet.

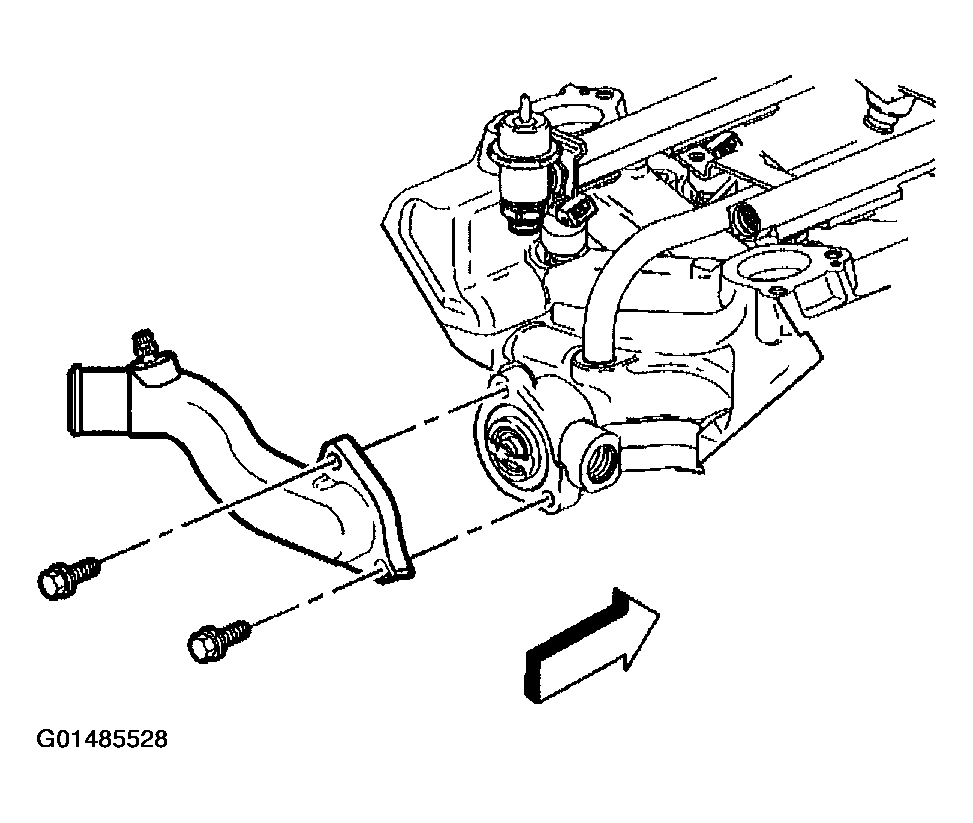

    Fig 1: Removing Water Outlet Bolts And Water Outlet
    G01485528Courtesy of GENERAL MOTORS CORP.
  3. Remove the thermostat.
    Fig 2: Removing Thermostat
    G01485529Courtesy of GENERAL MOTORS CORP.
