Valve Rocker Arm Cover Removal - Right

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the electronic ignition control module nuts and bolts.
  2. Remove the electronic ignition control module.
  3. Remove the electronic ignition control module studs.

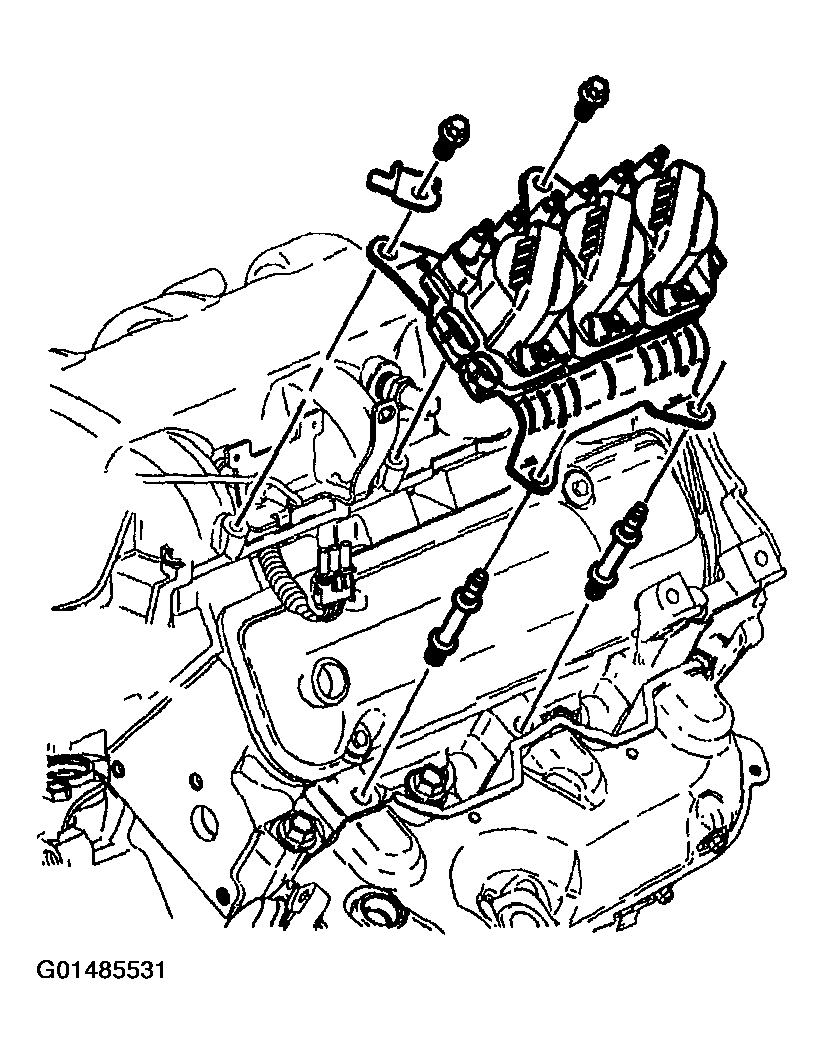

    Fig 1: Removing Electronic Ignition Control Module, Nuts, Bolts And Studs
    G01485531Courtesy of GENERAL MOTORS CORP.
  4. Remove the valve rocker arm cover bolts.

    Important:  When removing the valve rocker arm cover make sure the gasket stays in place attached to the cylinder head.

  5. Remove the valve rocker arm cover.
  6. Cut the RTV in the channel where the intake, cylinder head and valve rocker arm cover meet with a suitable tool.
  7. Remove the valve rocker arm cover gasket.

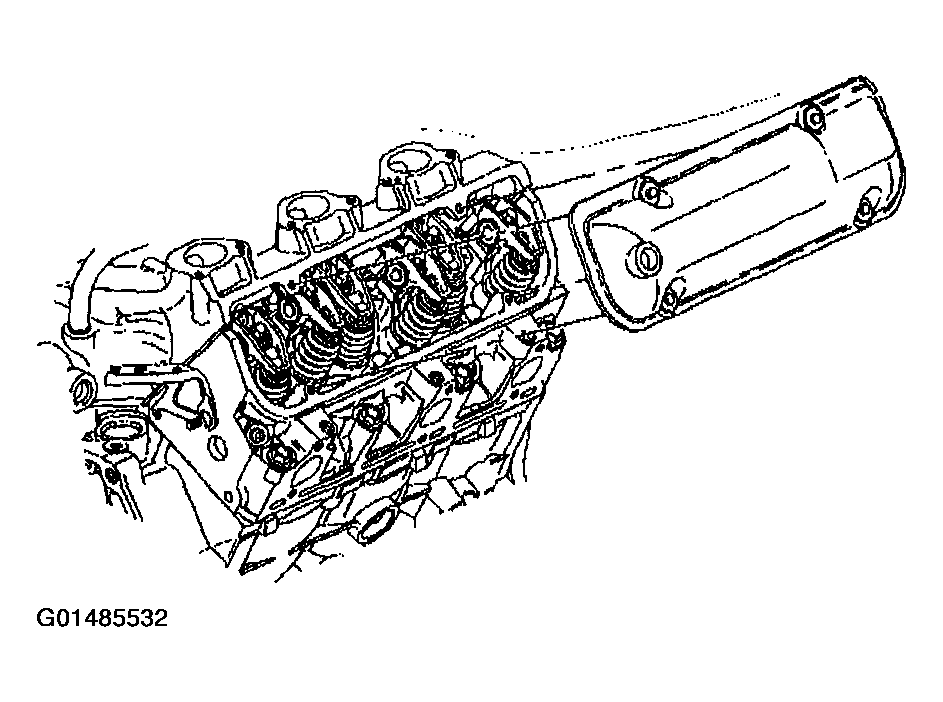

    Fig 2: Removing Valve Rocker Arm Cover
    G01485532Courtesy of GENERAL MOTORS CORP.
