Valve Rocker Arm Cover Installation - Left

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the valve rocker arm cover gasket into the valve rocker arm cover.
  2. Apply sealer GM P/N United States 12346286, GM P/N Canada 10953472 or the equivalent to the notches where the cylinder head and intake manifold meet.
  3. Install the valve rocker arm cover.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the valve rocker arm cover bolts.

    Tighten

    Tighten the valve rocker arm cover bolts to 10 N.m (89 lb in).

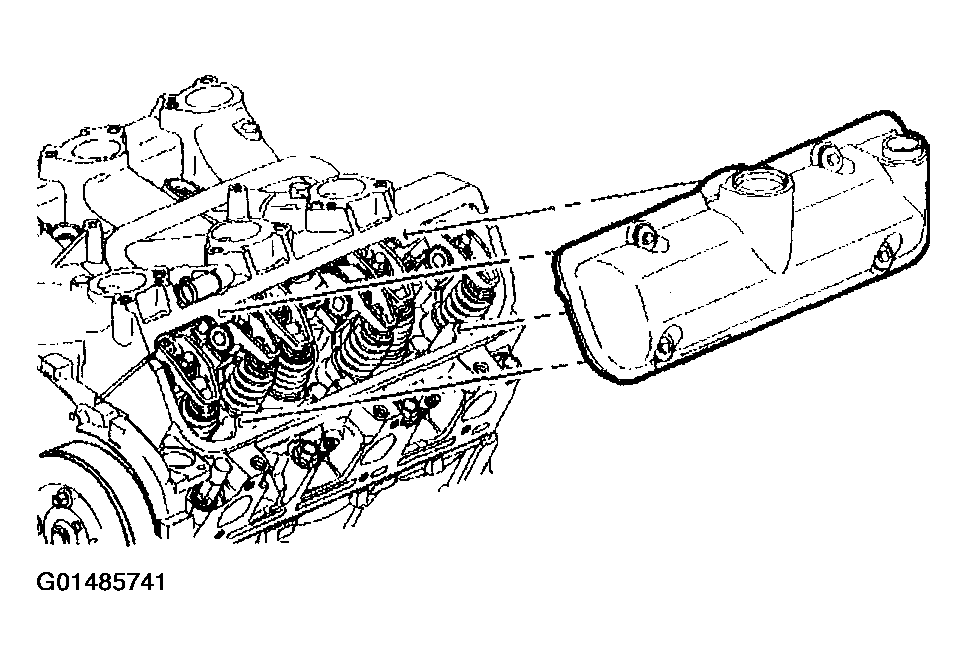

    Fig 1: Installing Valve Rocker Arm Cover
    G01485741Courtesy of GENERAL MOTORS CORP.
