Valve Lifter Removal

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the valve lifter guide bolts.
  2. Remove the valve lifter guides.

    Important:  Once removed, place the valve lifters in an organized order so the valve lifters can be installed into the original locations.

  3. Remove the valve lifters.

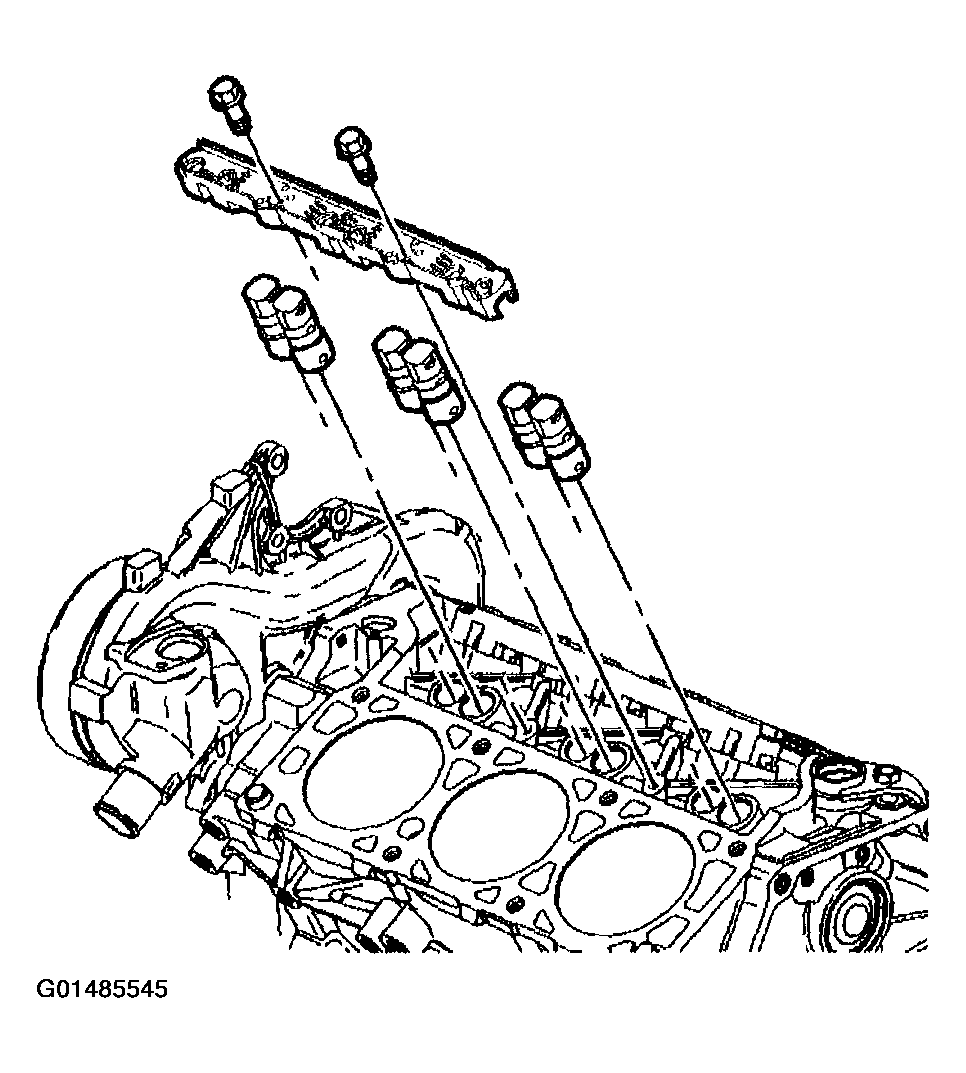

    Fig 1: Removing Valve Lifter Guides And Bolts
    G01485545Courtesy of GENERAL MOTORS CORP.
