Timing Chain and Sprockets Removal

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the camshaft sprocket bolt.
  2. Remove the camshaft sprocket and timing chain.

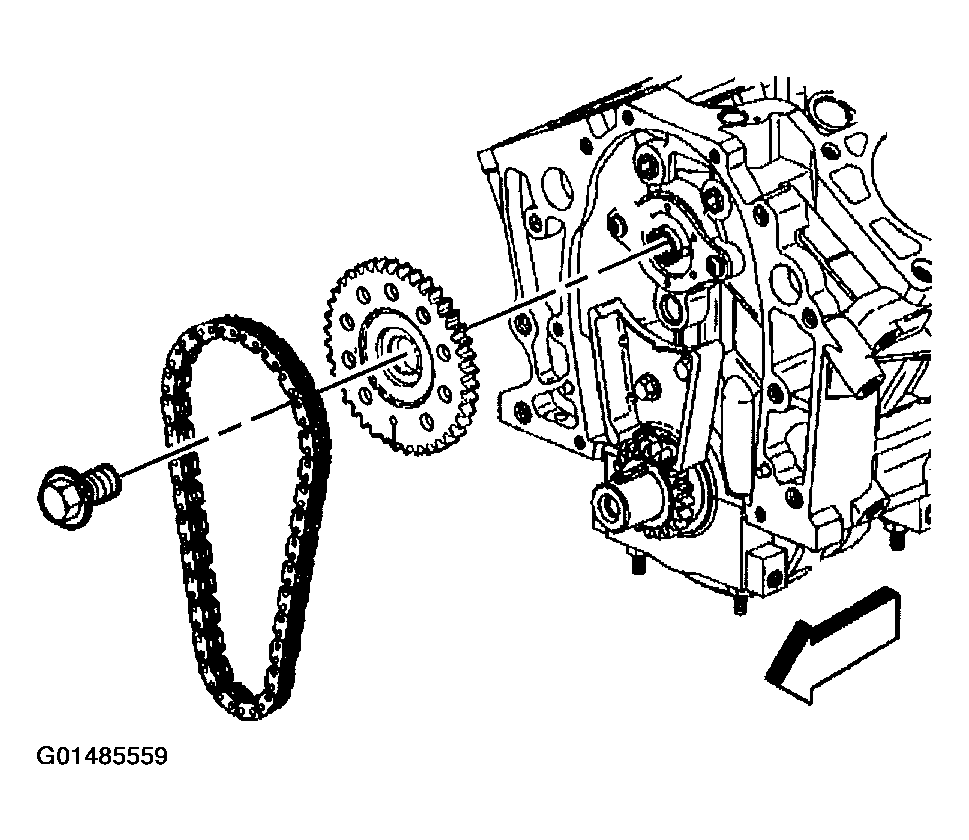

    Fig 1: Removing Camshaft Sprocket Bolt, Sprocket And Timing Chain
    G01485559Courtesy of GENERAL MOTORS CORP.
  3. Remove the crankshaft sprocket.

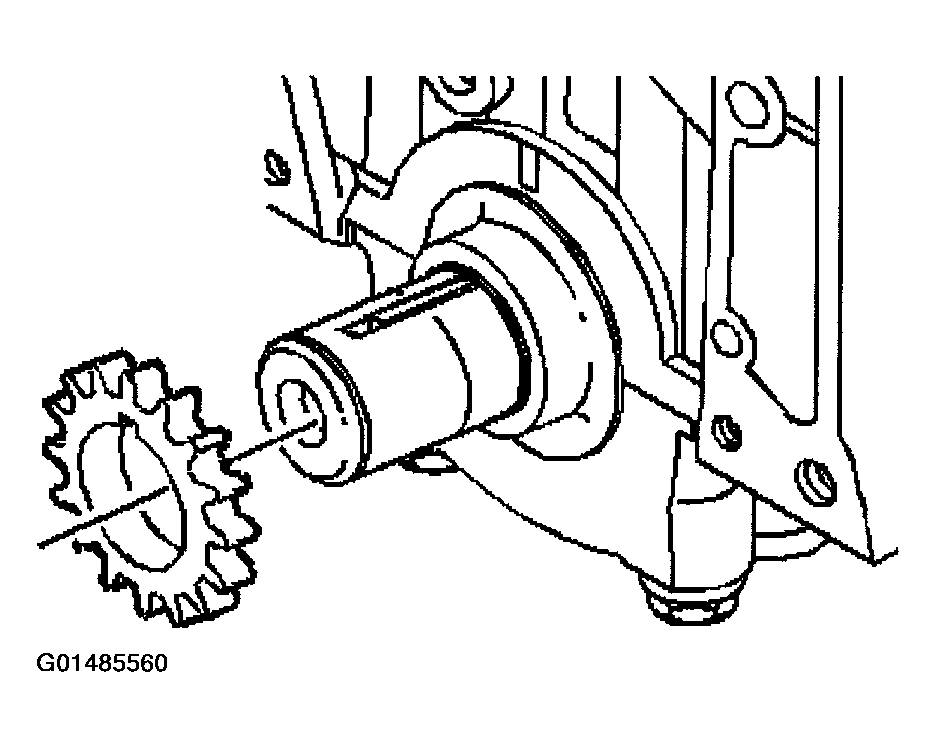

    Fig 2: Removing Crankshaft Sprocket
    G01485560Courtesy of GENERAL MOTORS CORP.
  4. Remove the timing chain dampener bolts.
  5. Remove the timing chain dampener.

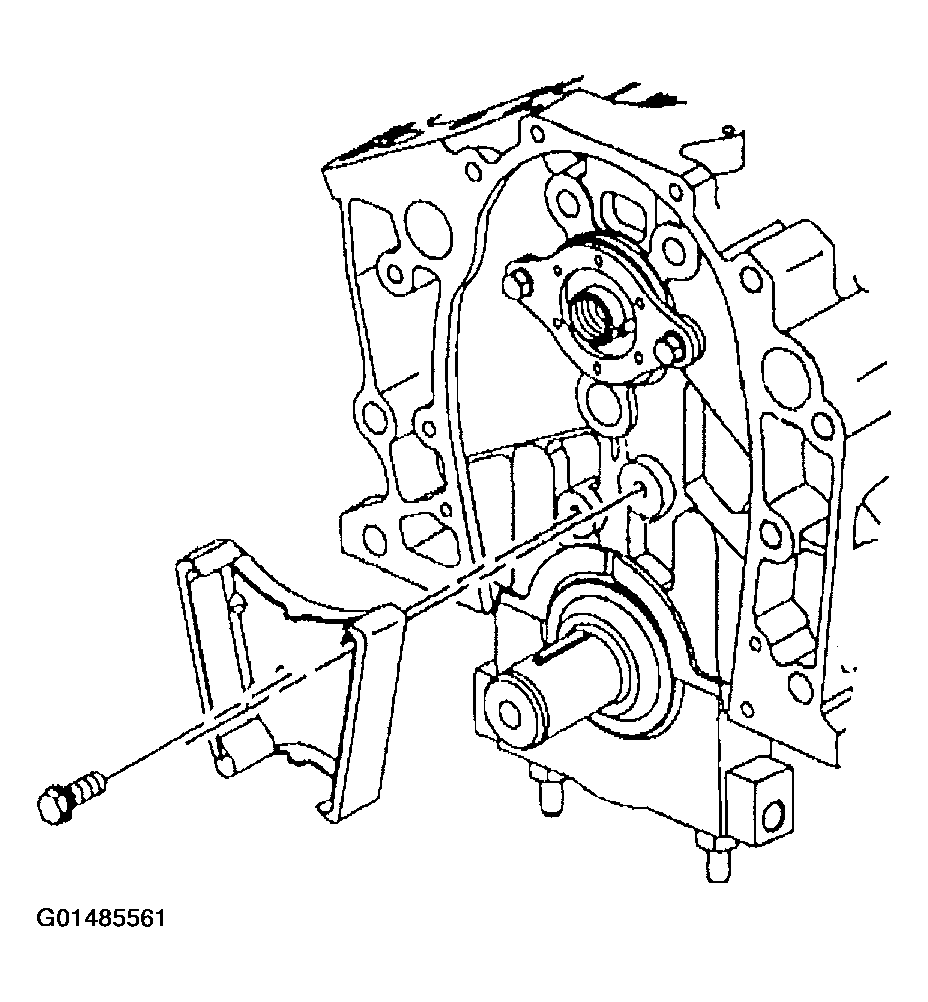

    Fig 3: Removing Timing Chain Dampener Bolts And Dampener
    G01485561Courtesy of GENERAL MOTORS CORP.
