Rotating the Engine for Service Access

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 41131  Engine Tilt Strap

  1. Remove the throttle body air inlet duct. Refer to ENGINE CONTROLS - REMOVAL & INSTALLATION & OVERHAUL  in Removal and Installation in Engine Performance.
  2. Set the park brake.
  3. Shift the transaxle into Neutral.
  4. Remove the engine mount strut bolts. Swing the engine mount struts aside. Refer to ENGINE MOUNT STRUT REPLACEMENT - LEFT   or ENGINE MOUNT STRUT REPLACEMENT - RIGHT   .
  5. Install the J 41131.
  6. Pull on the engine in order to rotate the engine forward.
  7. Tighten the J 41131.

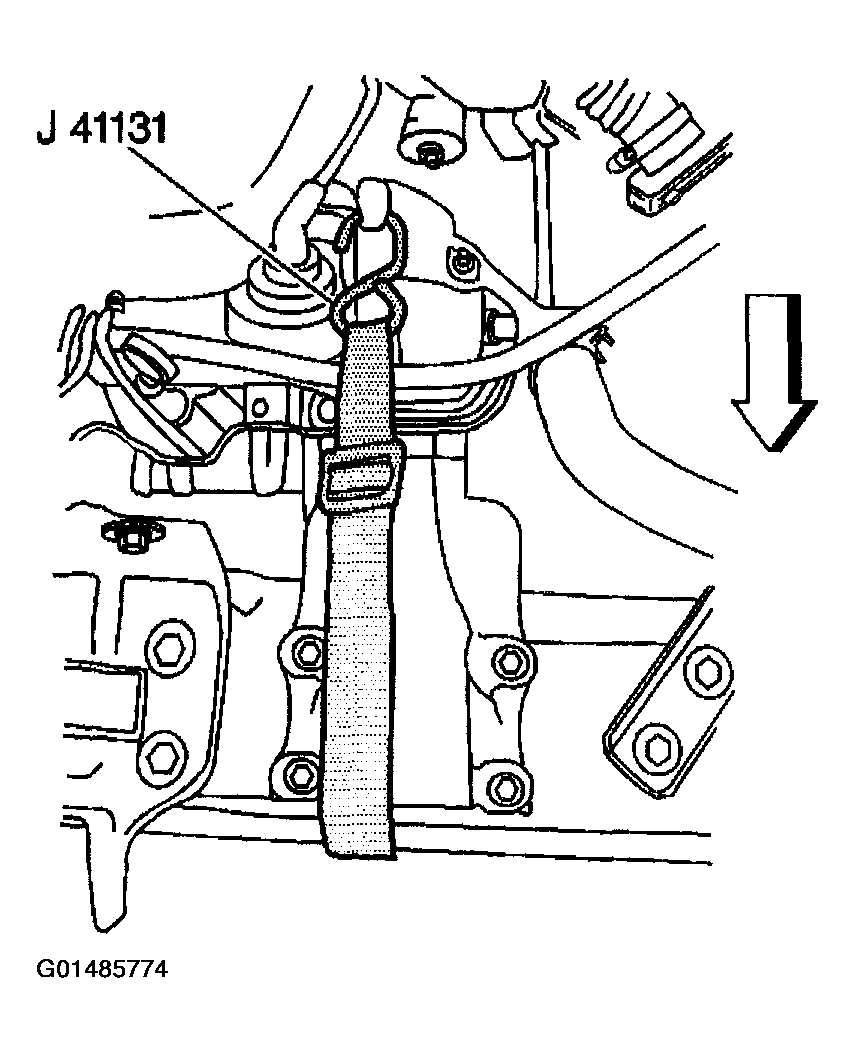

    Fig 1: Installing Engine Tilt Strap
    G01485774Courtesy of GENERAL MOTORS CORP.
