Oil Pump Removal

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil pump bolt.
  2. Remove the oil pump and oil pump drive shaft.

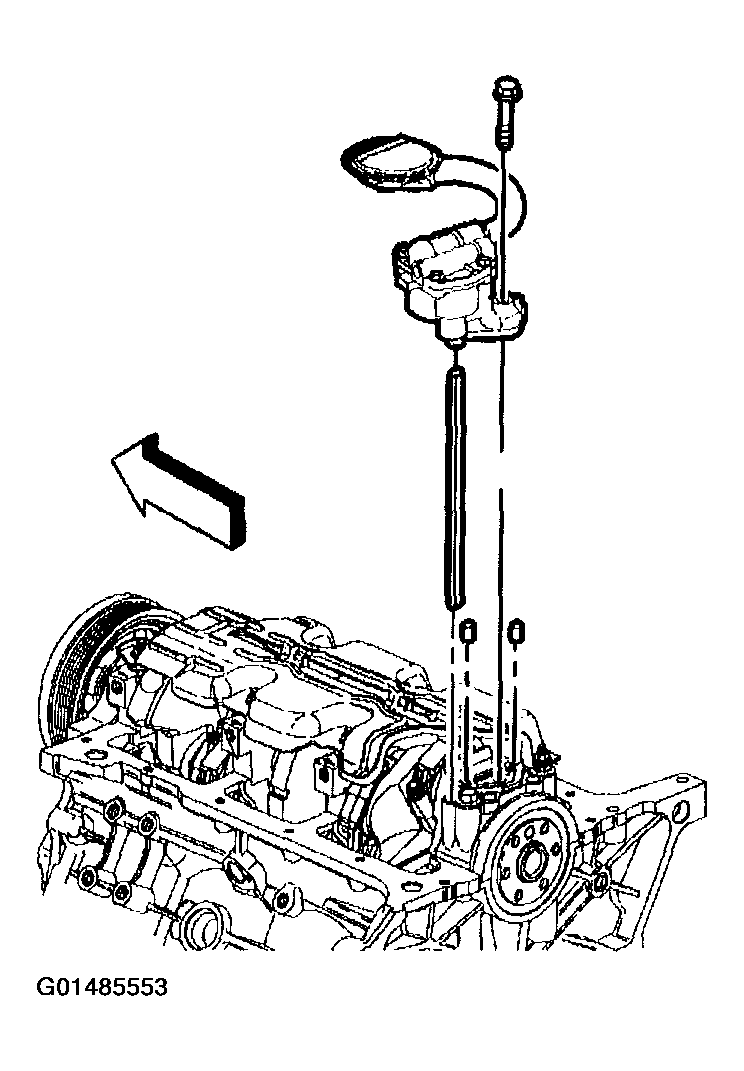

    Fig 1: Removing Oil Pump Bolt, Oil Pump And Oil Pump Drive Shaft
    G01485553Courtesy of GENERAL MOTORS CORP.
  3. Remove the crankshaft oil deflector nuts.
  4. Remove the crankshaft oil deflector.

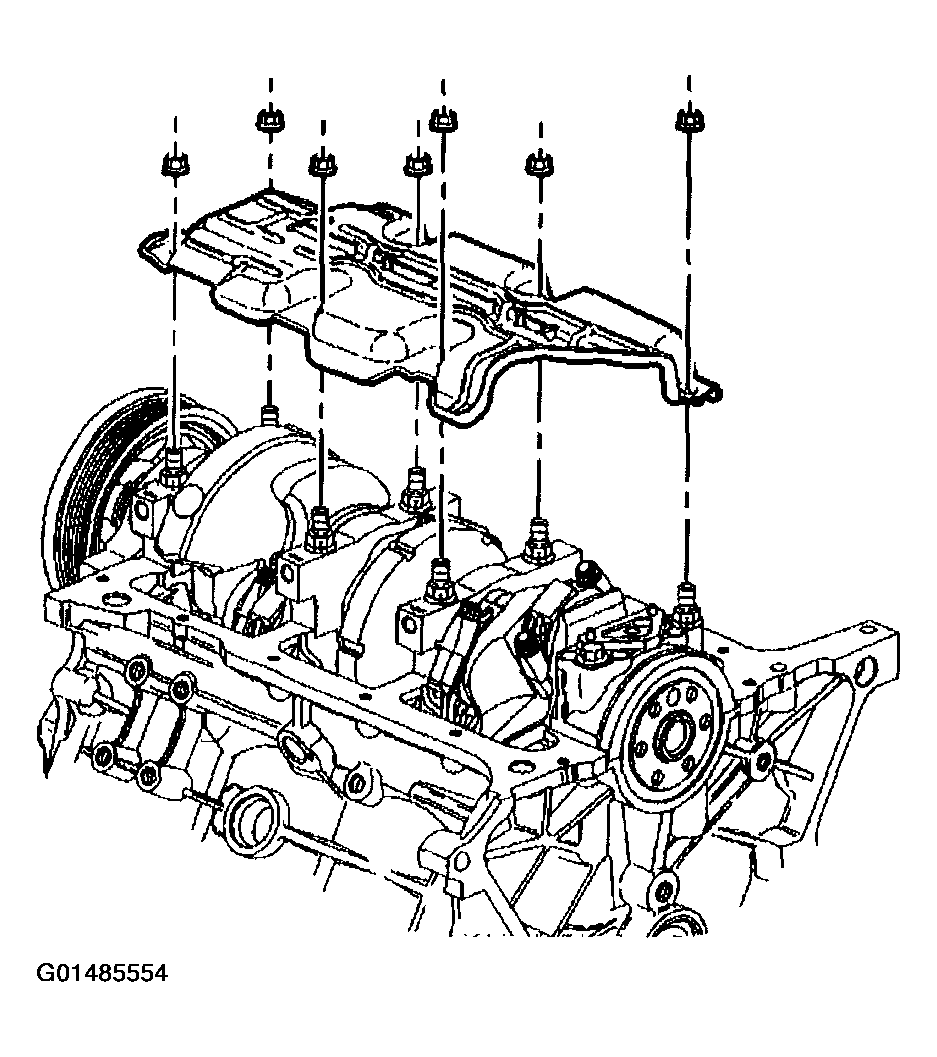

    Fig 2: Removing Crankshaft Oil Deflector Nuts And Crankshaft Oil Deflector
    G01485554Courtesy of GENERAL MOTORS CORP.
