Oil Pump Drive Removal

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil pump drive clamp bolt.
  2. Remove the oil pump drive clamp.
  3. Remove the oil pump drive.

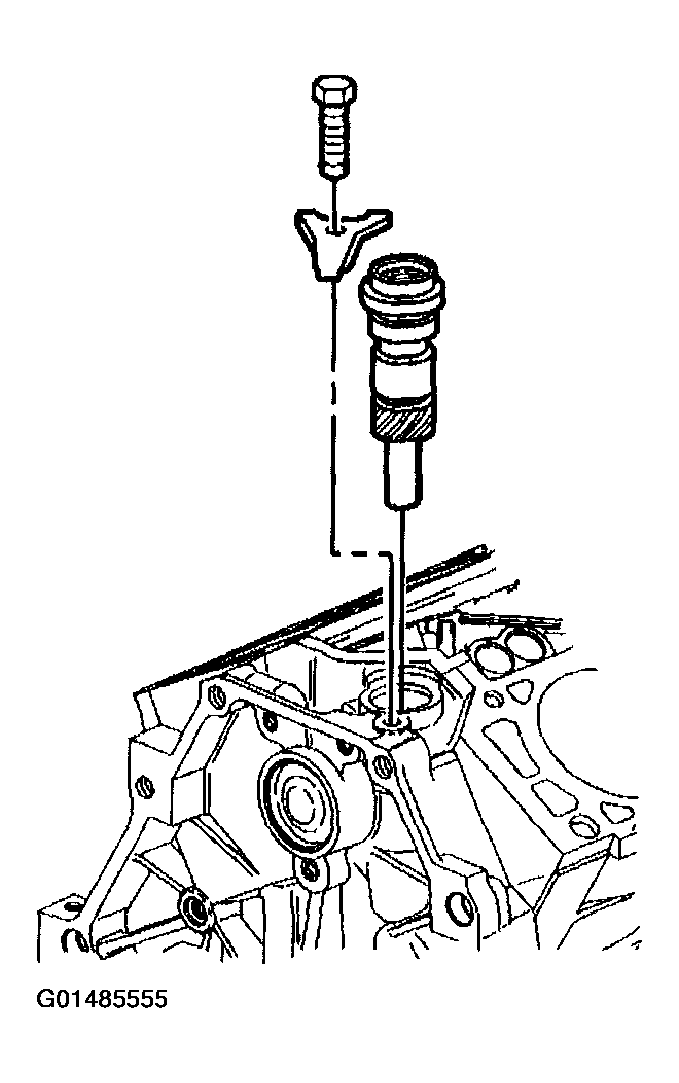

    Fig 1: Removing Oil Pump Drive Clamp Bolt, Oil Pump Drive Clamp And Oil Pump Drive
    G01485555Courtesy of GENERAL MOTORS CORP.
