Oil Pan Removal

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil level pressure sensor and sensor bolt.
  2. Remove the oil pan side bolts.
  3. Remove the oil pan bolts.
  4. Remove the oil pan.
  5. Remove the oil pan gasket.

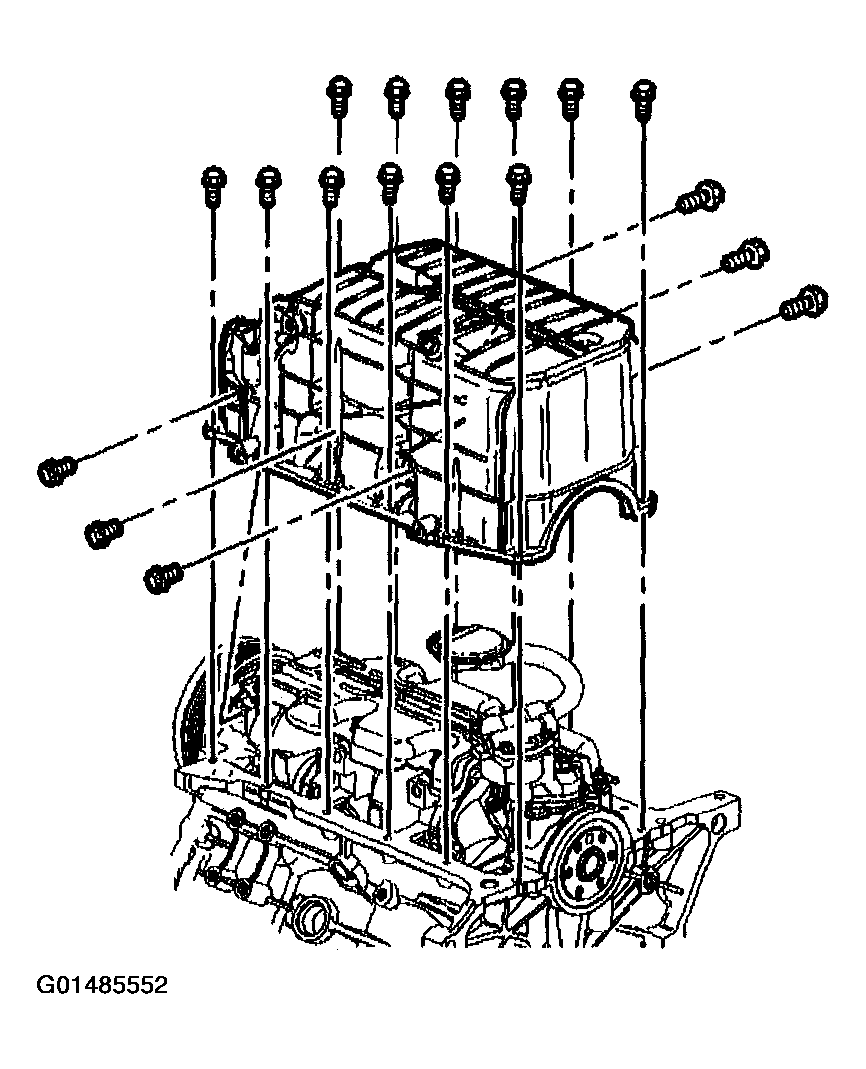

    Fig 1: Removing Oil Pan Bolts And Oil Pan
    G01485552Courtesy of GENERAL MOTORS CORP.
