Oil Pan Cleaning and Inspection

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil level sensor bolt, if equipped.
  2. Remove the oil level sensor, if equipped.
    CAUTION: Refer to CLEANING SOLVENT CAUTION in Cautions and Notices.
  3. Clean the oil pan in solvent. Remove all sludge and debris from the bottom of the oil pan.
  4. Inspect the oil pan sealing surfaces for damage. Replace the oil pan if necessary.
  5. Install the oil level sensor, if equipped.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  6. Install the oil level sensor bolt, if equipped.

    Tighten

    Tighten the oil level sensor bolt to 10 N.m (89 lb in).

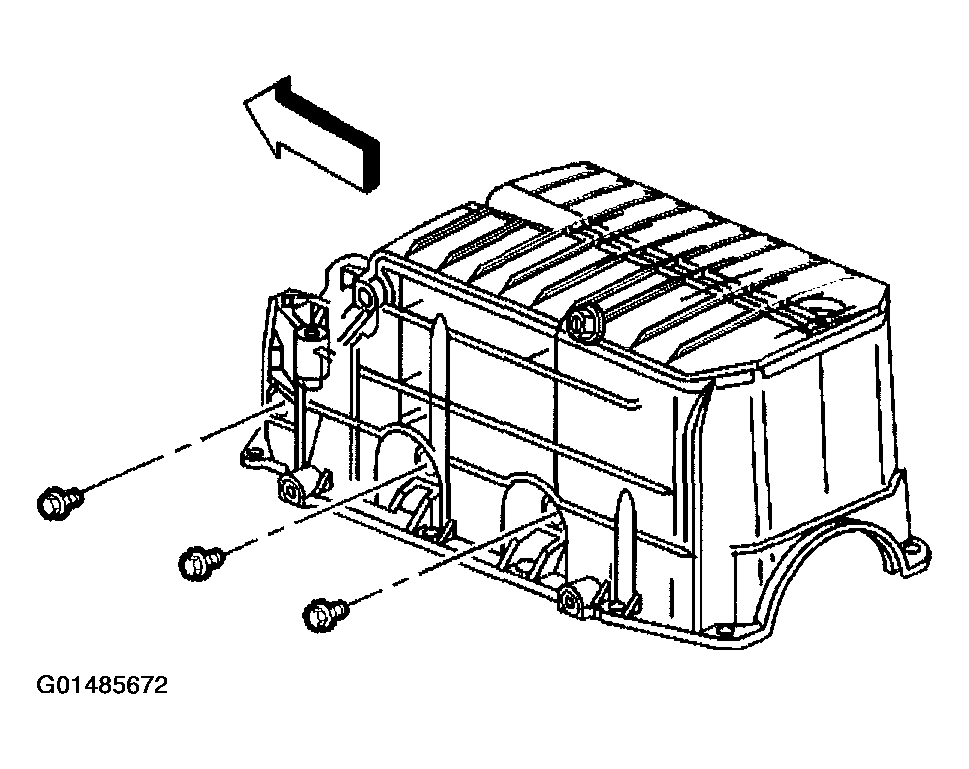

    Fig 1: Removing Oil Level Sensor Bolt
    G01485672Courtesy of GENERAL MOTORS CORP.
