Oil Level Indicator and Tube Removal

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the thermostat bypass pipe to throttle body nut (2).
  2. Remove the thermostat bypass pipe to throttle body hose clamps (1).
  3. Remove the thermostat bypass pipe to engine front cover bolt (4).
  4. Remove the thermostat bypass pipe hose clamp (5) and hose from pipe.
  5. Remove the thermostat bypass pipe (3).

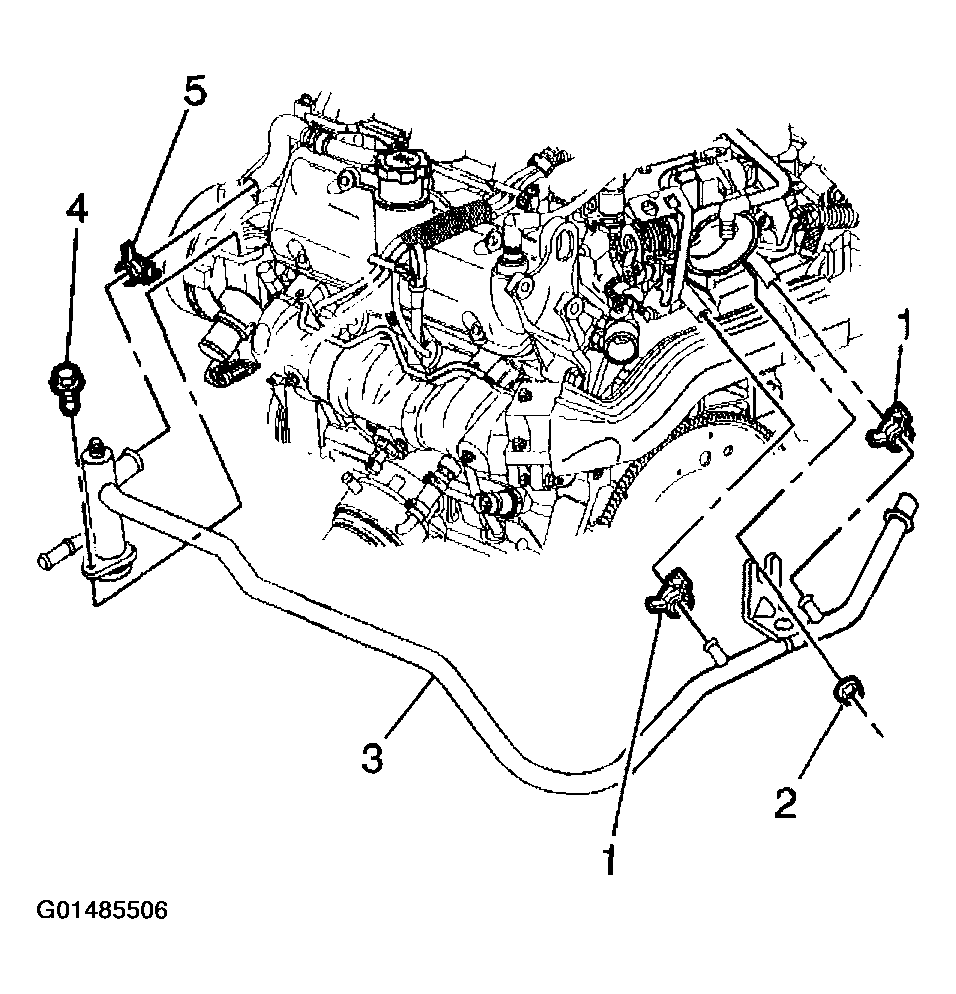

    Fig 1: Removing Thermostat Bypass Pipe To Throttle Body Hose Clamps
    G01485506Courtesy of GENERAL MOTORS CORP.
  6. Remove the oil level indicator tube bolt.
  7. Remove the oil level indicator and oil level indicator tube.

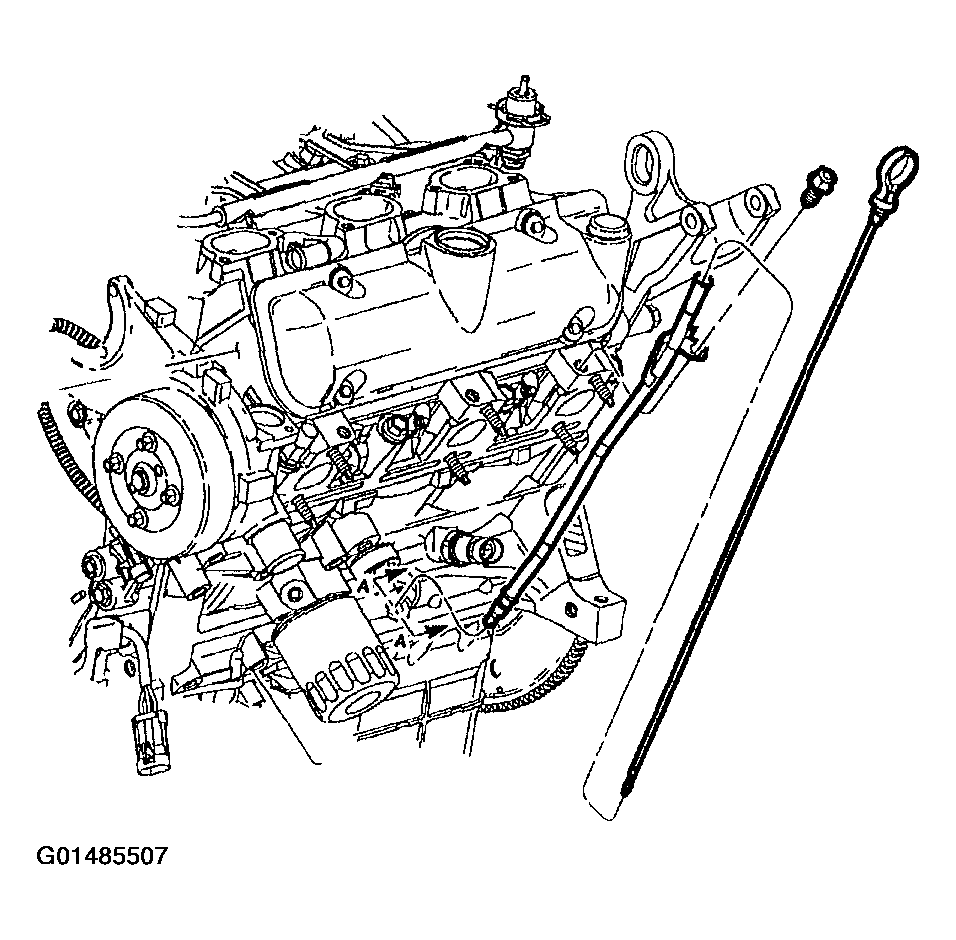

    Fig 2: Removing Oil Level Indicator And Oil Level Indicator Tube
    G01485507Courtesy of GENERAL MOTORS CORP.
