Oil Level Indicator and Tube Installation

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the oil level indicator and oil level indicator tube.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the oil level indicator tube bolt.

    Tighten

    Tighten the oil level indicator tube bolt to 25 N.m (18 lb ft).

  3. Install the thermostat bypass pipe (3).

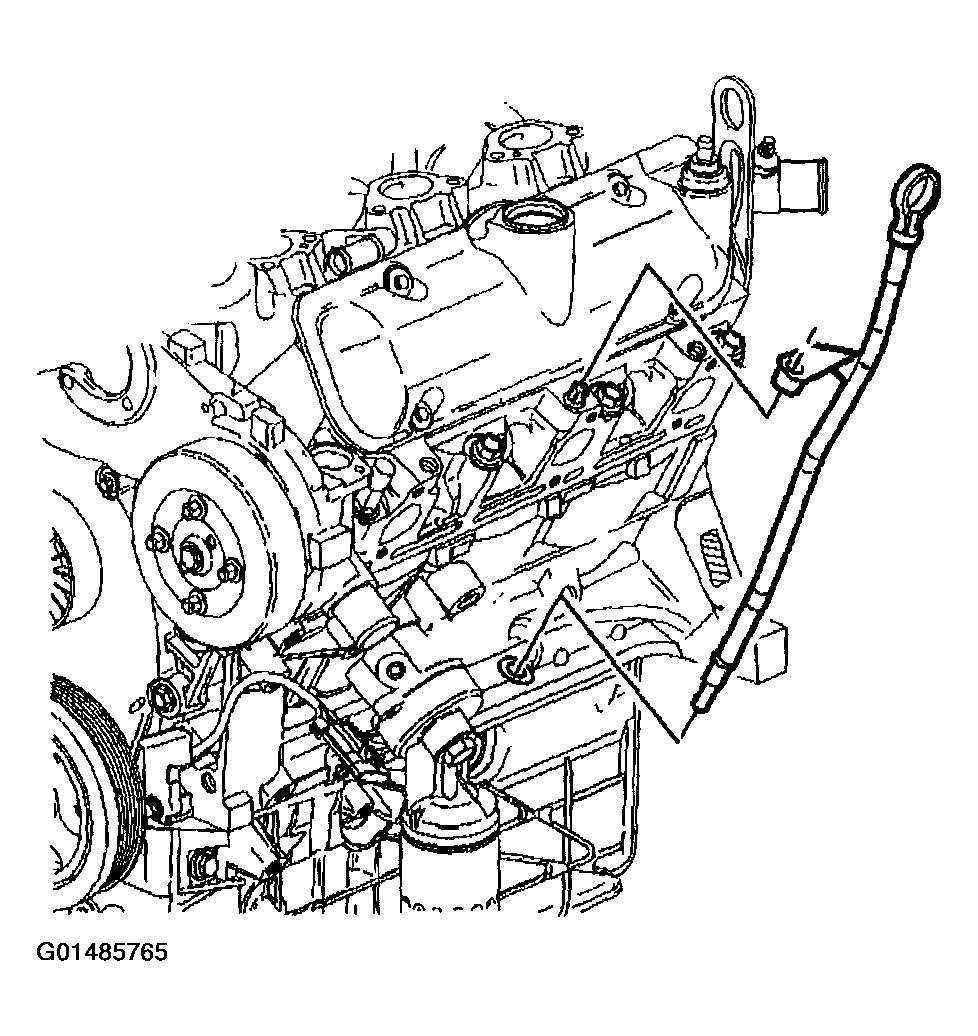

    Fig 1: Installing Oil Level Indicator And Oil Level Indicator Tube
    G01485765Courtesy of GENERAL MOTORS CORP.
  4. Install the thermostat bypass pipe (3) and hose clamp (5).
  5. Install the thermostat bypass pipe to engine front cover bolt (4).

    Tighten

    Tighten the thermostat bypass pipe to engine front cover bolt to 11 N.m (98 lb in).

  6. Install the thermostat bypass pipe (3) to throttle body hose clamps (1).
  7. Install the thermostat bypass pipe to throttle body nut (2).

    Tighten

    Tighten the thermostat bypass pipe to throttle body nut to 25 N.m (18 lb ft).

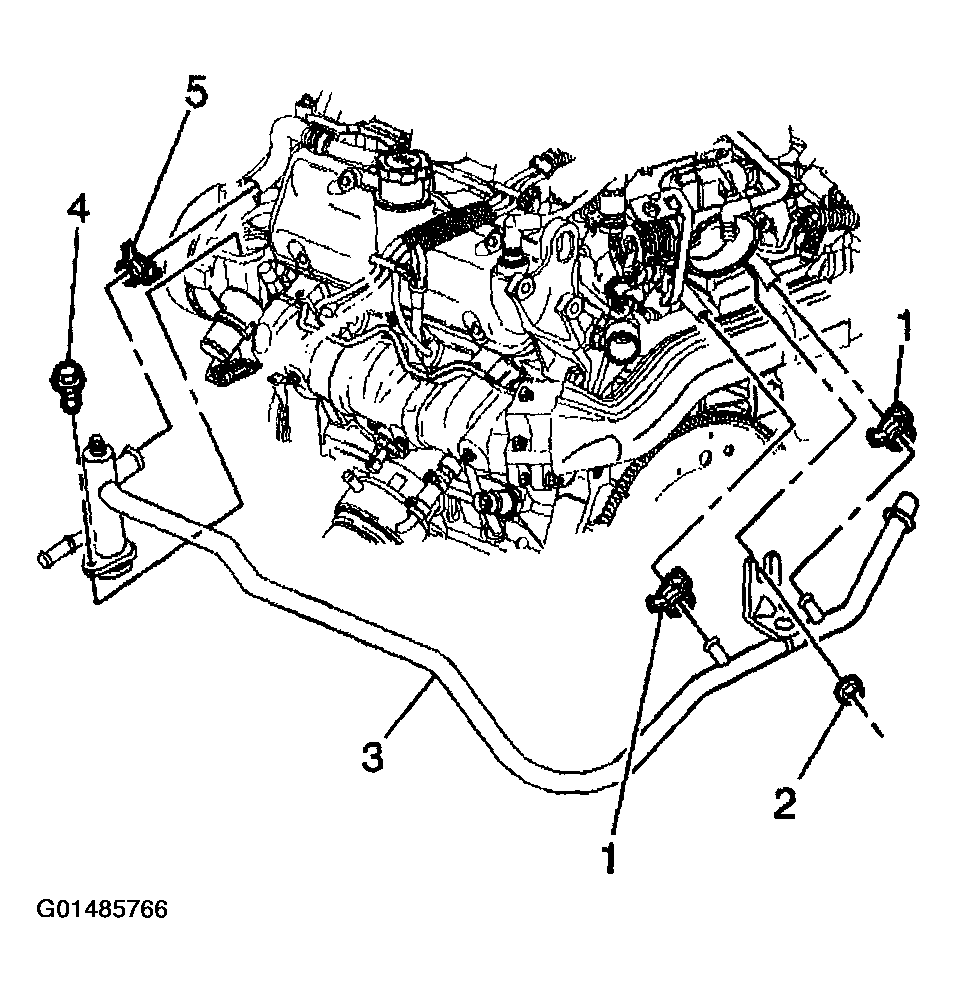

    Fig 2: Installing Thermostat Bypass Pipe And Hose Clamp
    G01485766Courtesy of GENERAL MOTORS CORP.
