Oil Cooler Removal

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the upper oil cooler outlet hose from the thermostat bypass pipe.
  2. Disconnect the lower oil cooler outlet hose from the oil cooler.
  3. Remove the oil cooler outlet hoses and pipe.

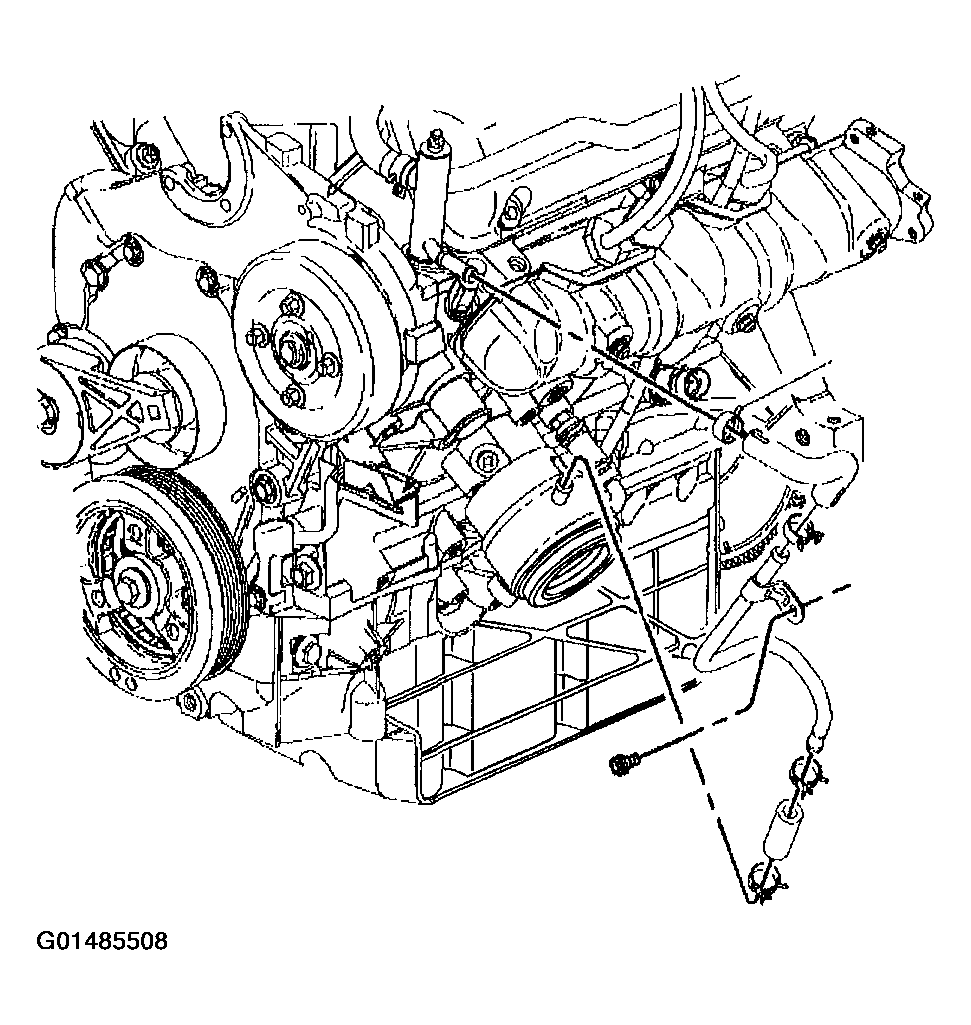

    Fig 1: Removing Oil Cooler Outlet Hoses And Pipe
    G01485508Courtesy of GENERAL MOTORS CORP.
  4. Remove the oil cooler connector.

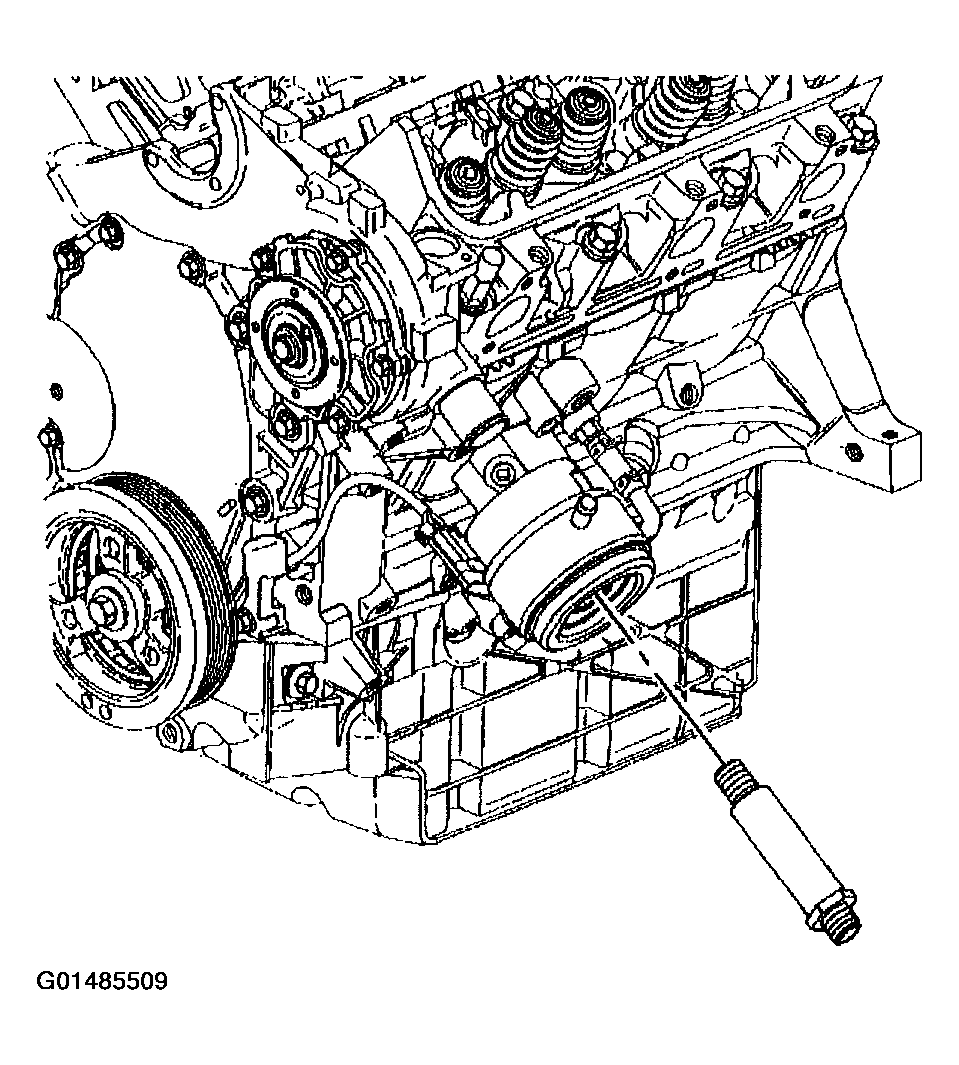

    Fig 2: Removing Oil Cooler Connector
    G01485509Courtesy of GENERAL MOTORS CORP.
  5. Remove the oil cooler inlet hose clamp and oil cooler.

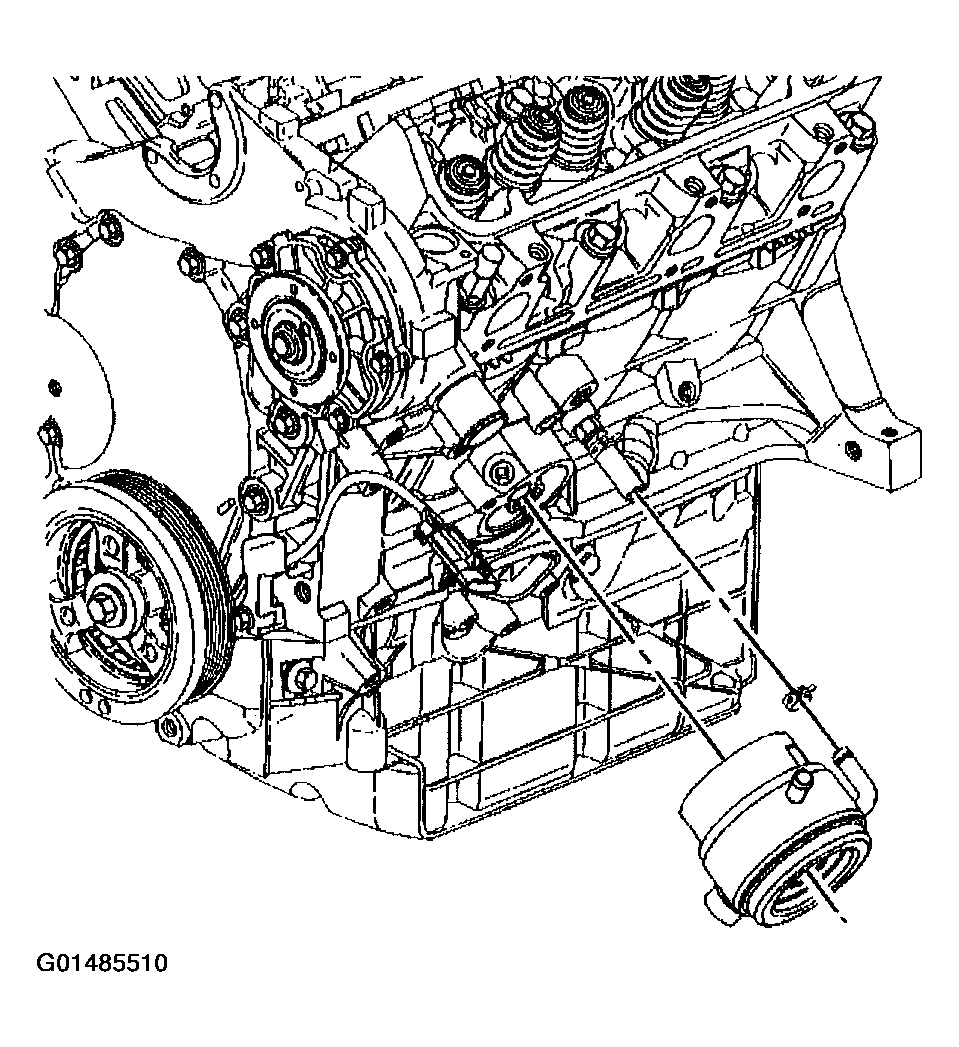

    Fig 3: Removing Oil Cooler Inlet Hose Clamp And Oil Cooler
    G01485510Courtesy of GENERAL MOTORS CORP.
  6. Remove the oil cooler inlet hose and oil cooler inlet hose clamp from the oil cooler hose fitting.

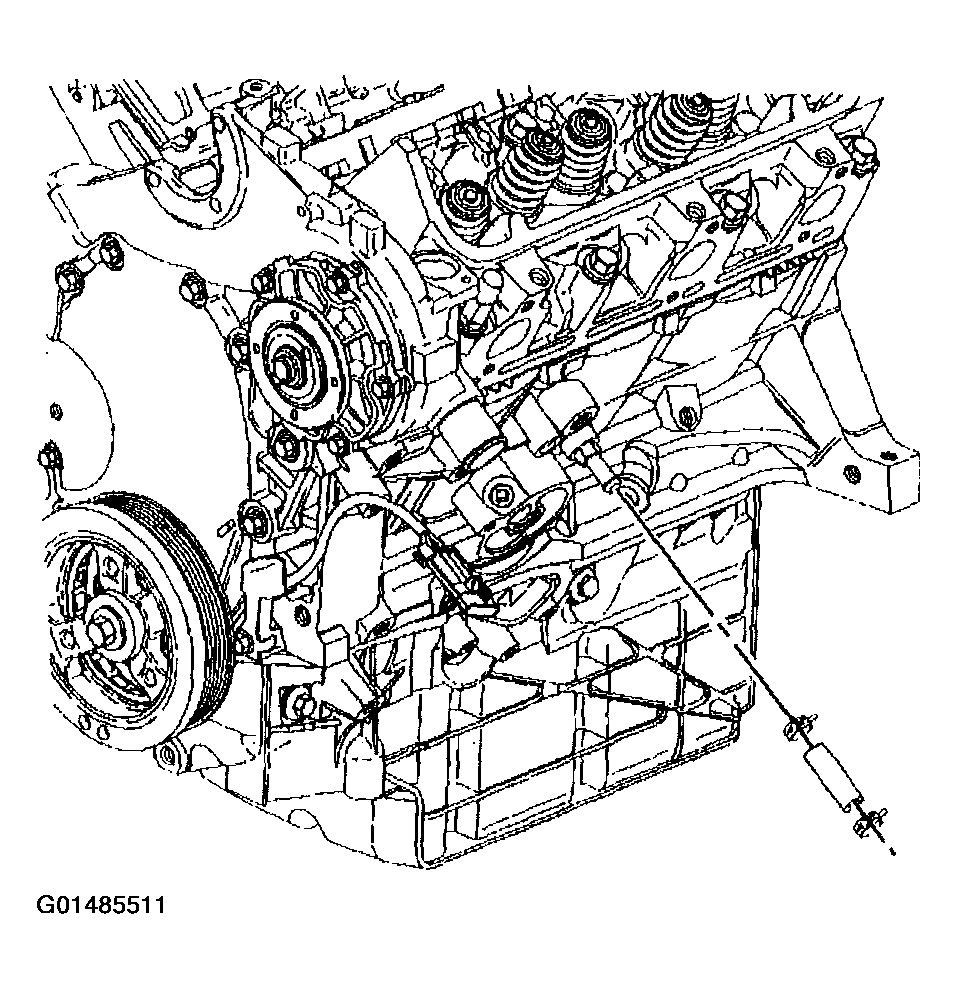

    Fig 4: Removing Oil Cooler Inlet Hose And Oil Cooler Inlet Hose Clamp
    G01485511Courtesy of GENERAL MOTORS CORP.
  7. Remove the oil cooler hose fitting.
    Fig 5: Removing Oil Cooler Hose Fitting
    G01485512Courtesy of GENERAL MOTORS CORP.
