Oil Cooler Installation

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the cooler hose fitting.

    Tighten

    Tighten the oil cooler hose fitting to 19 N.m (14 lb ft).

    Fig 1: Installing Cooler Hose Fitting
    G01485760Courtesy of GENERAL MOTORS CORP.
  2. Install the oil cooler inlet hose clamp and the oil cooler inlet hose onto the oil cooler hose fitting.

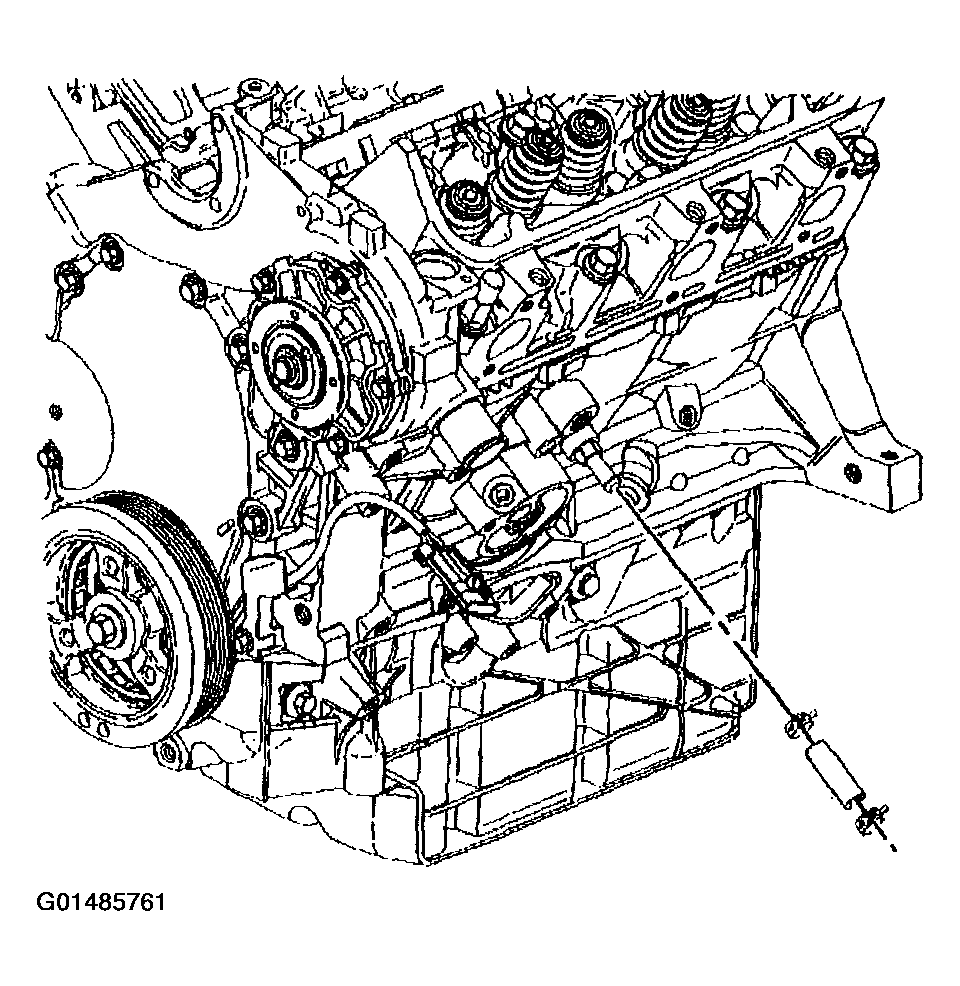

    Fig 2: Installing Oil Cooler Inlet Hose Clamp
    G01485761Courtesy of GENERAL MOTORS CORP.
  3. Install the oil cooler inlet hose clamp and oil cooler.

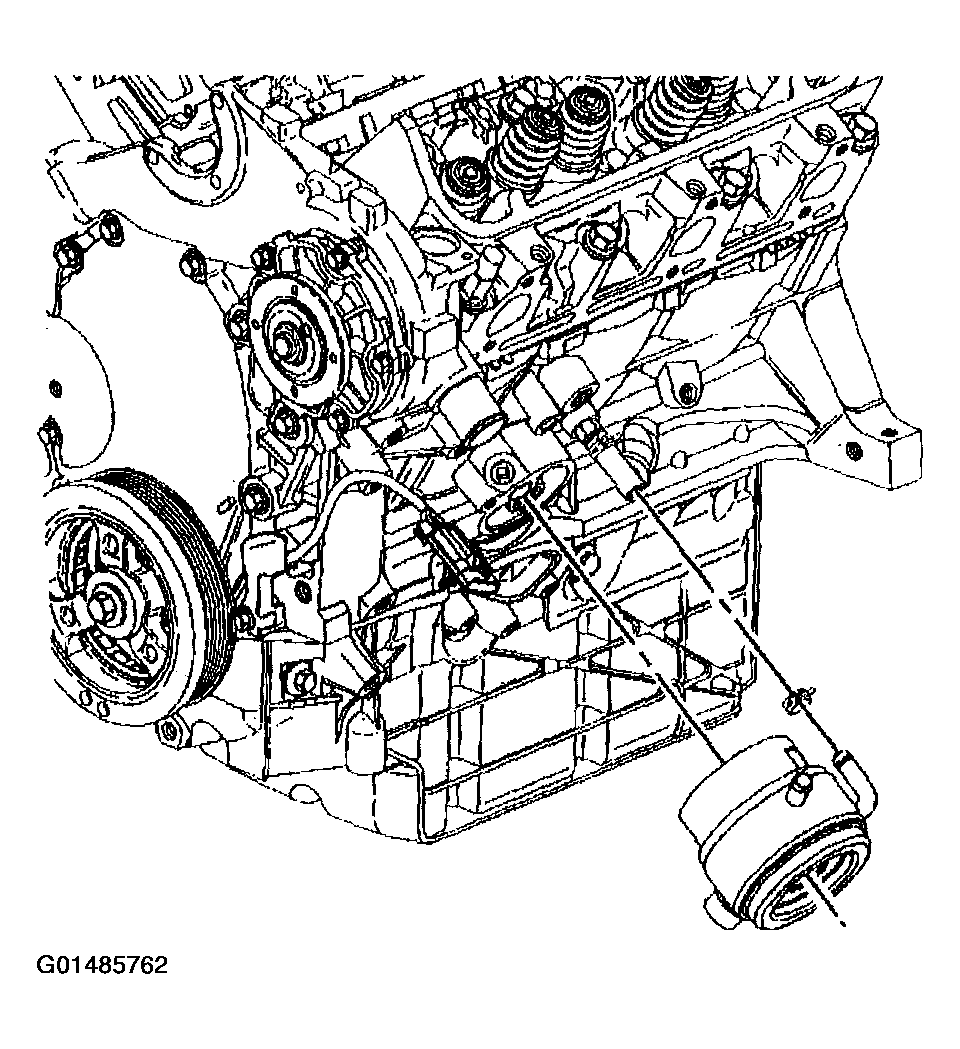

    Fig 3: Installing Oil Cooler Inlet Hose Clamp And Oil Cooler
    G01485762Courtesy of GENERAL MOTORS CORP.
  4. Install the oil cooler connector.

    Tighten

    Tighten the oil cooler connector to 50 N.m (37 lb ft).

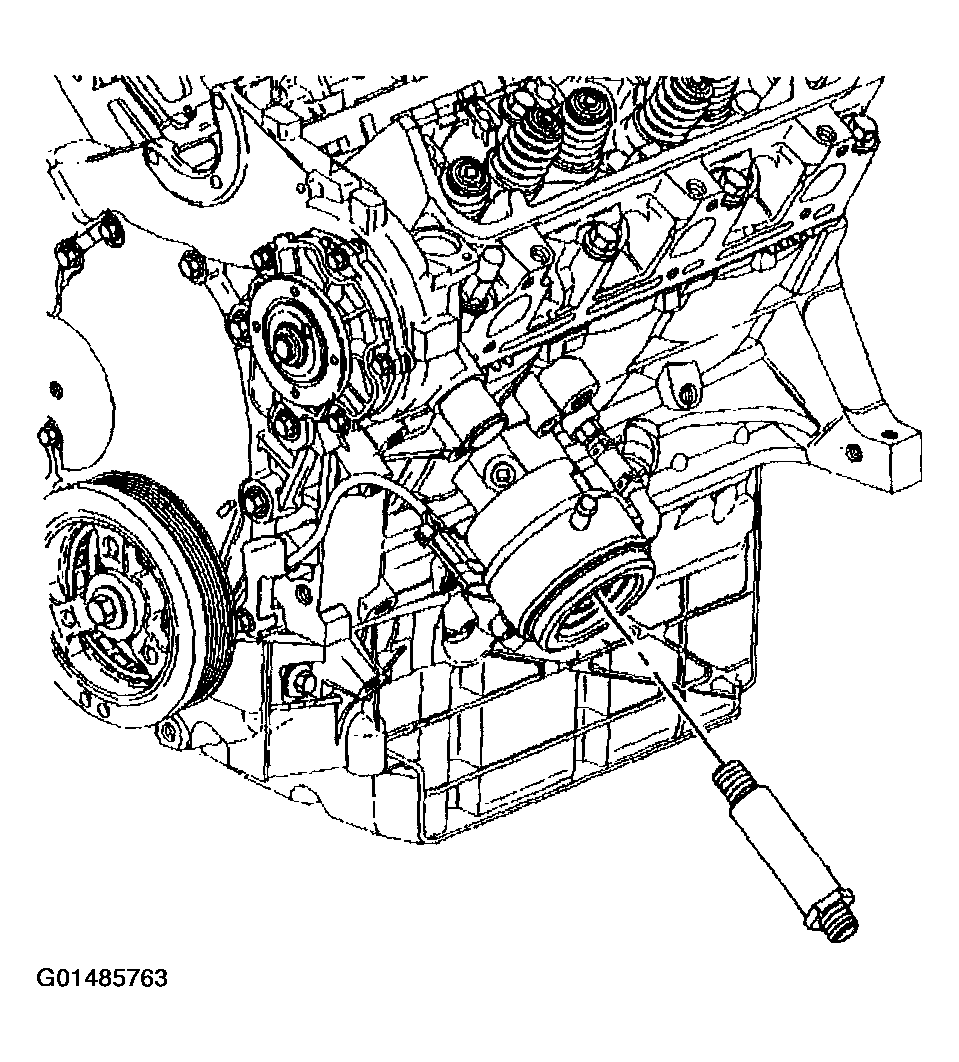

    Fig 4: Installing Oil Cooler Connector
    G01485763Courtesy of GENERAL MOTORS CORP.
  5. Install the oil cooler outlet hoses and pipe.
  6. Connect the lower oil cooler outlet hose to the oil cooler.
  7. Connect the upper oil cooler hose to the thermostat bypass pipe.

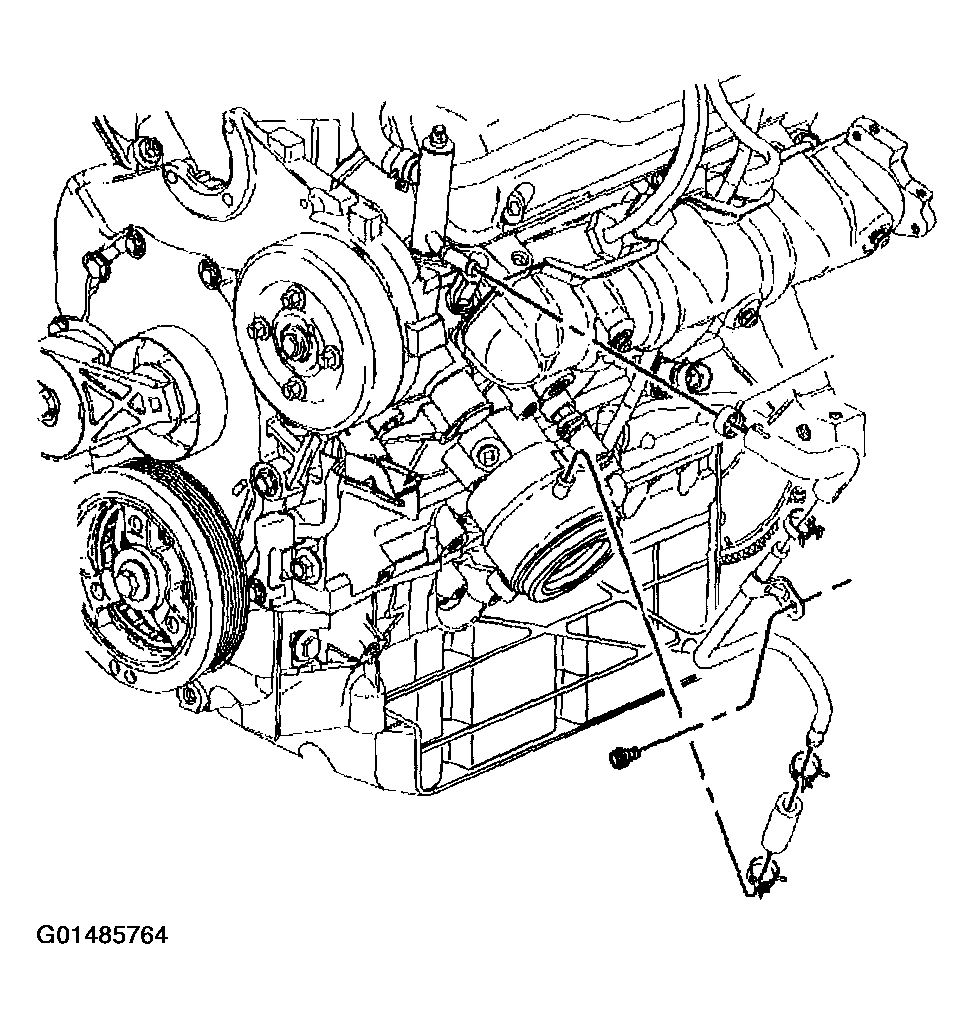

    Fig 5: Installing Oil Cooler Outlet Hoses And Pipe
    G01485764Courtesy of GENERAL MOTORS CORP.
