Intake Manifold Removal - Upper

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the MAP sensor electrical connector.
  2. Remove the MAP sensor bolts.
  3. Remove the MAP sensor from bracket.
  4. Remove the MAP sensor bracket and bracket bolt.

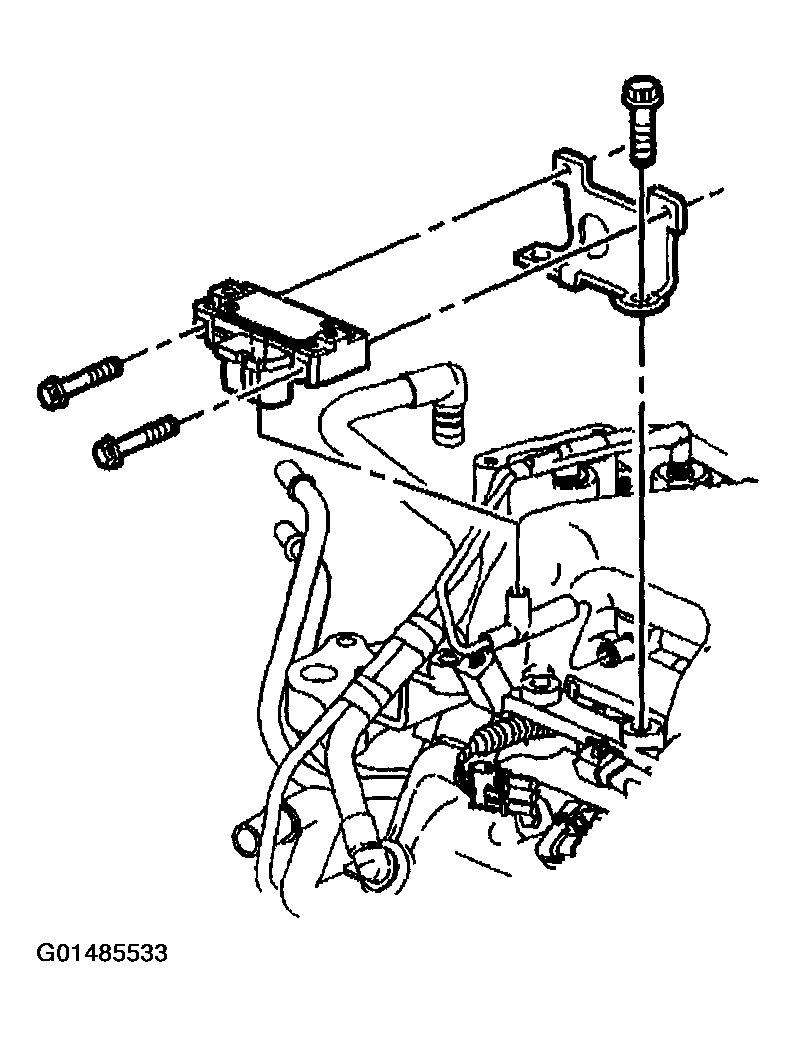

    Fig 1: Removing MAP Sensor, Bracket And Bracket Bolt
    G01485533Courtesy of GENERAL MOTORS CORP.
  5. Remove the EGR valve pipe and bolt from the EGR valve.
  6. Remove the EGR valve bolts.
  7. Remove the EGR valve and gasket.

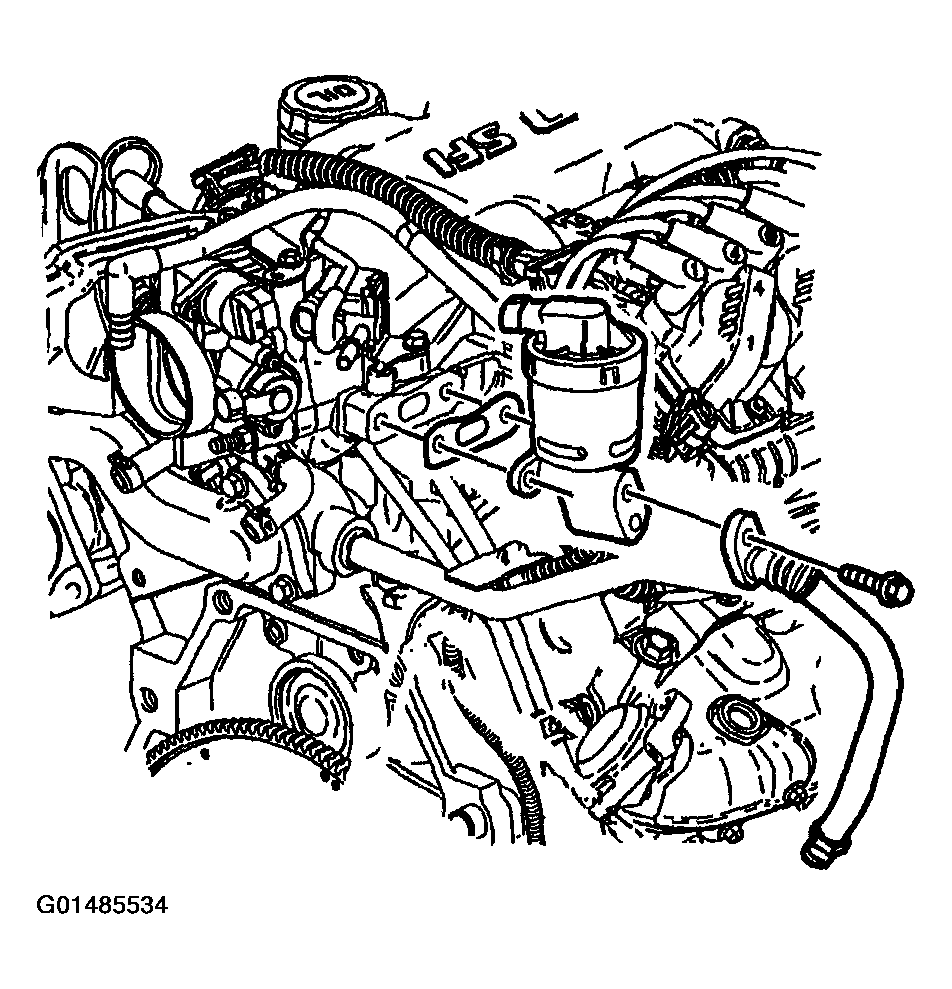

    Fig 2: Removing EGR Valve And Gasket
    G01485534Courtesy of GENERAL MOTORS CORP.
  8. Remove the vacuum harness assembly.

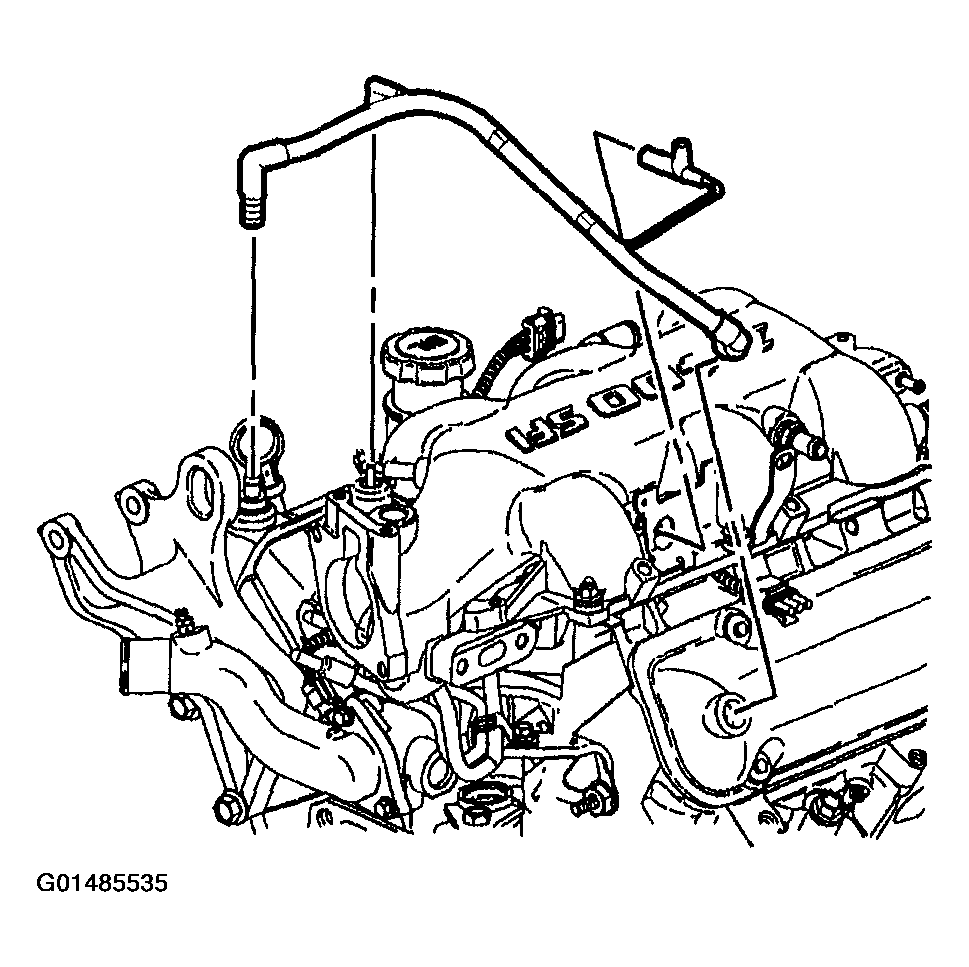

    Fig 3: Removing Vacuum Harness Assembly
    G01485535Courtesy of GENERAL MOTORS CORP.
  9. Remove the accelerator cable bracket and bracket bolts.

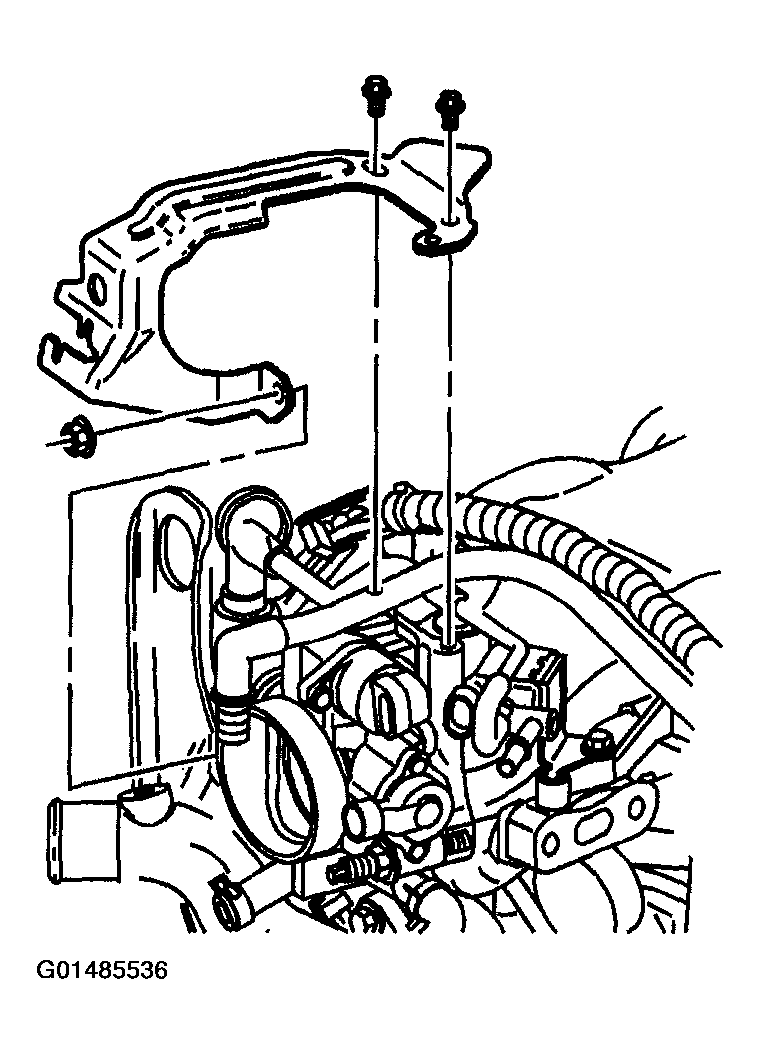

    Fig 4: Removing Accelerator Cable Bracket And Bracket Bolts
    G01485536Courtesy of GENERAL MOTORS CORP.
  10. Remove the purge valve bracket bolt, hose and valve assembly.
  11. Remove the throttle body bolts.
  12. Remove the throttle body and gasket.
  13. Remove the upper intake manifold bolts.
  14. Remove the upper intake manifold and gaskets.

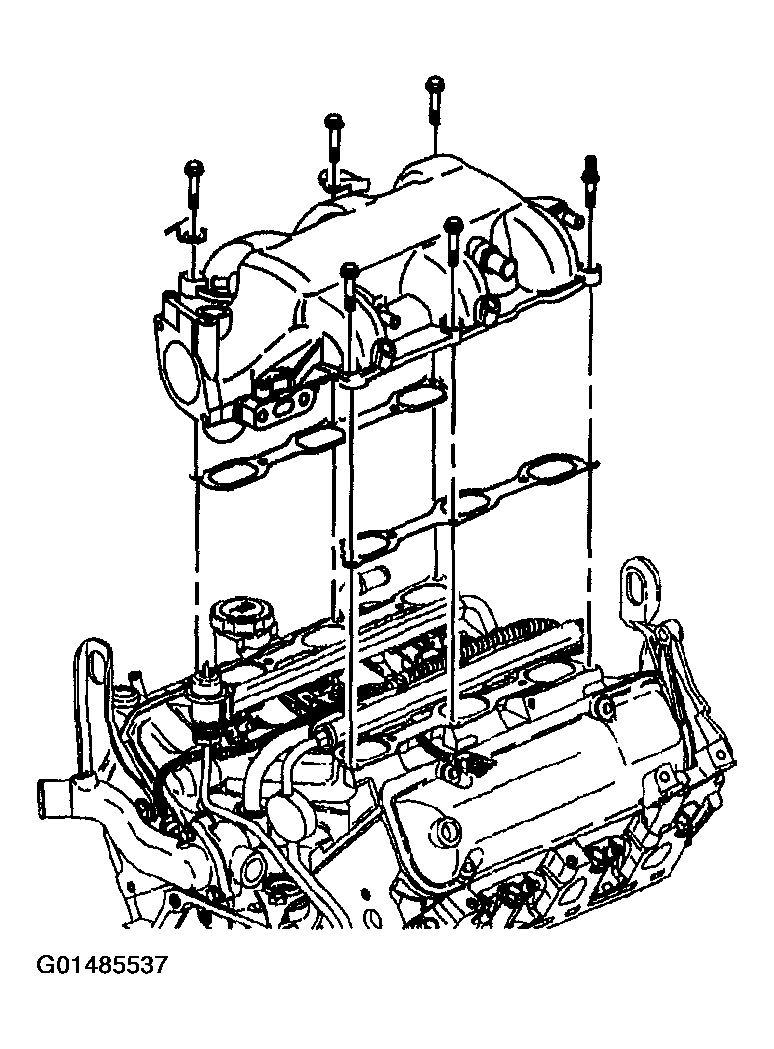

    Fig 5: Removing Upper Intake Manifold And Gaskets
    G01485537Courtesy of GENERAL MOTORS CORP.
