Intake Manifold Removal - Lower

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fuel feed and return pipe retaining clip bolt.
  2. Remove the fuel feed and return pipe retaining clip.

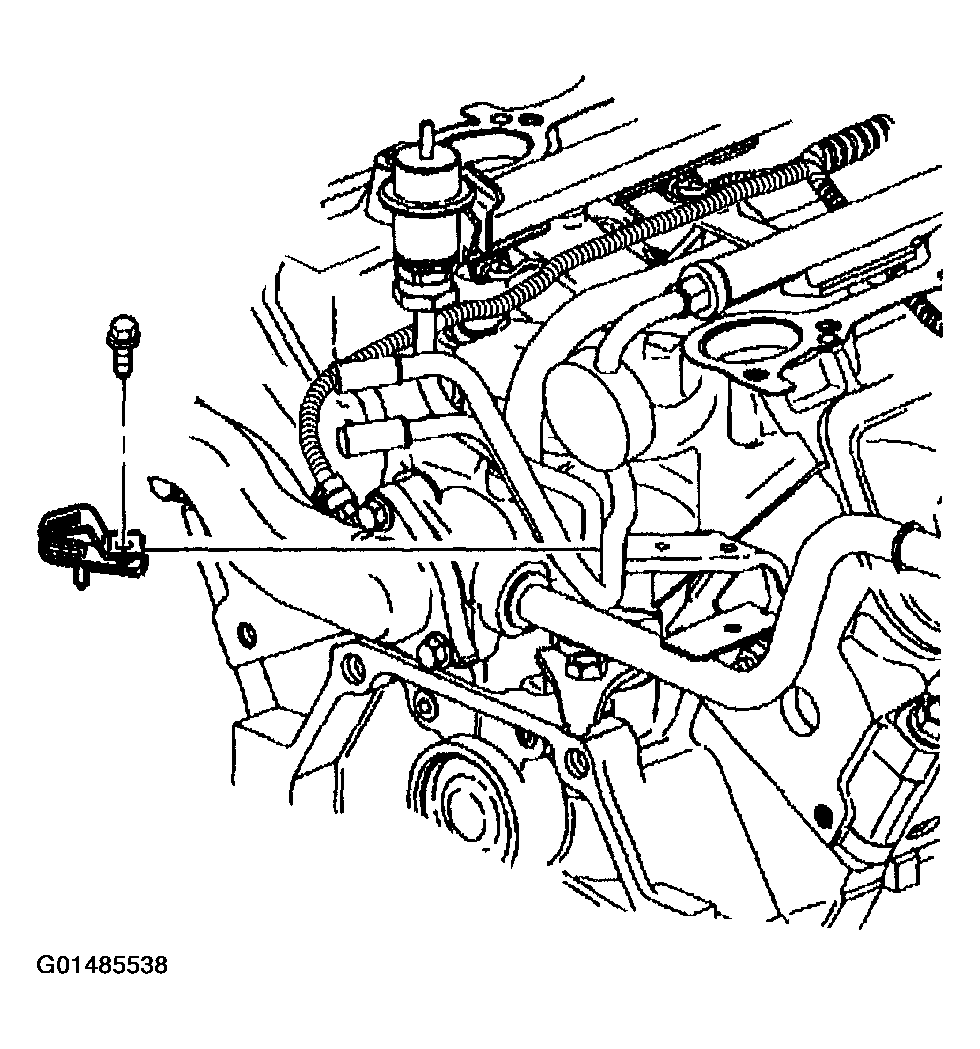

    Fig 1: Removing Fuel Feed And Return Pipe Retaining Clip And Bolt
    G01485538Courtesy of GENERAL MOTORS CORP.
  3. Remove the fuel injector rail bolts.
  4. Remove the fuel injector rail assembly.

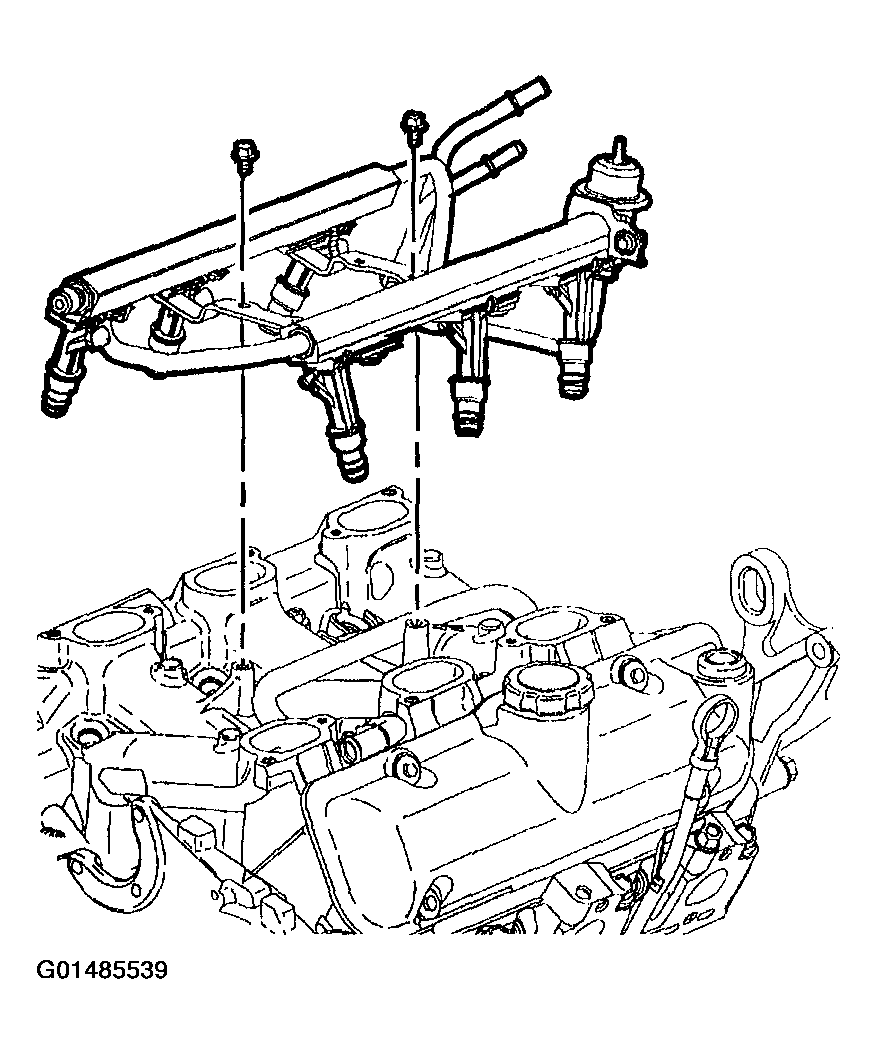

    Fig 2: Removing Fuel Injector Rail Assembly And Bolts
    G01485539Courtesy of GENERAL MOTORS CORP.
  5. Remove the heater inlet pipe nut.
  6. Remove the heater inlet pipe.

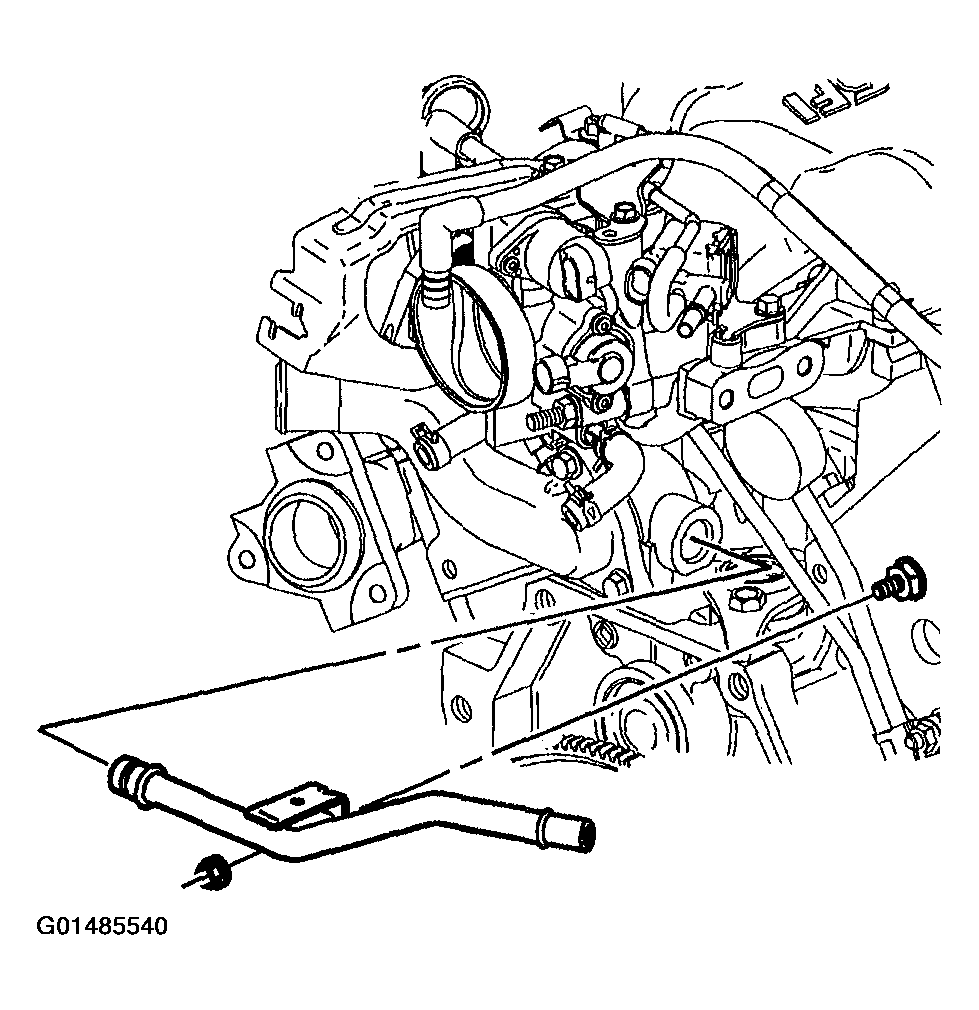

    Fig 3: Removing Heater Inlet Pipe And Nut
    G01485540Courtesy of GENERAL MOTORS CORP.
  7. Remove the lower intake manifold bolts.
  8. Remove the lower intake manifold.

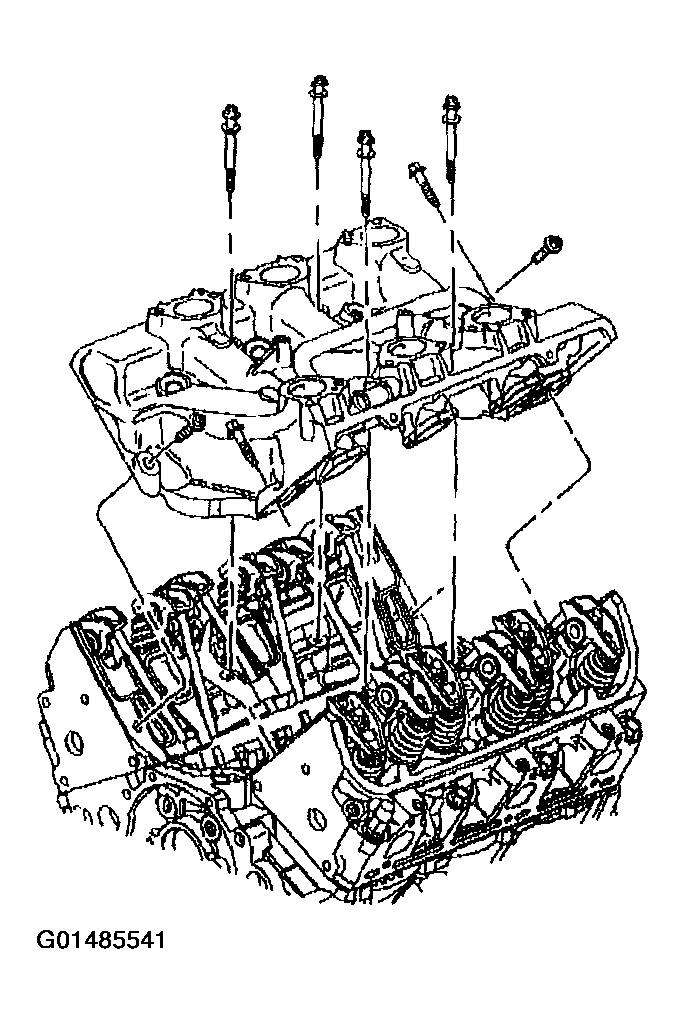

    Fig 4: Removing Lower Intake Manifold And Bolts
    G01485541Courtesy of GENERAL MOTORS CORP.
