Exhaust Manifold Removal - Right

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the spark plug wires.
  2. Remove the spark plugs.
  3. Remove the EGR pipe from the exhaust manifold.
  4. Remove the heated oxygen sensor.

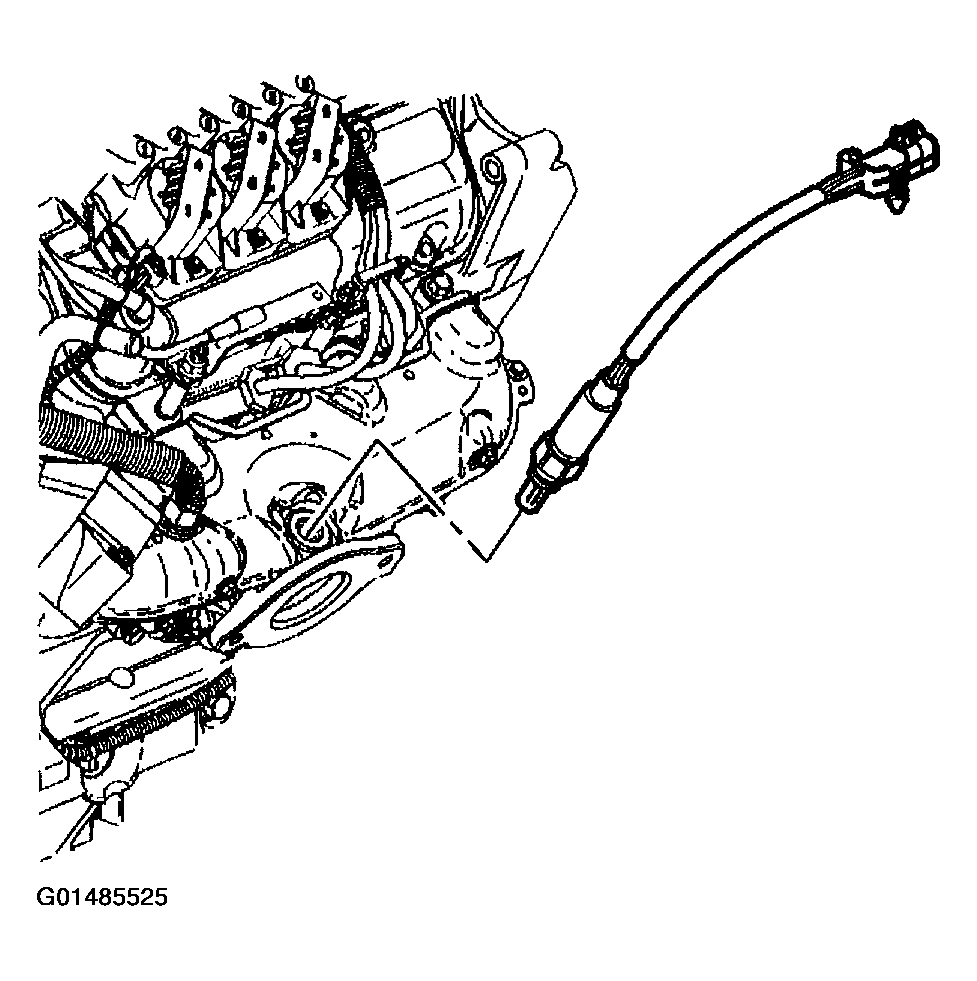

    Fig 1: Removing EGR Pipe From Exhaust Manifold
    G01485525Courtesy of GENERAL MOTORS CORP.
  5. Remove the exhaust manifold heat shield bolts.
  6. Remove the exhaust manifold heat shields.

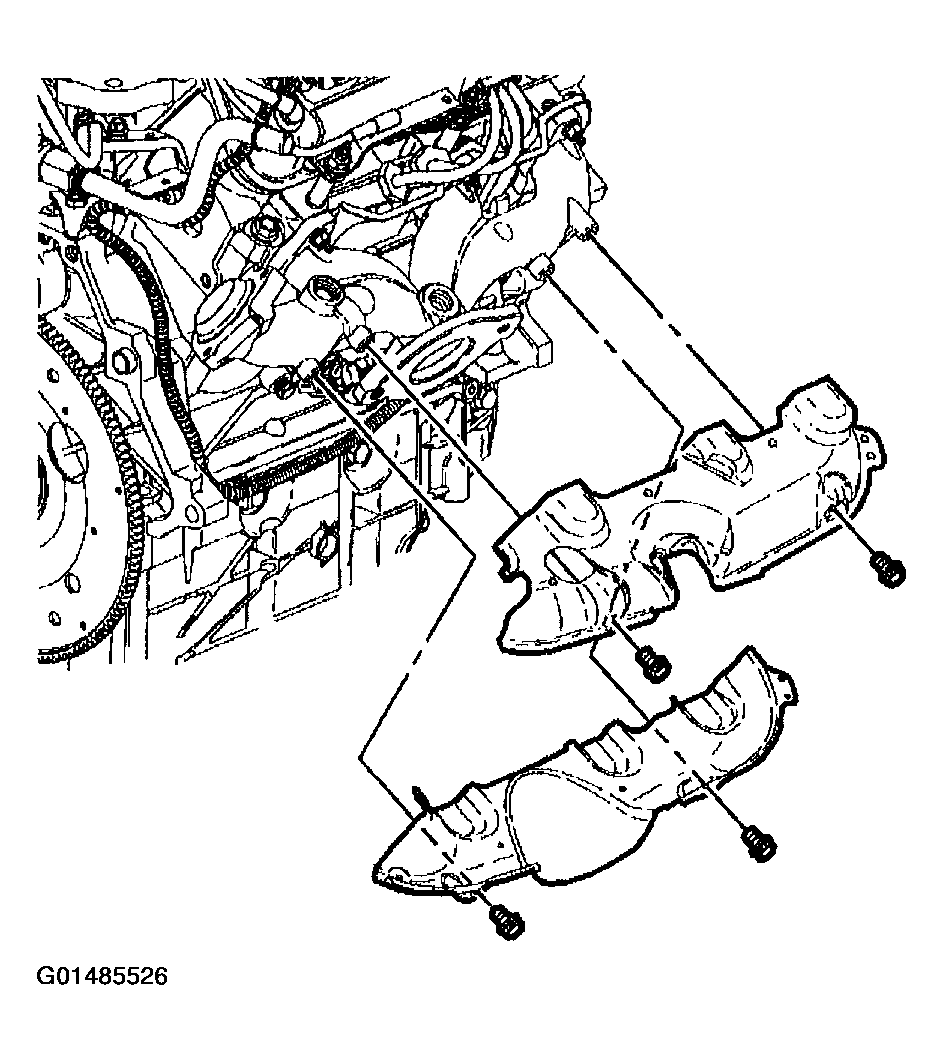

    Fig 2: Removing Exhaust Manifold Heat Shield Bolts And Exhaust Manifold Heat Shield
    G01485526Courtesy of GENERAL MOTORS CORP.
  7. Remove the exhaust manifold nuts.
  8. Remove the exhaust manifold.
  9. Remove the exhaust manifold gasket.
  10. Remove the exhaust studs, if required.

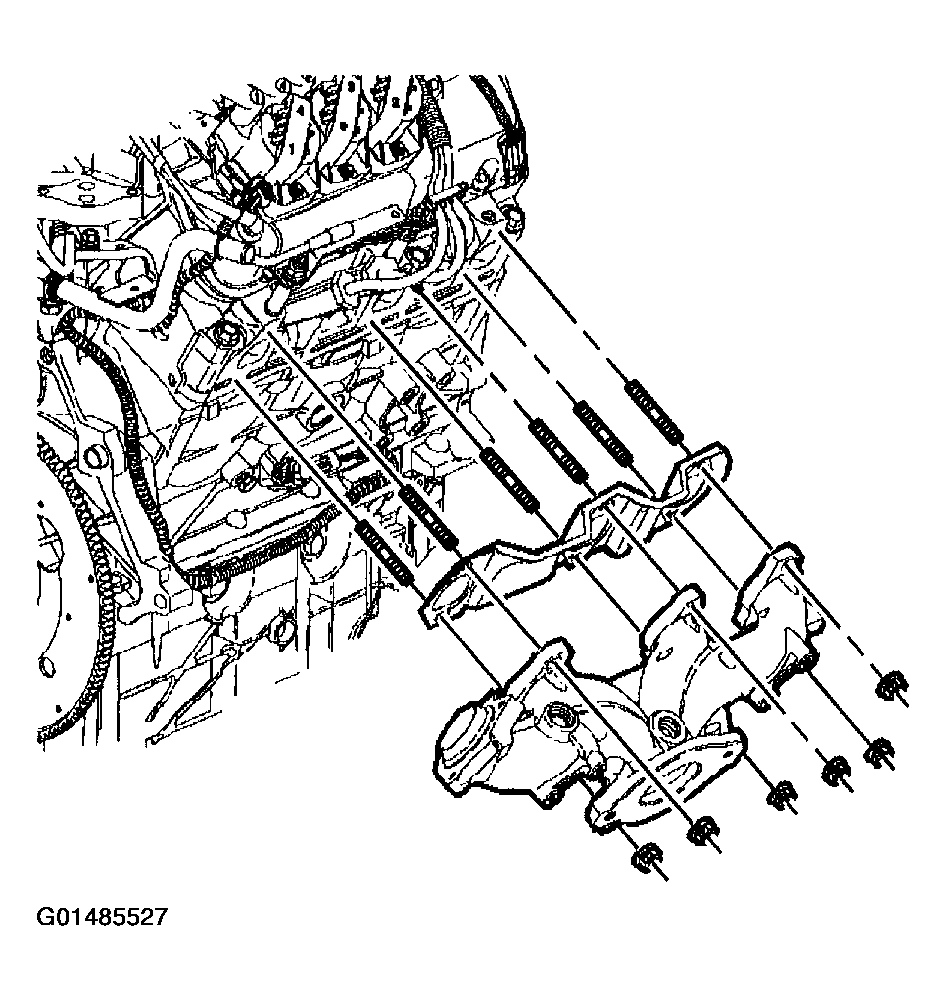

    Fig 3: Removing Exhaust Manifold Nuts, Gasket And Studs
    G01485527Courtesy of GENERAL MOTORS CORP.
