Exhaust Manifold Removal - Left

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the spark plug wires.
  2. Remove the spark plugs.
  3. Remove the exhaust manifold heat shield bolts.
  4. Remove the exhaust manifold heat shield.

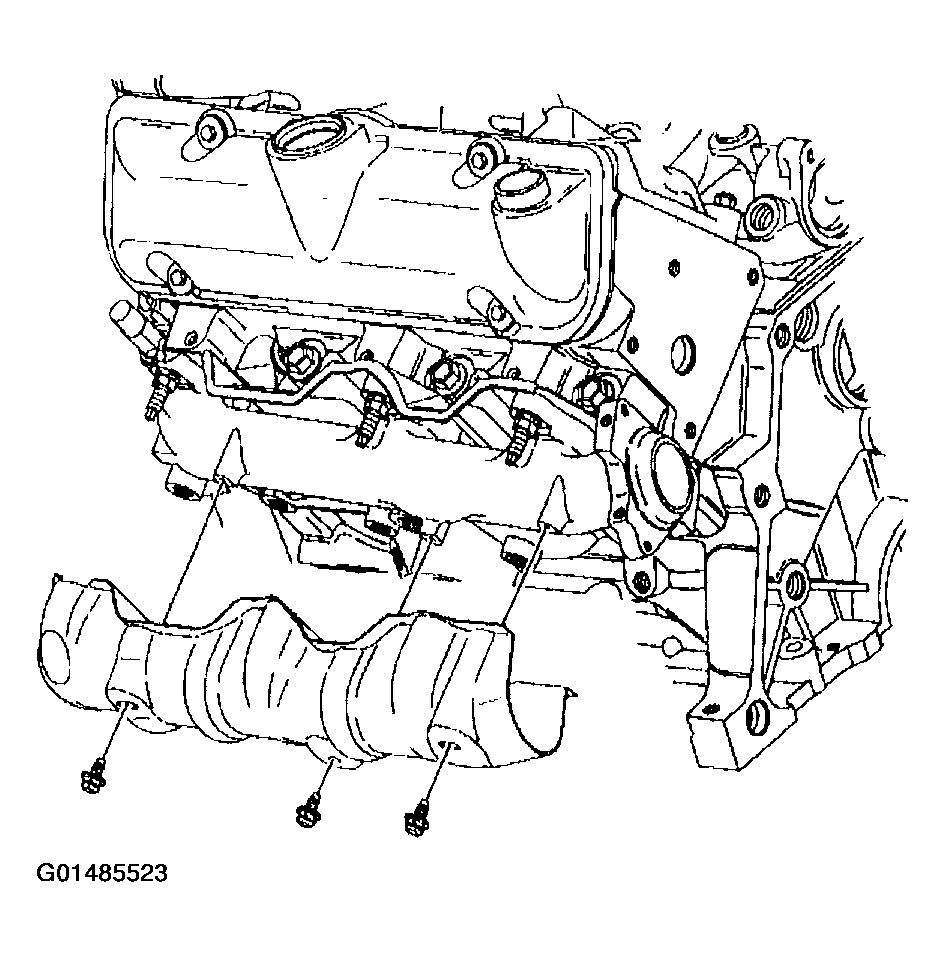

    Fig 1: Removing Exhaust Manifold Heat Shield Bolts And Exhaust Manifold Heat Shield
    G01485523Courtesy of GENERAL MOTORS CORP.
  5. Remove the exhaust manifold nuts.
  6. Remove the exhaust manifold.
  7. Remove the exhaust manifold gasket.
  8. Remove the exhaust studs, if required.

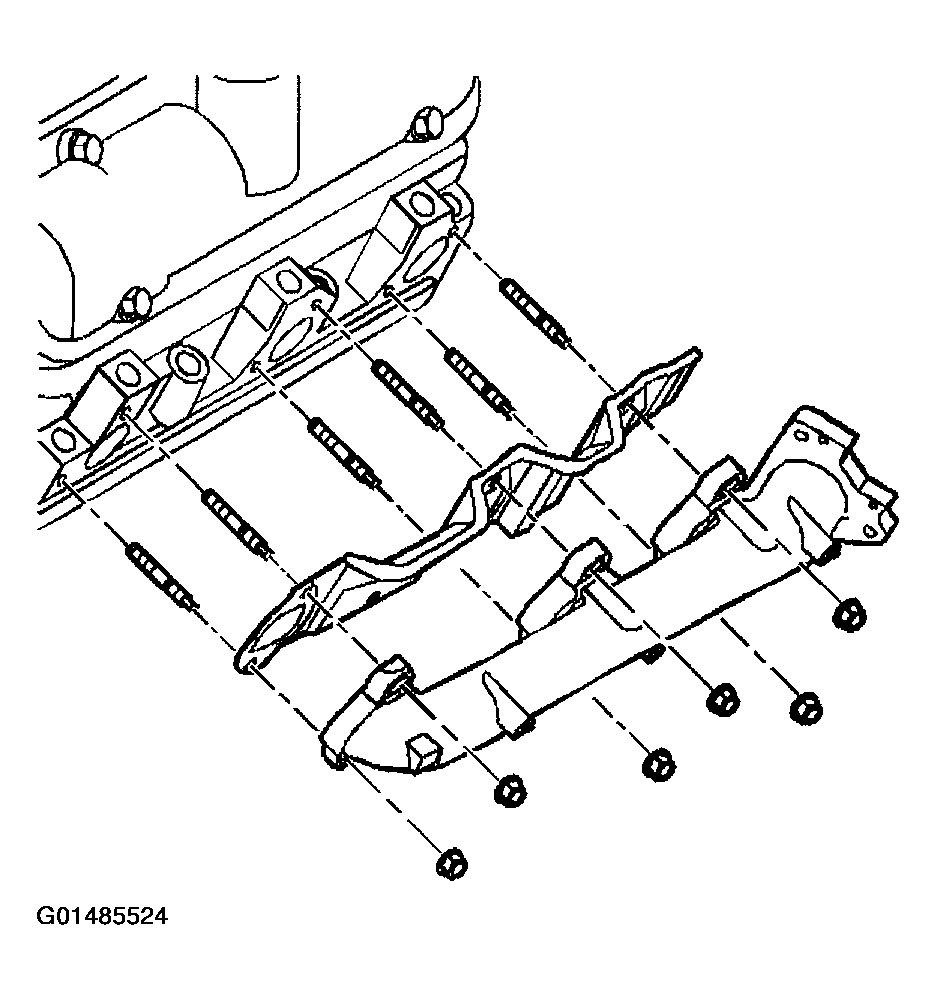

    Fig 2: Removing Exhaust Manifold Nuts, Gasket And Studs
    G01485524Courtesy of GENERAL MOTORS CORP.
