Exhaust Manifold Cleaning and Inspection

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect the exhaust manifold mating surface for flatness.
  2. Inspect the exhaust manifold for cracks or damage.

    Replace the exhaust manifold if necessary.

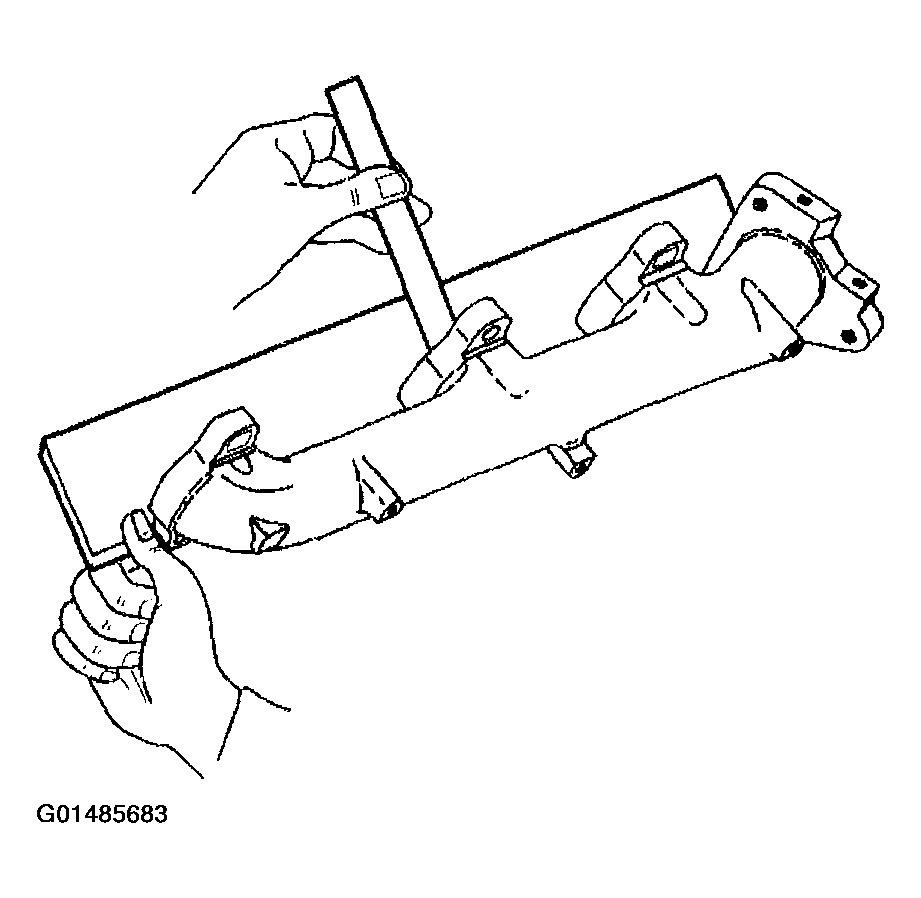

    Fig 1: Inspecting Exhaust Manifold
    G01485683Courtesy of GENERAL MOTORS CORP.
