Engine Mount Strut and Engine Lift Bracket Removal

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine mount strut and lift bracket bolts.
  2. Remove the engine mount strut and lift bracket.

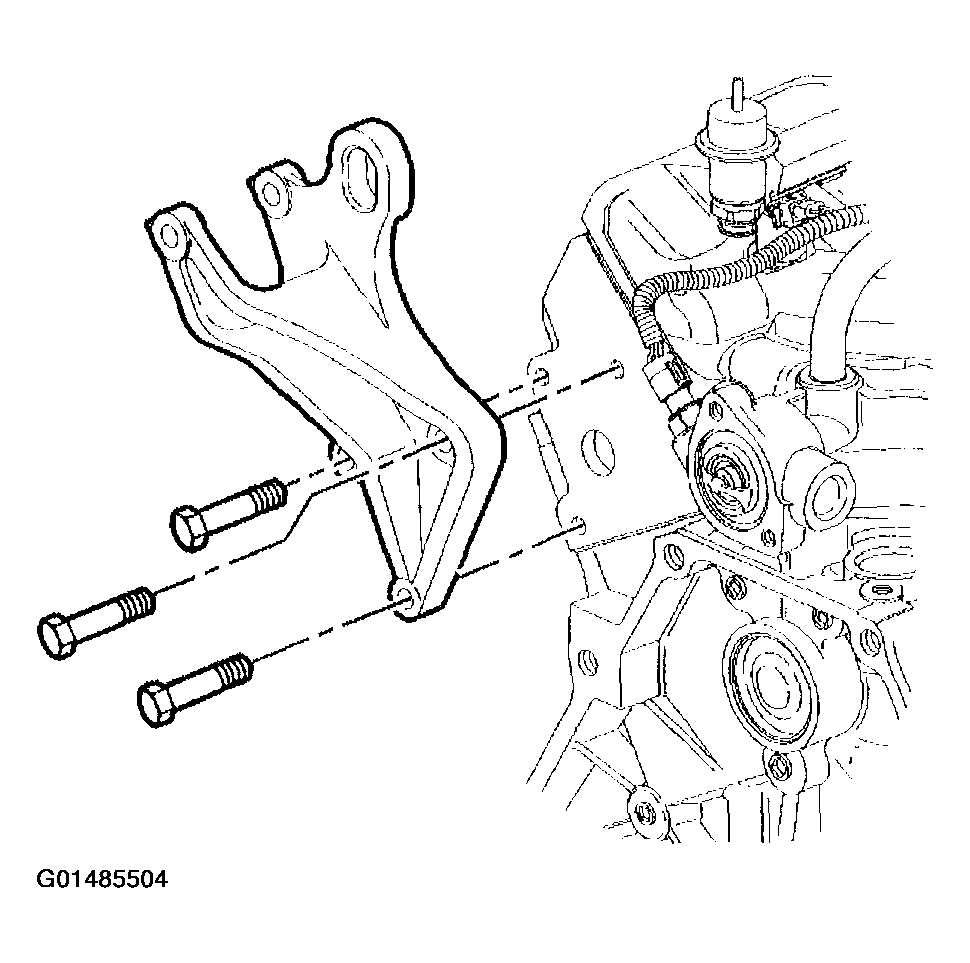

    Fig 1: Removing Engine Mount Strut And Lift Bracket And Bolts
    G01485504Courtesy of GENERAL MOTORS CORP.
