Engine Mount Strut and Air Conditioning Compressor Bracket Installation

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine mount strut and A/C Compressor bracket.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the engine mount strut and A/C Compressor bracket bolts.

    Tighten

    Tighten the engine mount strut and lift bracket bolts to 50 N.m (37 lb ft).

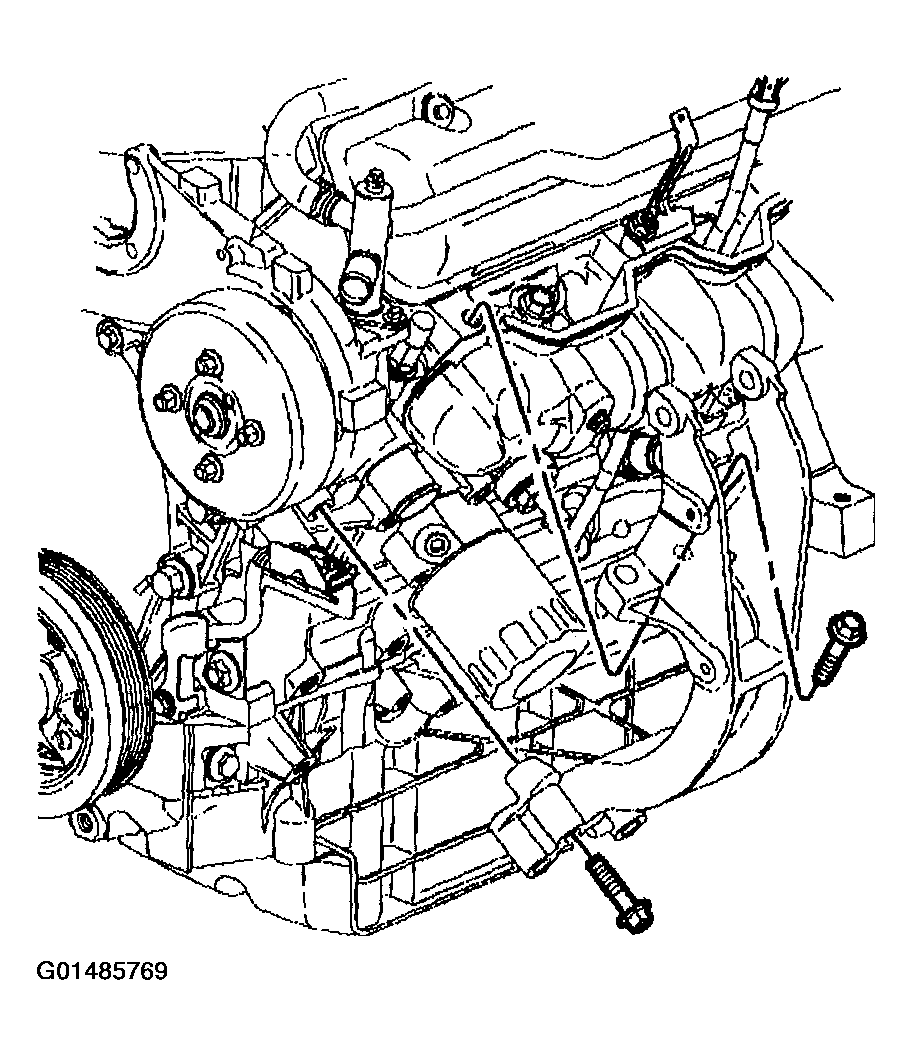

    Fig 1: Installing Engine Mount Strut And A/C Compressor Bracket And Bolts
    G01485769Courtesy of GENERAL MOTORS CORP.
