Engine Lift Bracket and Generator Bracket Removal

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the generator bracket bolts (1-3).
  2. Remove the generator bracket.
  3. Remove the front engine lift bracket.

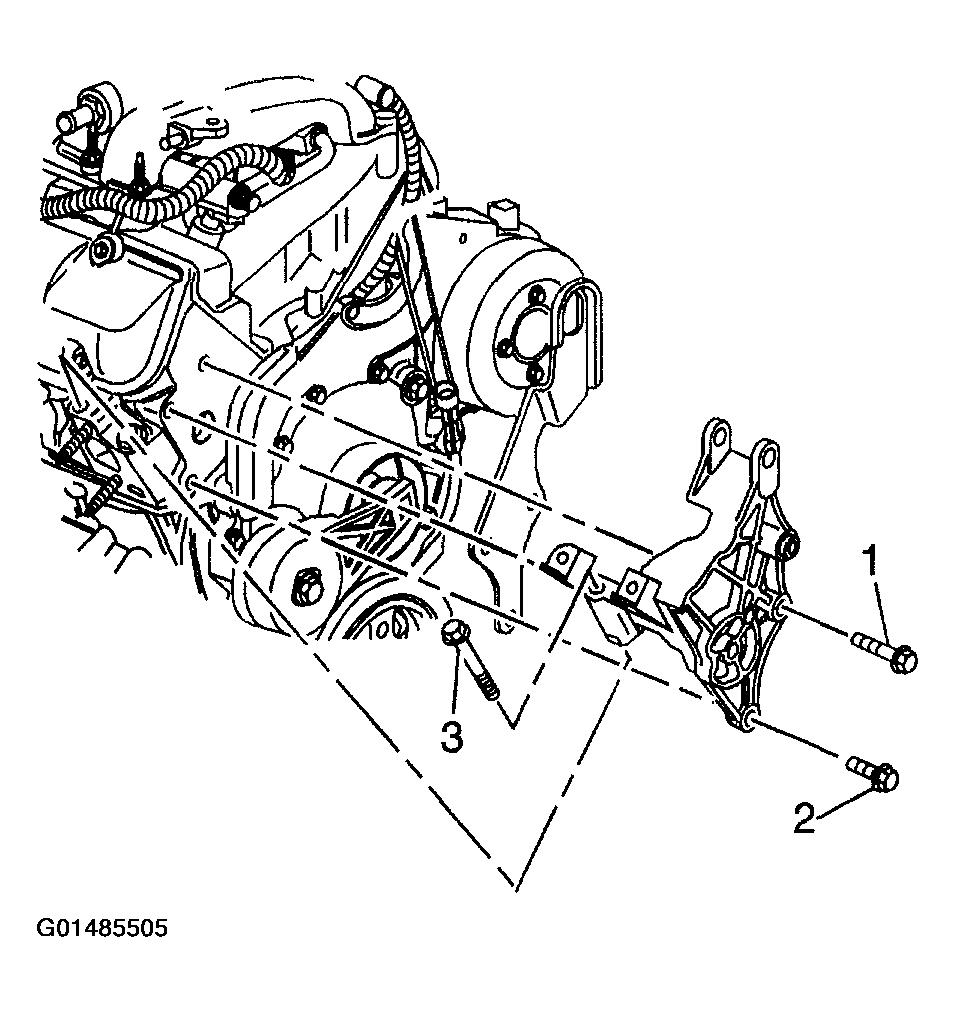

    Fig 1: Removing Generator Bracket Bolts And Generator
    G01485505Courtesy of GENERAL MOTORS CORP.
