Engine Lift Bracket and Generator Bracket Installation

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front engine lift hook.
  2. Install the generator bracket.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the generator bracket bolts.

    Tighten

    Tighten the generator bracket bolts in sequence (1, 2, 3) to 50 N.m (37 lb ft).

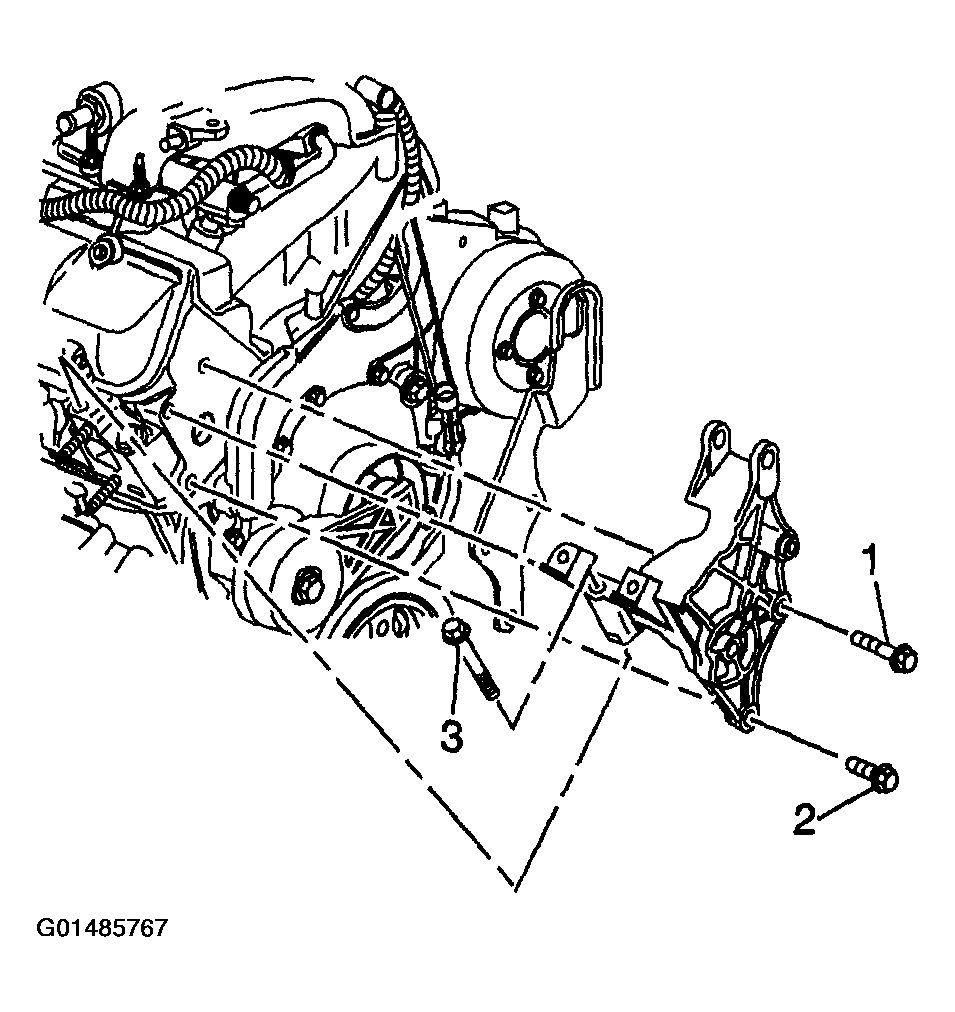

    Fig 1: Installing Generator Bracket And Bolts
    G01485767Courtesy of GENERAL MOTORS CORP.
