Engine Front Cover Removal

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crankshaft position sensor wiring bracket bolt.
  2. Remove the crankshaft position sensor wiring bracket.

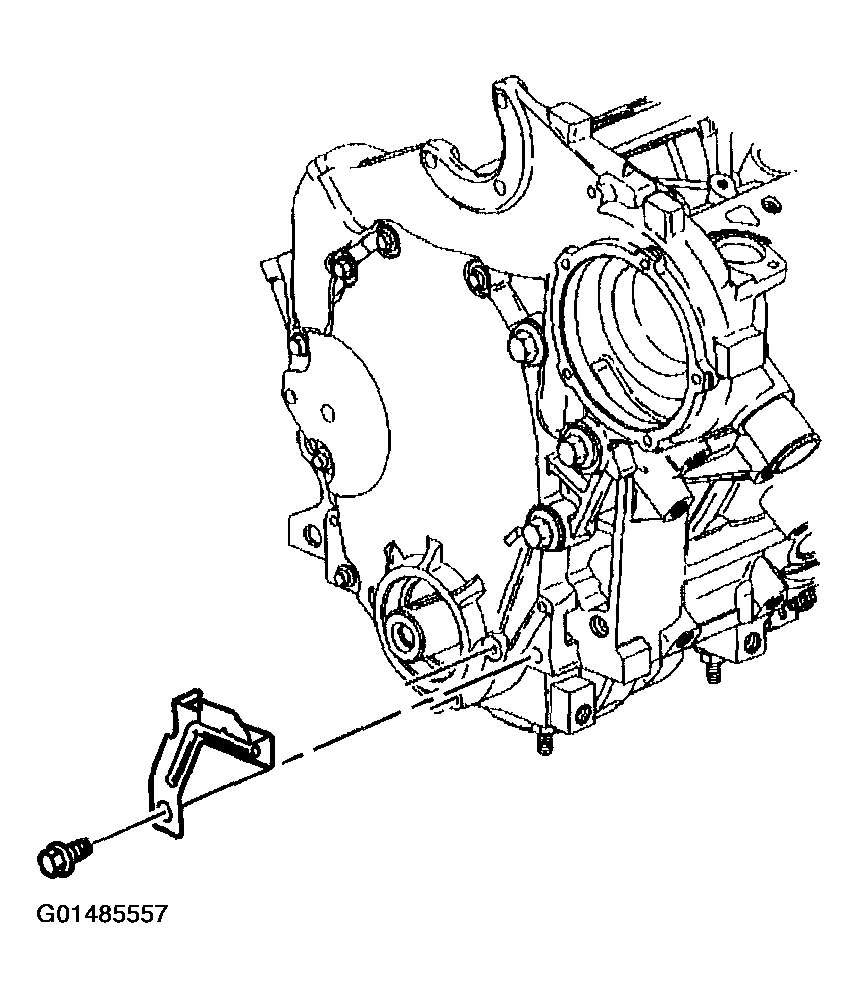

    Fig 1: Removing Crankshaft Position Sensor Wiring Bracket Bolt And Bracket
    G01485557Courtesy of GENERAL MOTORS CORP.
  3. Remove the engine front cover bolts (1), (2), and (3).
  4. Remove the engine front cover.
  5. Remove the engine front cover gasket.

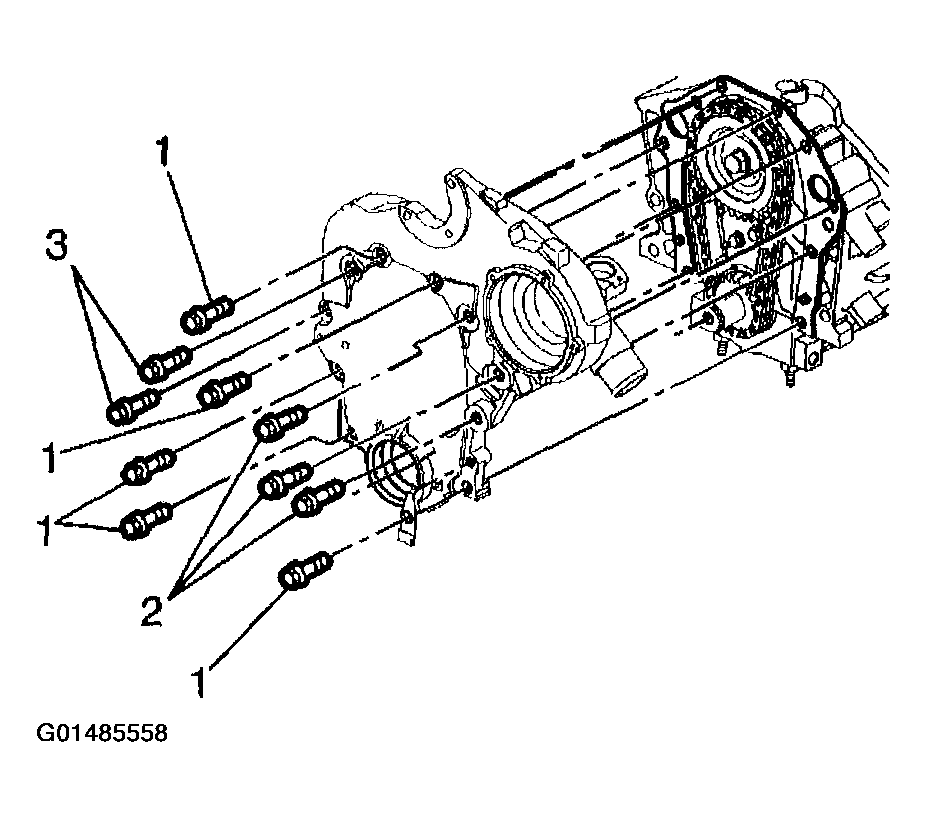

    Fig 2: Removing Engine Front Cover Bolts
    G01485558Courtesy of GENERAL MOTORS CORP.
