Engine Front Cover Installation

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine front cover gasket.
  2. Apply sealer GM P/N 12346004, (Canadian P/N 10953480) or equivalent to both sides of the lower tabs of the engine front cover gasket, and the engine front cover bolts.
    Fig 1: Installing Engine Front Cover Gasket
    G01485708Courtesy of GENERAL MOTORS CORP.
  3. Install the engine front cover.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the engine front cover bolts (2).

    Tighten

    Tighten the engine front cover bolts (2) to 55 N.m (41 lb ft).

  5. Install the engine front cover bolts (3).

    Tighten

    Tighten the engine front cover bolts (3) to 55 N.m (41 lb ft).

  6. Install the engine front cover bolts (1).

    Tighten

    Tighten the engine front cover bolts (1) to 27 N.m (20 lb ft).

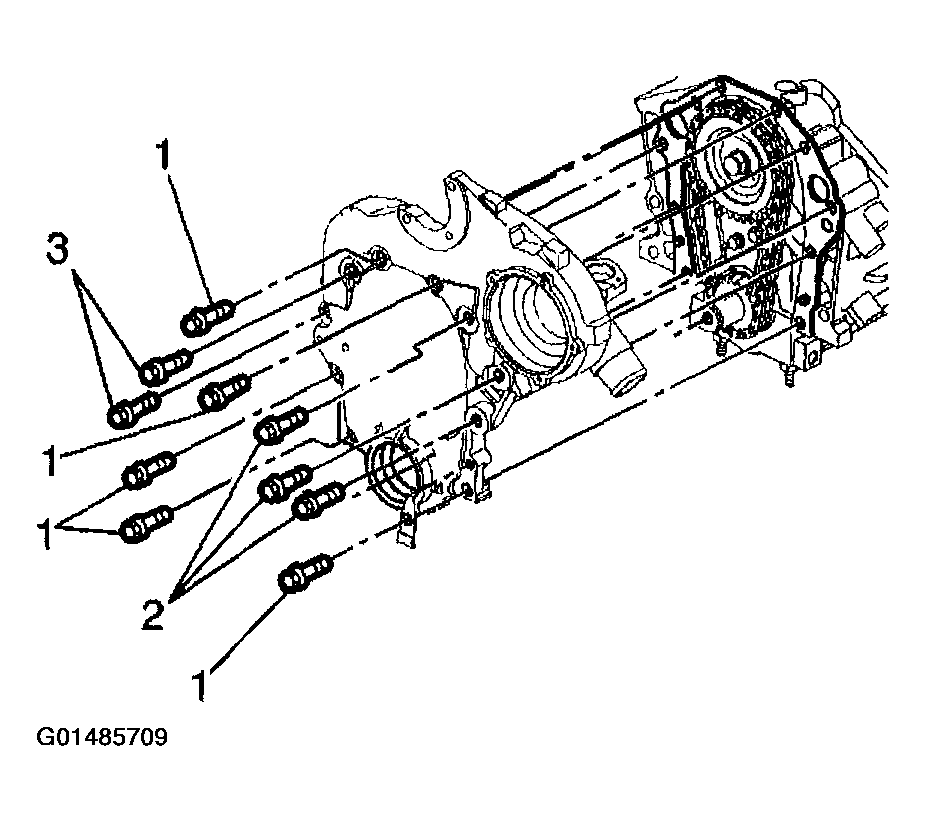

    Fig 2: Installing Engine Front Cover Bolts
    G01485709Courtesy of GENERAL MOTORS CORP.
  7. Install the crankshaft position sensor wiring bracket.
  8. Install the crankshaft position sensor wiring bracket bolt.

    Tighten

    Tighten the crankshaft position sensor wiring bracket bolt to 27 N.m (20 lb ft).

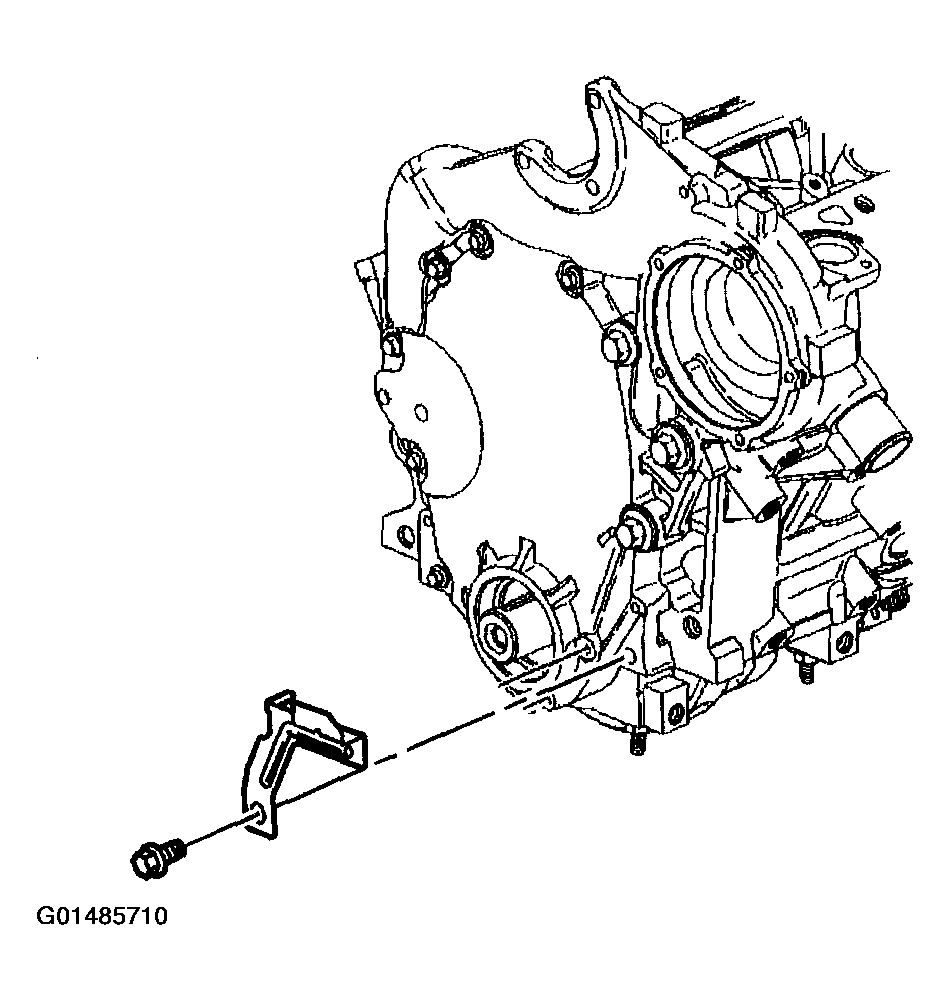

    Fig 3: Installing Crankshaft Position Sensor Wiring Bracket And Bolt
    G01485710Courtesy of GENERAL MOTORS CORP.
