Engine Flywheel Installation

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the flywheel.
  2. Install the flywheel retainer.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the flywheel bolts.

    Tighten

    Tighten the flywheel bolts to 71 N.m (52 lb ft).

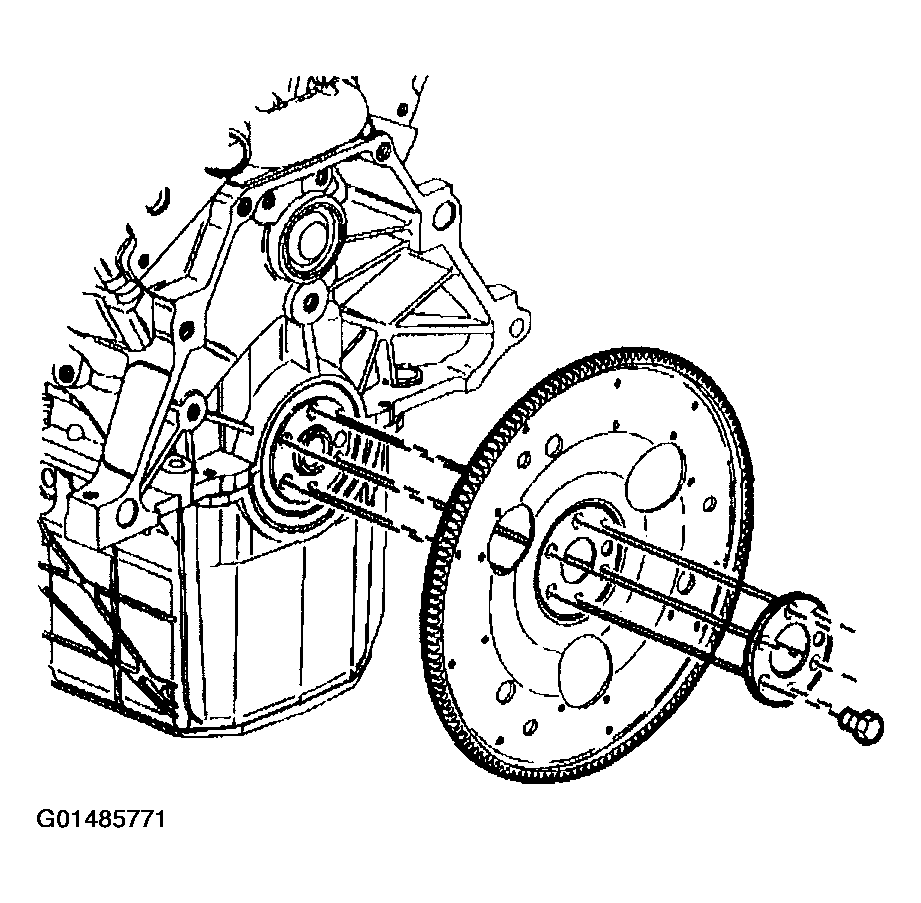

    Fig 1: Installing Flywheel, Retainer And Bolts
    G01485771Courtesy of GENERAL MOTORS CORP.
