Engine Block Disassemble

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

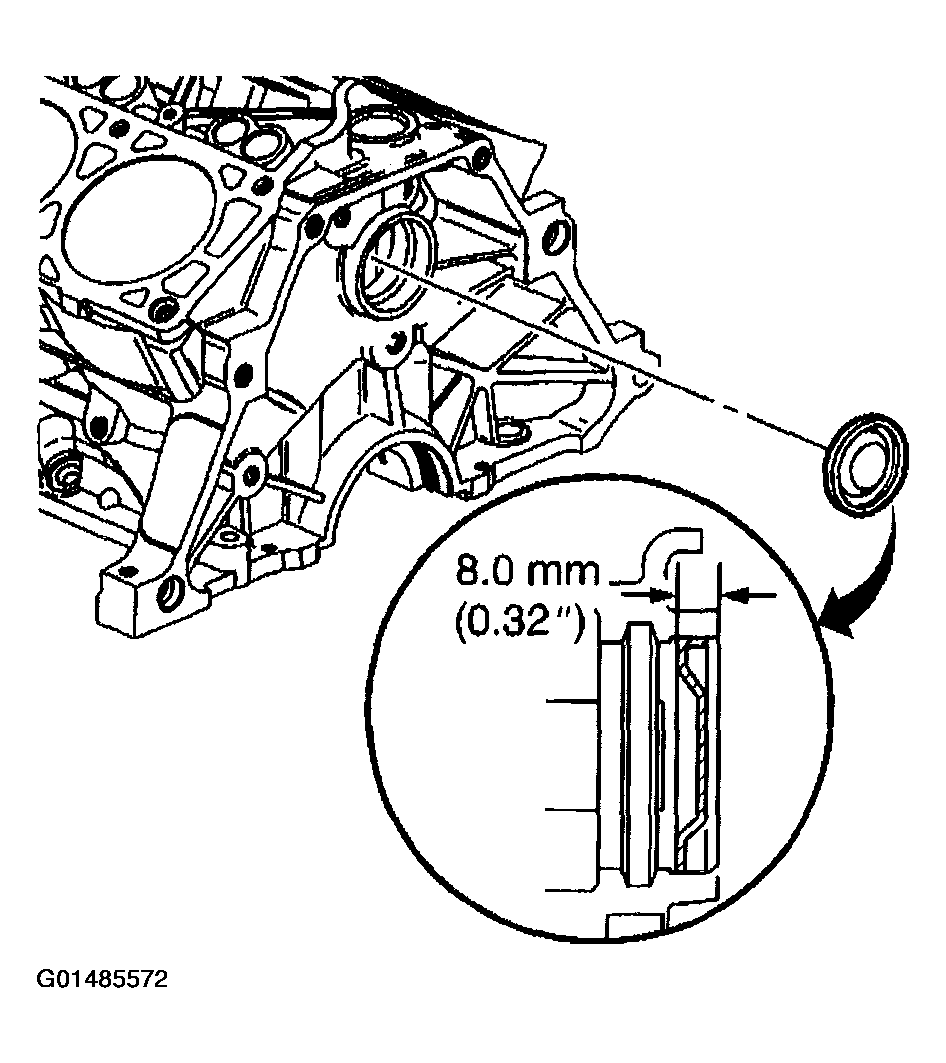

  1. Remove the camshaft rear bearing hole plug.
    Fig 1: Removing Camshaft Rear Bearing Hole Plug
    G01485572Courtesy of GENERAL MOTORS CORP.

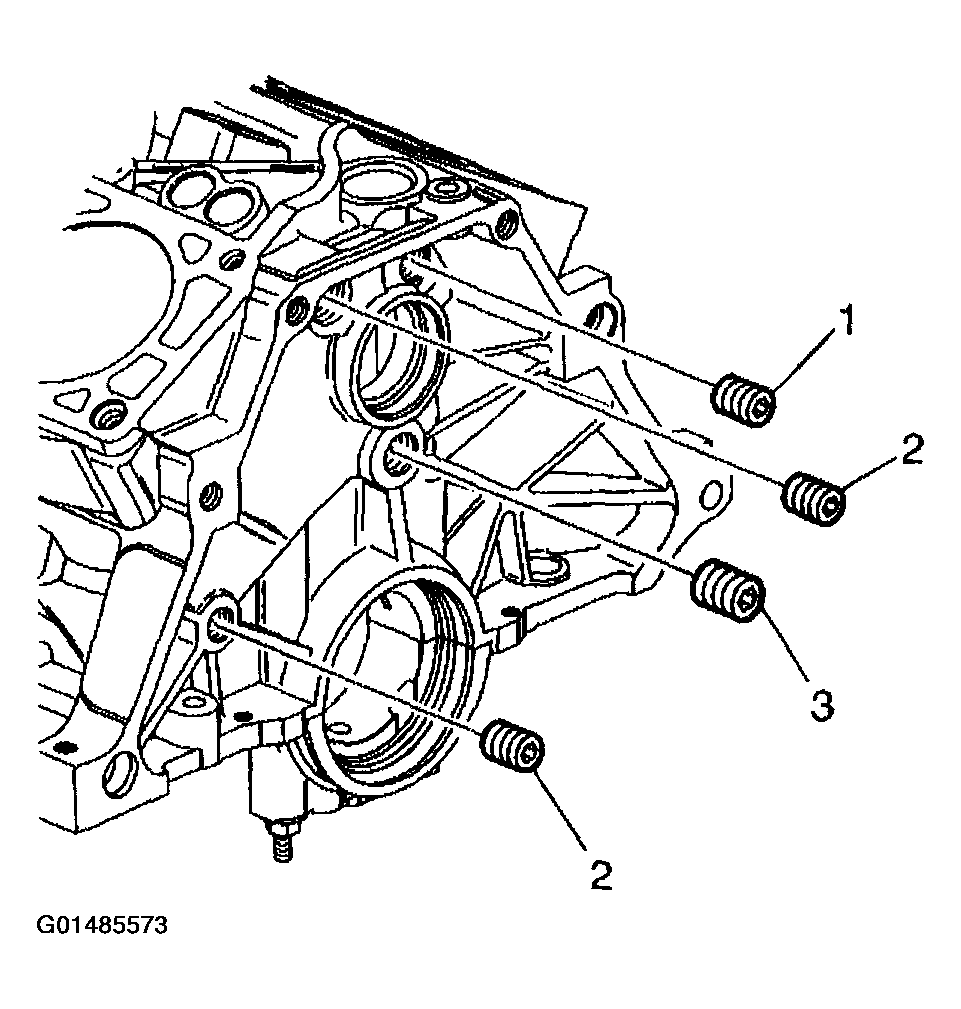

  2. Remove the rear oil gallery plugs (1, 2, 3).
    Fig 2: Removing Rear Oil Gallery Plugs
    G01485573Courtesy of GENERAL MOTORS CORP.

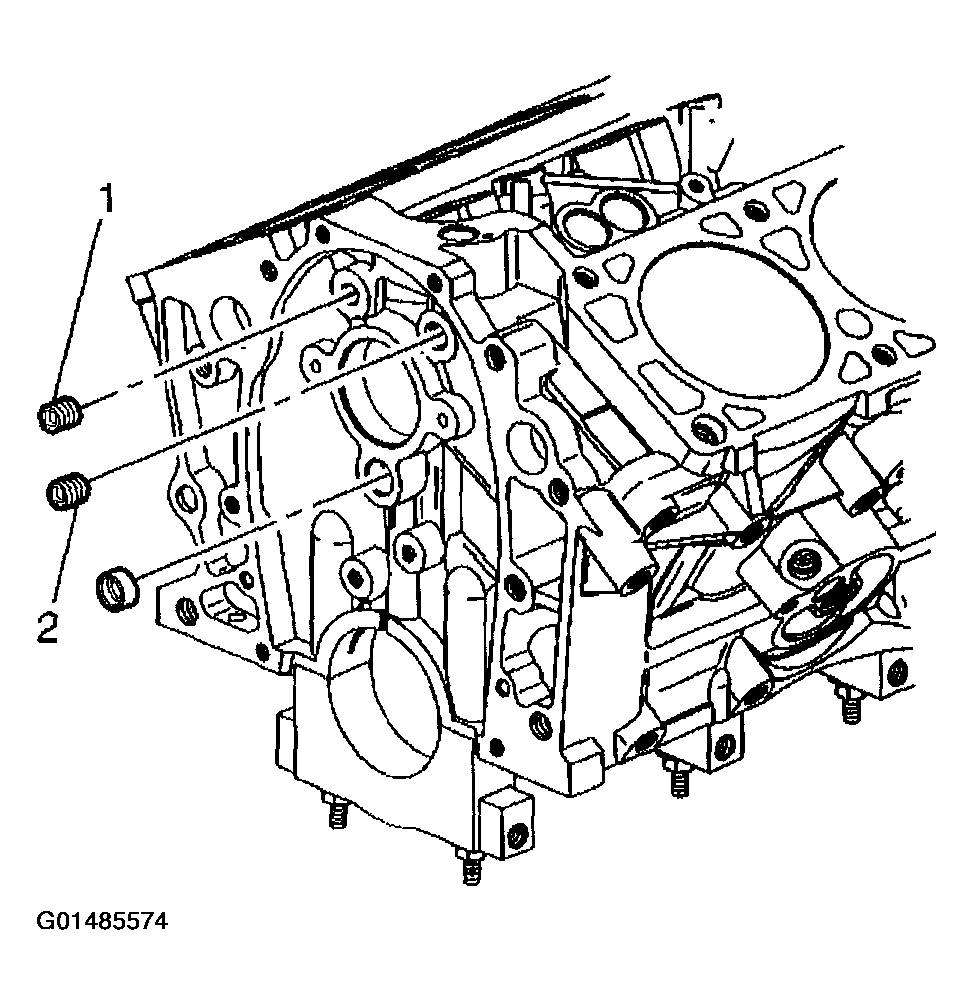

  3. Remove the front oil gallery plugs (1, 2).
  4. Remove all of the remaining engine block plugs.
    Fig 3: Removing Front Oil Gallery Plugs
    G01485574Courtesy of GENERAL MOTORS CORP.

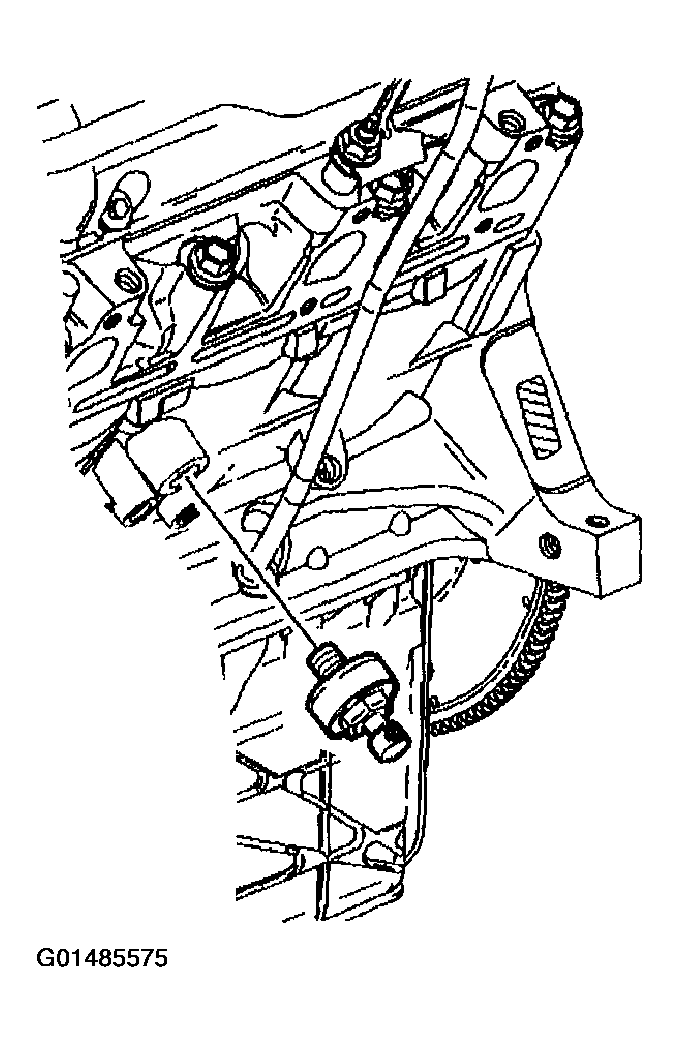

  5. Remove the knock sensor.
    Fig 4: Removing Knock Sensor
    G01485575Courtesy of GENERAL MOTORS CORP.

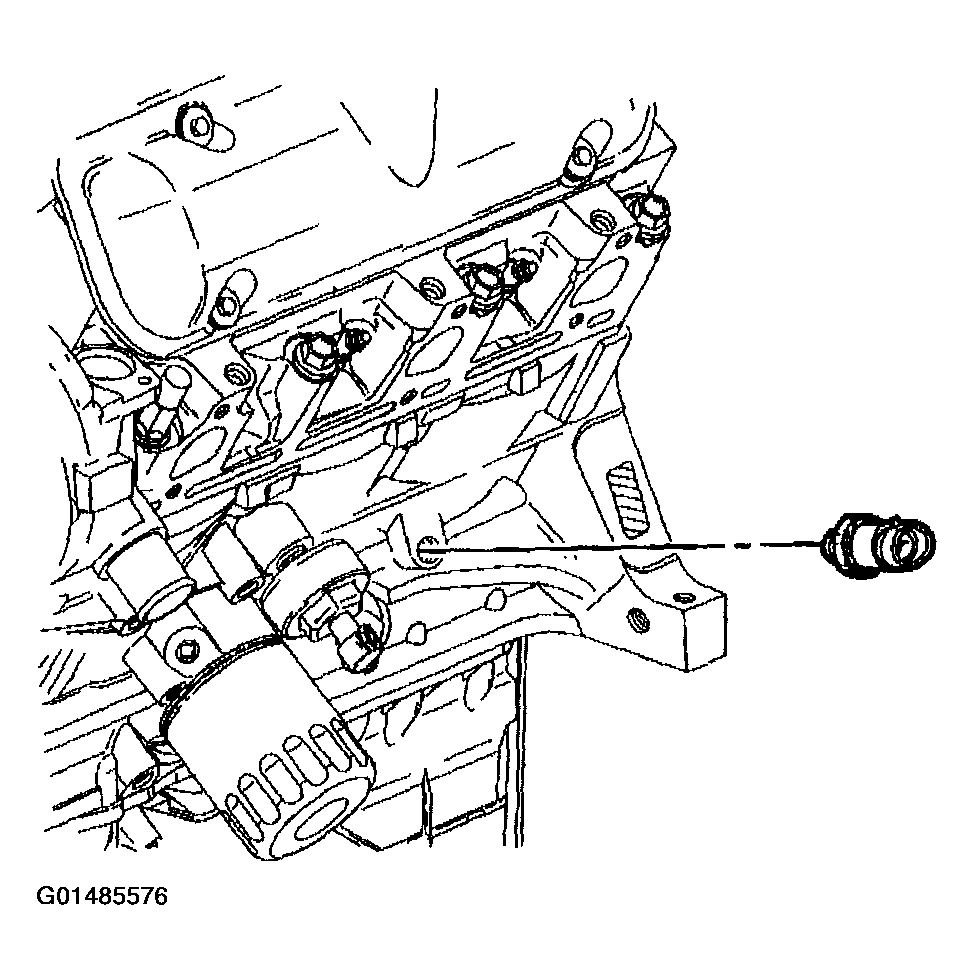

  6. Remove the engine oil pressure switch.
    Fig 5: Removing Engine Oil Pressure Switch
    G01485576Courtesy of GENERAL MOTORS CORP.
